Description

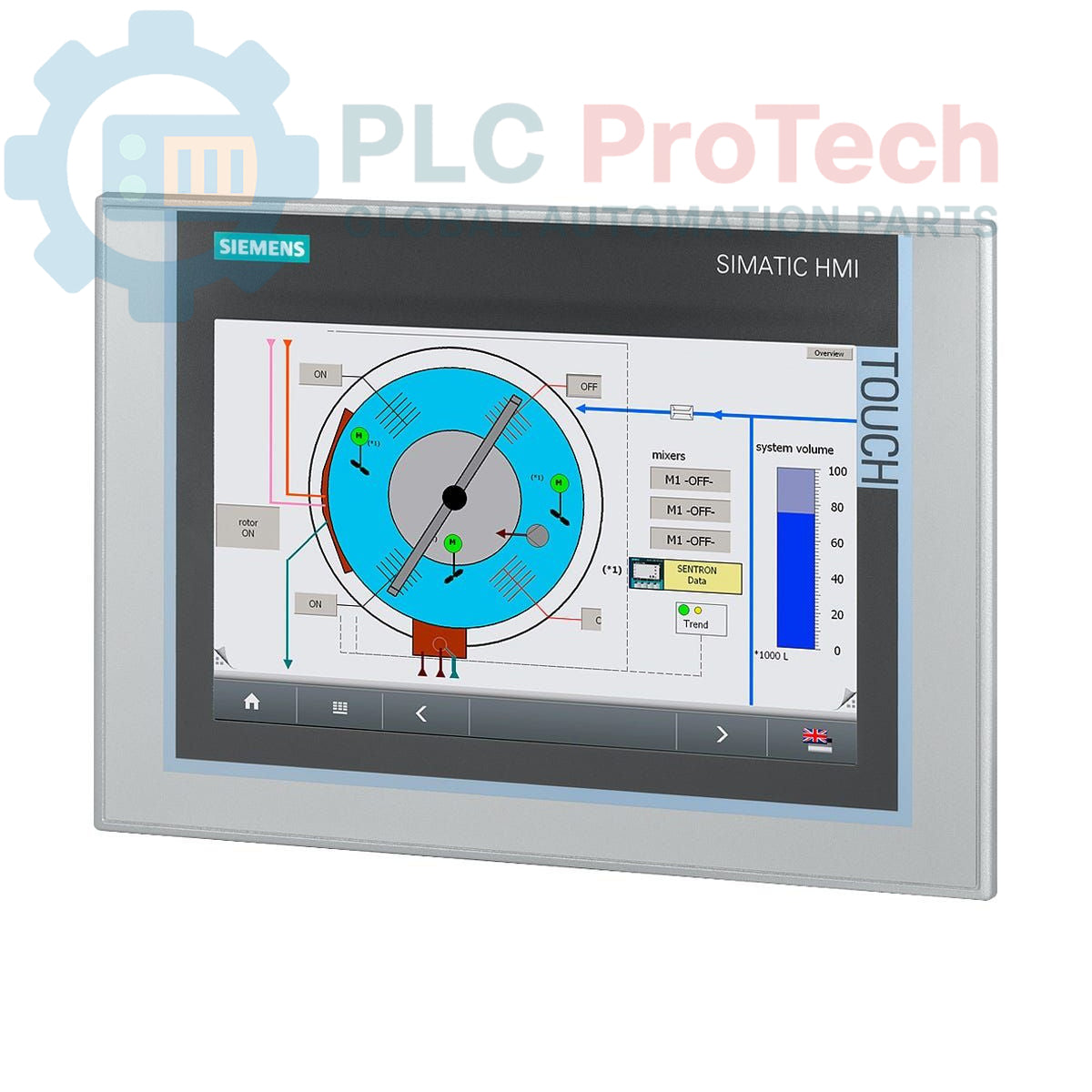

This Siemens 6AV7881-2AE00-8DF0 is a SIMATIC IPC277D Nanopanel PC designed for embedded machine-level visualization and control tasks. It features a 9-inch Touch TFT display, an Intel ATOM E660 (1.3 GHz) processor, 2 GB of RAM, and an 80 GB SATA Solid-State Drive. The unit is equipped with a comprehensive set of interfaces, including dual Gigabit Ethernet ports and high-current USB 2.0 ports, all within a compact, fanless design requiring a 24 V DC power supply. This specific configuration is supplied with Windows Embedded Standard 7 SP1 and does not include any pre-installed SIMATIC software.

Features

• 9-inch widescreen TFT display with touch functionality
• Intel ATOM E660 processor operating at 1.3 GHz
• 2 GB of integrated RAM for application processing
• 80 GB Solid-State Drive (SSD) for reliable, fast-access storage
• Dual 10/100/1000 Mbps Ethernet interfaces for network connectivity
• Three high-current USB 2.0 ports for peripheral devices
• One serial COM1 port for legacy device communication
• Integrated CompactFlash slot for additional storage or data transfer
• Operates on a standard 24 V DC industrial power supply

Applications

• Machine-level Human Machine Interface (HMI)
• Process visualization and data logging
• Small-scale SCADA client applications
• Embedded control and gateway functions
• Factory automation and assembly line monitoring

Technical Specifications

Installation Guidelines

1. 1 De-energize Equipment: Before installation, completely disconnect and lock out all power sources to the enclosure or machine where the Panel PC will be installed. Verify the absence of voltage.
2. 2 Prepare Panel Cutout: Verify that the panel cutout dimensions match the requirements for the IPC277D. Ensure the mounting surface is clean, flat, and rigid enough to support the unit.
3. 3 Mount the Unit: Insert the Panel PC into the cutout from the front of the panel. Secure it from the rear using the provided mounting clamps, tightening them evenly to the specified torque to ensure a proper seal.
4. 4 Connect Protective Earth: Connect the protective earth (PE) terminal on the unit to the main panel ground using a low-impedance conductor of the appropriate gauge. This is critical for safety and noise immunity.
5. 5 Connect Power Supply: Connect a stable, correctly rated 24 V DC power supply to the power input terminals. Ensure correct polarity is observed.
6. 6 Connect Interfaces: Connect Ethernet, USB, and serial cables as required by the application. Ensure all cables are properly secured and routed to prevent strain on the connectors. Power can now be restored to the panel for commissioning.
