Description

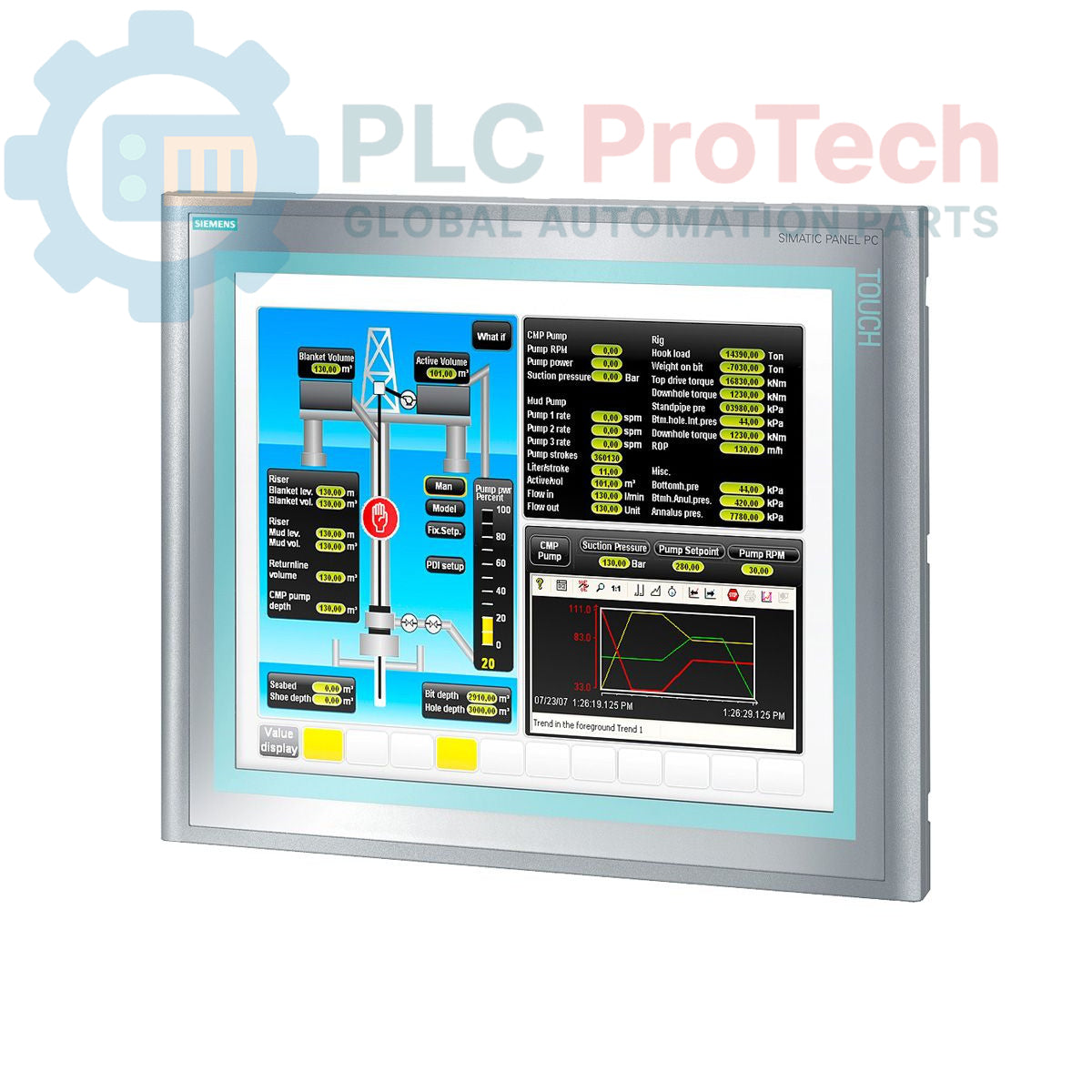

The Siemens 6AV7883-7AG20-6ER0 is an industrial panel PC from the SIMATIC HMI IPC 477C PRO series, designed for demanding visualization and control tasks. This unit features a 19-inch touch display and is fully enclosed to meet a stringent IP65 protection rating, making it suitable for deployment in harsh industrial environments. It is powered by an Intel Core 2 Duo 1.2 GHz processor, equipped with 2 GB of DDR3 RAM, and includes a 50 GB high-endurance SATA SSD for reliable, fast-booting operation. The system comes pre-installed with Windows Embedded Standard 7 and includes licenses for WinCC flexible RT and WinAC RTX F, providing a comprehensive platform for HMI and real-time control applications.

Features

• 19-inch resistive touch display for operator interaction.
• Fully enclosed, fanless design with an IP65 protection rating.
• Powered by an Intel Core 2 Duo processor at 1.2 GHz.
• Equipped with 2 GB of DDR3 system memory.
• Includes a 50 GB high-endurance SATA Solid-State Drive (SSD).
• Pre-installed with Windows Embedded Standard 7 operating system.
• Bundled software licenses: WinCC flexible RT 128 PowerTags and WinAC RTX F.
• Features dual 1 Gbit Ethernet ports and an integrated PROFINET (IE) interface.
• Provides four rear-mounted USB ports for peripheral connectivity.

Applications

• Machine-level operator control and monitoring (HMI).
• Process visualization and data acquisition (SCADA).
• PC-based automation and real-time control.
• Deployment in food and beverage, pharmaceutical, and automotive manufacturing.
• Applications requiring a rugged, all-in-one, wash-down capable computing solution.

Technical Specifications

Installation Guidelines

1. 1 Verify that the selected mounting location (e.g., swing arm, pedestal) is structurally sound and can support the weight of the panel PC (11.00 kg).
2. 2 De-energize all related power sources at the main disconnect and apply LOTO procedures to prevent accidental startup. Verify the absence of voltage with a calibrated meter.
3. 3 Securely attach the panel PC to the mounting system using the specified hardware and torque settings. Ensure all connections are mechanically stable.
4. 4 Connect the main power supply cable to the unit's power input connector. Ensure the power source matches the device's electrical specifications.
5. 5 Connect PROFINET, Ethernet, and any required USB peripherals to the rear ports. Use appropriately shielded cables and ensure proper strain relief.
6. 6 Perform a final inspection of all mechanical and electrical connections. Remove LOTO devices and re-energize the system according to standard procedures.
