Description

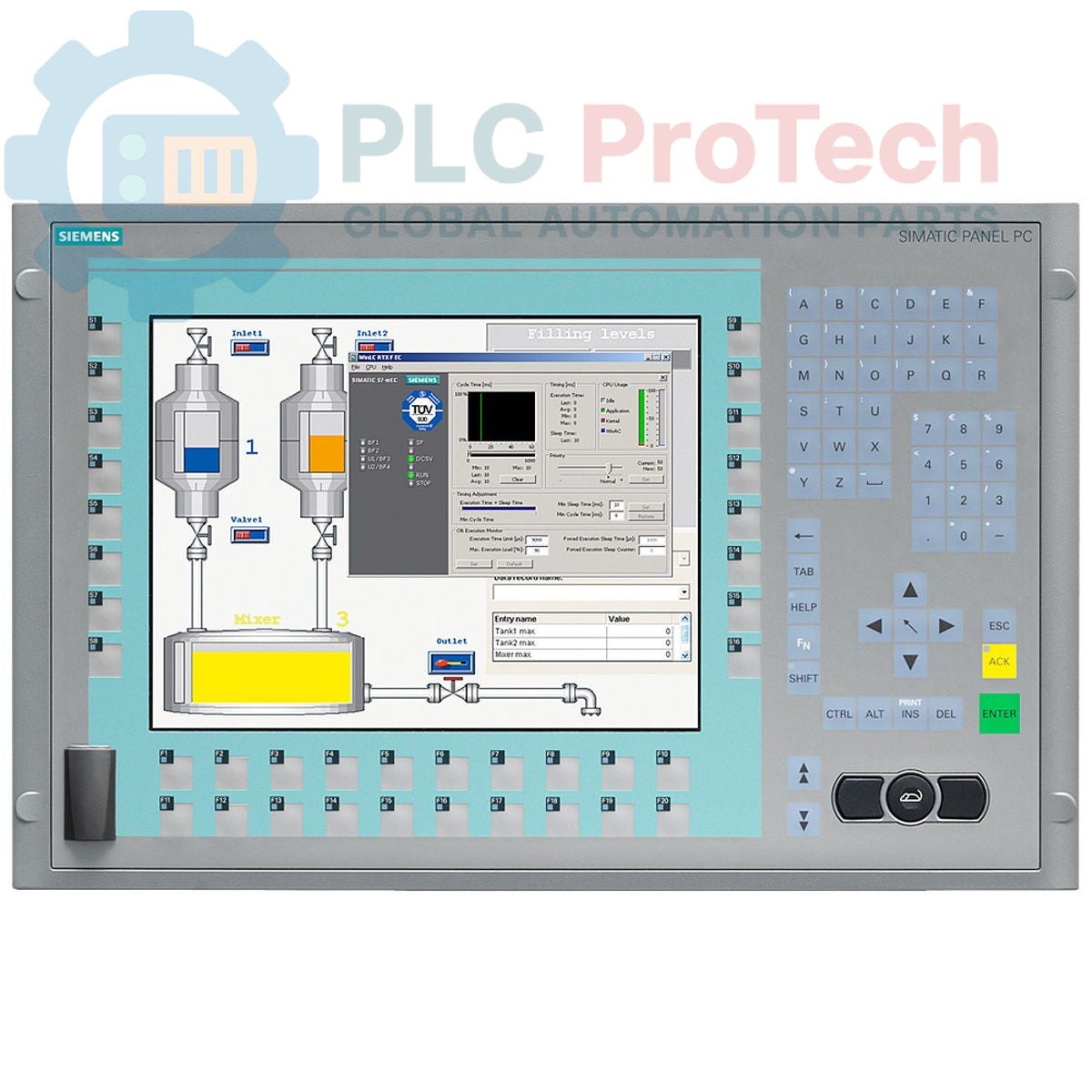

The Siemens 6AV7884-1AH30-6BM0 is a SIMATIC HMI IPC 477C series industrial panel PC, delivered as a bundled solution for demanding visualization and control tasks. This unit features a 12-inch key-operated display with an 800 x 600 resolution. It is powered by an Intel Core 2 Duo 1.2 GHz processor and is equipped with 4 GB of DDR3 RAM and a 50 GB high-endurance SATA solid-state drive (SSD). The system comes pre-installed with Windows Embedded Standard 2009, along with SIMATIC WinCC flexible RT 2048 PT and WinAC RTX software, providing a ready-to-deploy platform for HMI and real-time control applications. Connectivity is supported through integrated PROFINET, PROFIBUS DP, and multiple USB ports.

Features

• 12-inch key-operated display with 800 x 600 pixel resolution.
• Intel Core 2 Duo processor operating at 1.2 GHz.
• 4 GB of DDR3 system memory.
• 50 GB high-endurance SATA solid-state drive (SSD).
• Integrated communication via 2x 1 Gbit PROFINET (IE) and 1x PROFIBUS DP 12 ports.
• Total of 5 USB ports (4 rear, 1 front) for peripheral connectivity.
• Pre-installed with Windows Embedded Standard 2009, WinCC flexible RT 2048 PT, and WinAC RTX.

Applications

• Machine-level operator control and monitoring.
• Data acquisition, logging, and recipe management.
• Process visualization in manufacturing and production lines.
• PC-based automation systems requiring integrated HMI and real-time control.

Technical Specifications

Installation Guidelines

1. 1 Verify that the panel cutout dimensions match the unit's requirements for a secure and proper fit. Ensure adequate clearance for ventilation and cable routing.
2. 2 De-energize the main electrical enclosure and verify the absence of voltage using a calibrated multimeter. Apply appropriate LOTO devices.
3. 3 Insert the Panel PC into the cutout and secure it using the provided mounting clamps. Tighten the clamps evenly to the manufacturer's specified torque to ensure a proper seal.
4. 4 Connect the Protective Earth (PE) terminal to the cabinet's main ground bus using a low-impedance conductor. This is a critical safety connection.
5. 5 Connect the DC power supply wiring to the designated terminals, ensuring correct polarity. Use appropriately sized conductors and overcurrent protection.
6. 6 Connect PROFINET, PROFIBUS, and any required USB cables. Ensure proper shielding and grounding practices are followed for all communication cables to minimize noise interference.
7. 7 After verifying all connections are secure and correct, remove LOTO devices and re-energize the cabinet to commission the unit.
