Description

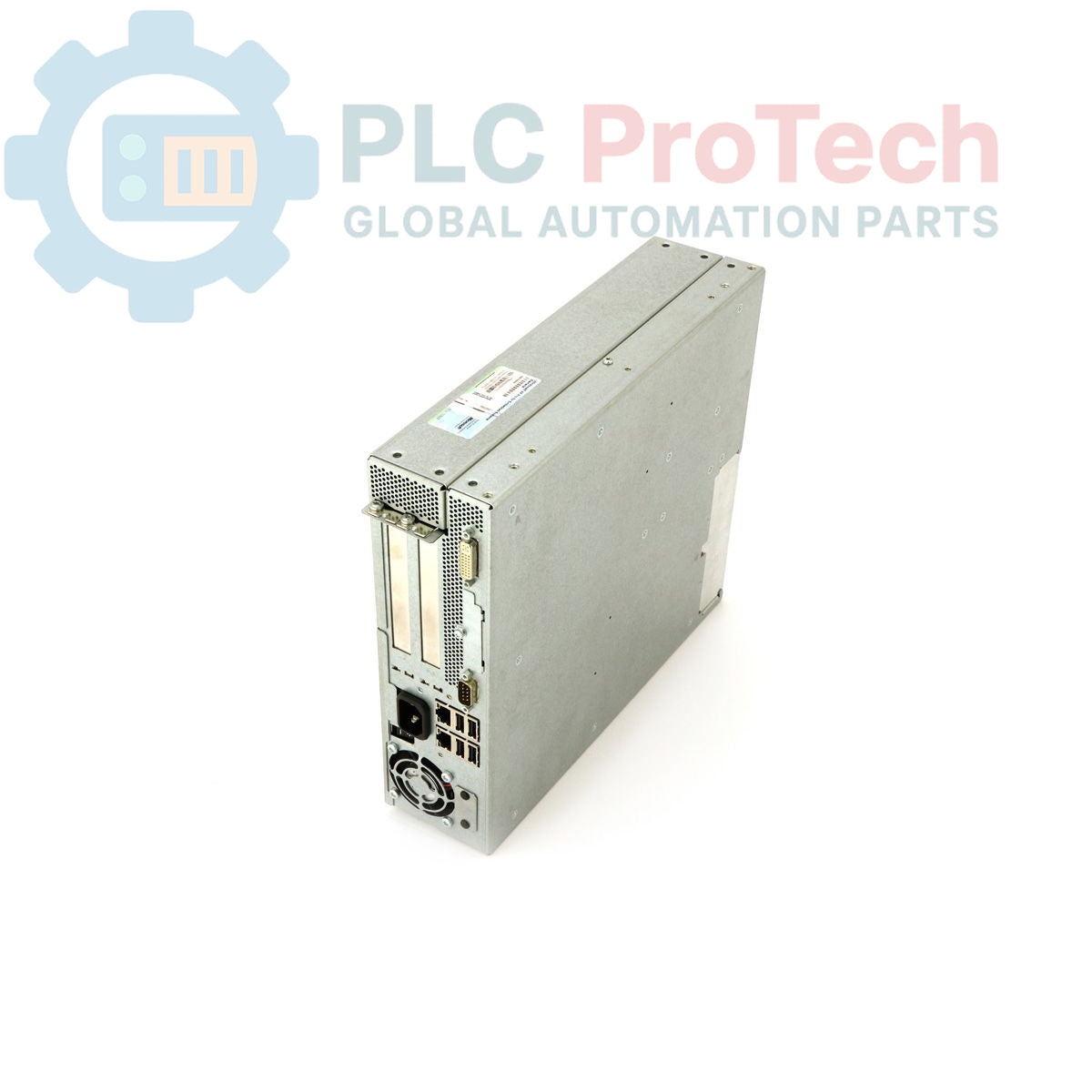

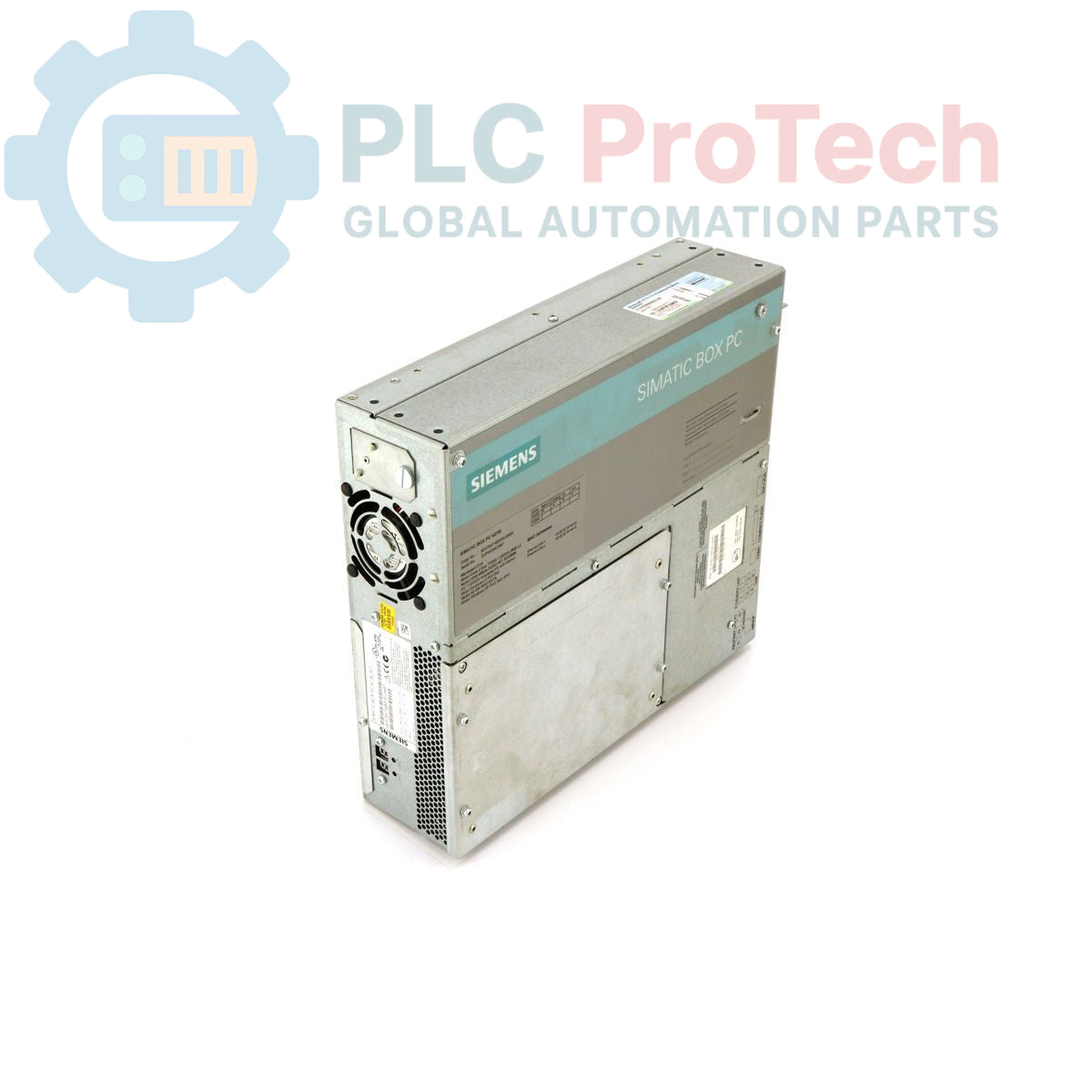

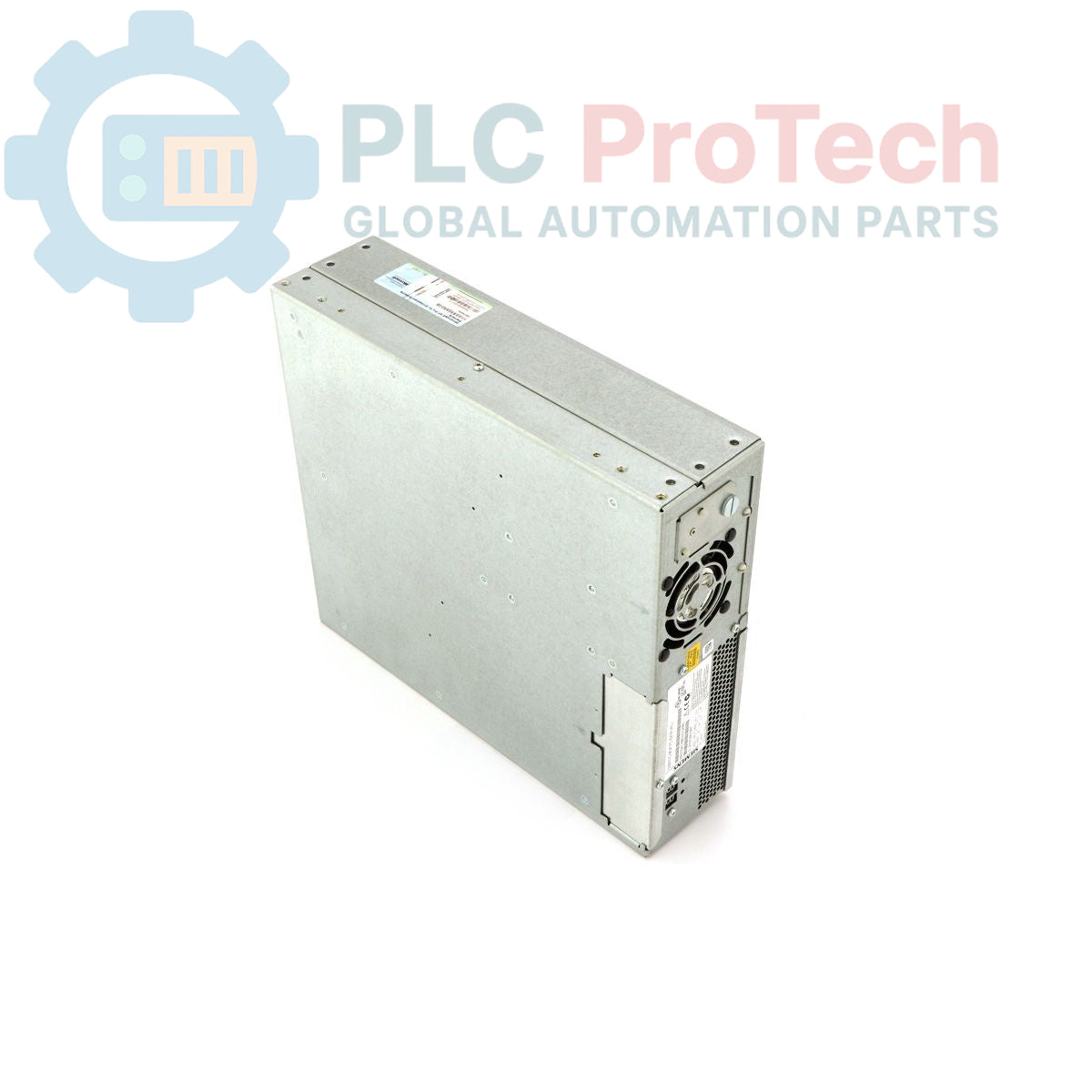

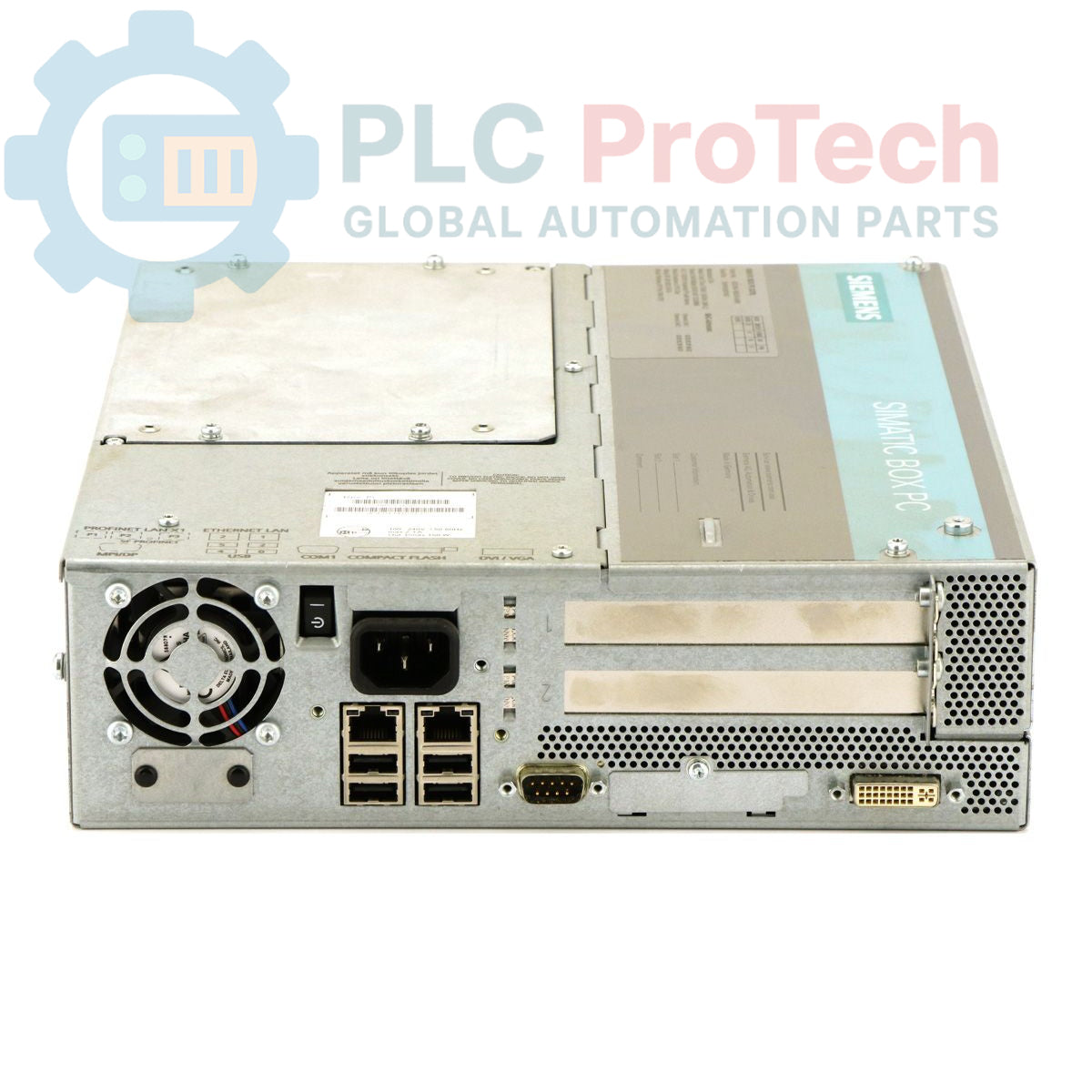

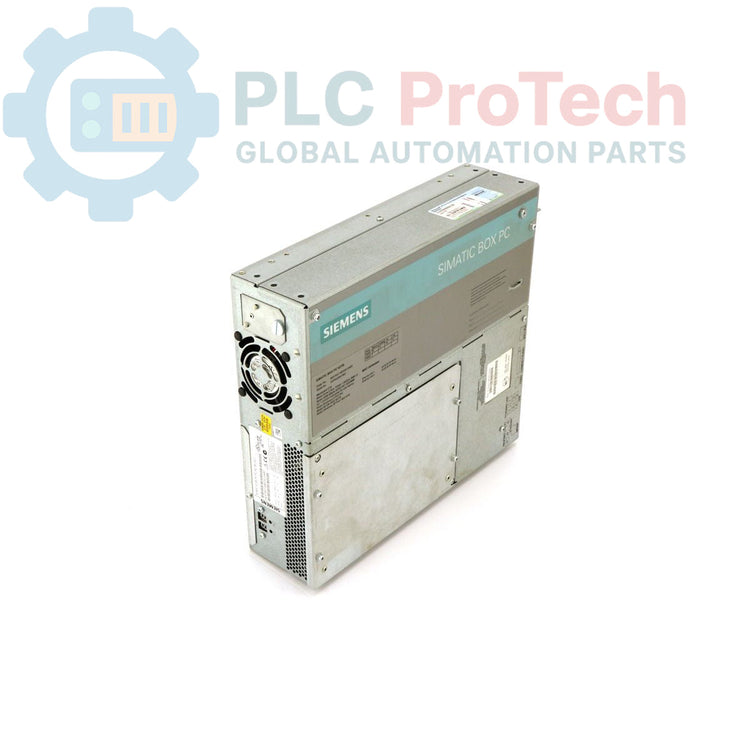

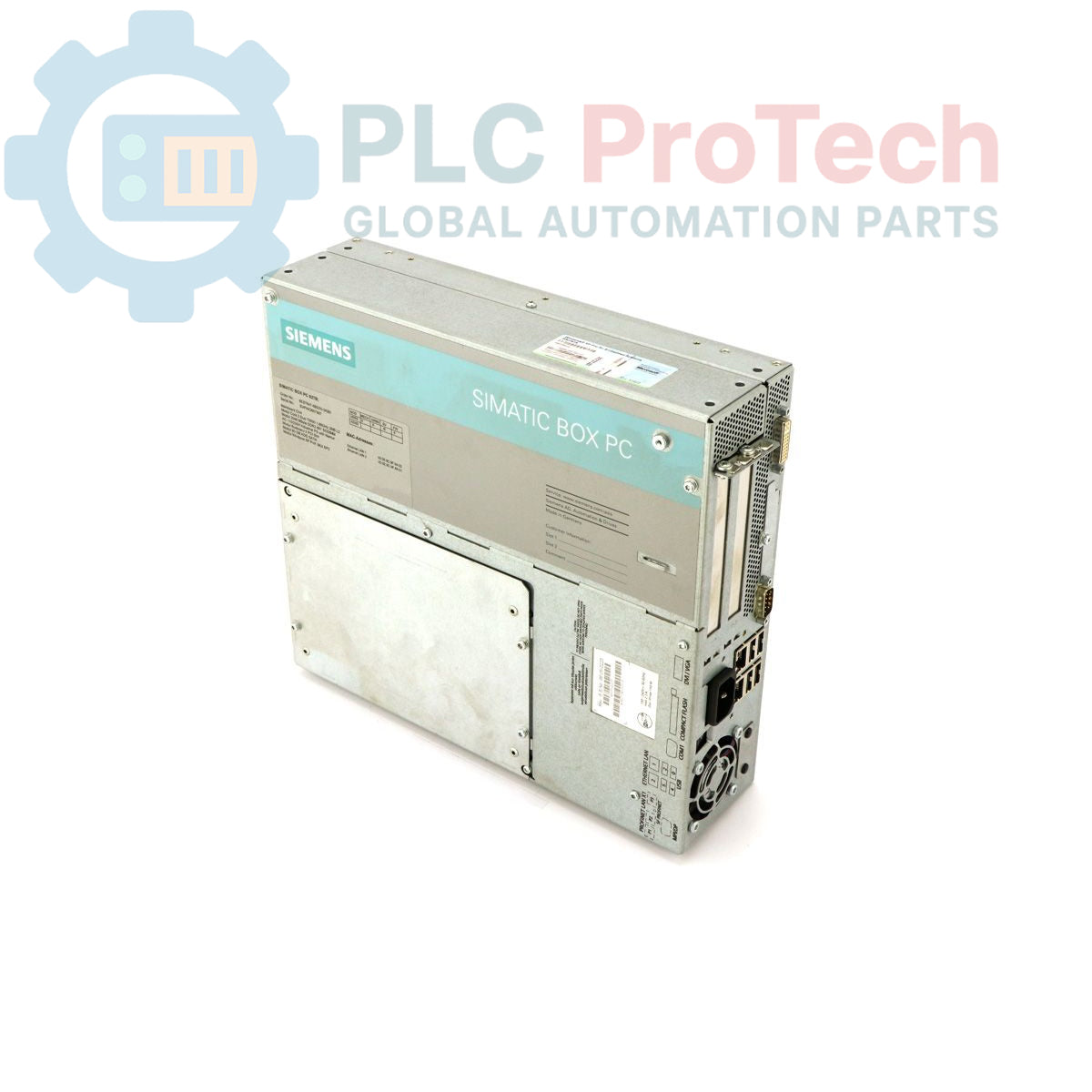

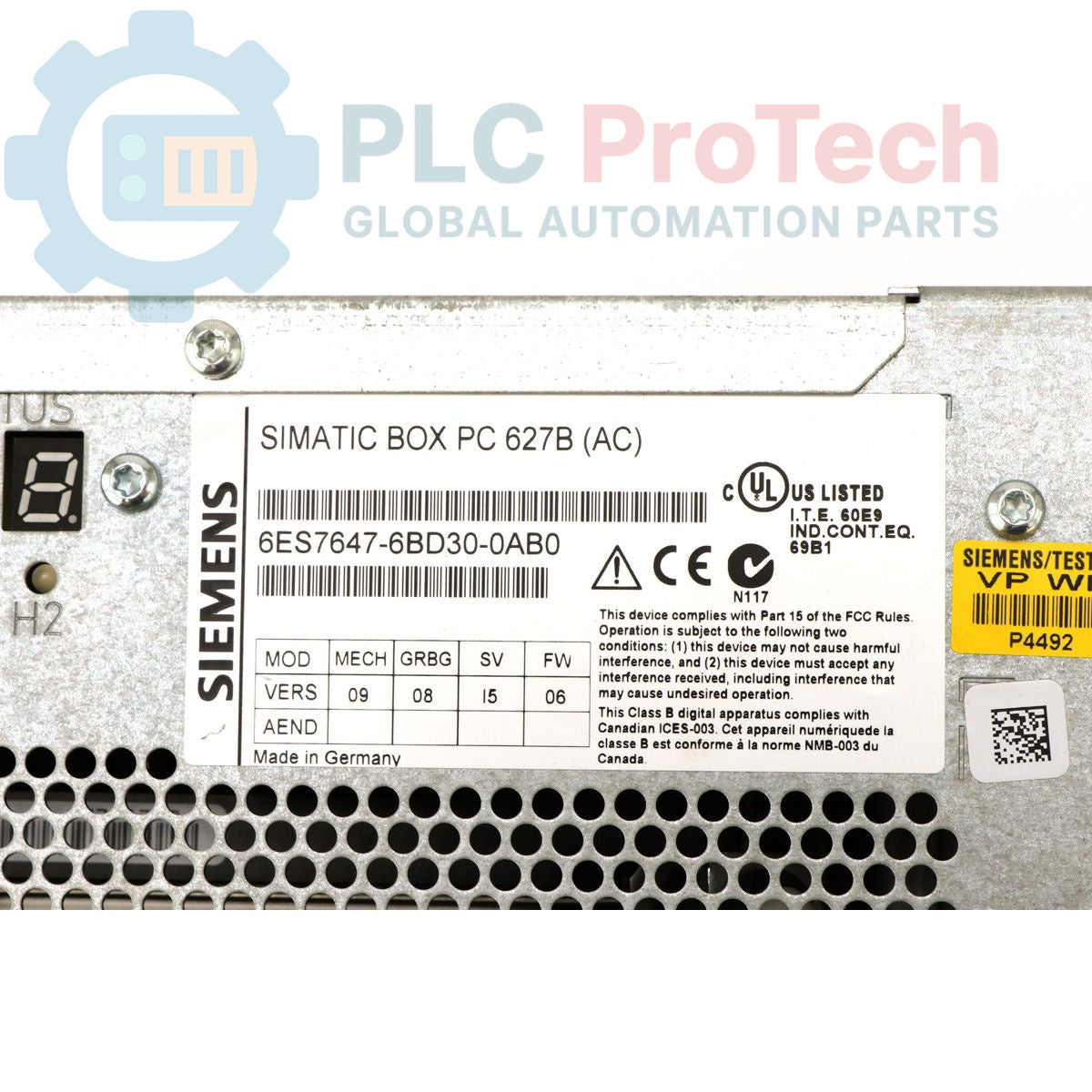

The Siemens 6ES7647-6BD30-0AB0 is an industrial computer from the SIMATIC BOX PC 627B series, engineered for reliable operation in demanding automation environments. This unit is powered by an Intel Core 2 Duo T5500 processor and is equipped with 2 GB of DDR2 RAM, providing a stable platform for control and visualization tasks. It features a 160 GB SATA hard drive and an onboard RAID controller for data integrity. Connectivity is handled by dual Gigabit Ethernet ports, four high-current USB 2.0 ports, and a serial COM port. The system includes integrated monitoring for watchdog, temperature, and fan status, and is pre-installed with Windows XP Professional SP2.

Features

• Processor: Intel Core 2 Duo T5500 (1.66 GHz, 2 MB L2 Cache)
• Memory: 2 GB DDR2 667 SODIMM
• Storage: 160 GB SATA Hard Disk Drive (HDD)
• Graphics: Onboard controller with 128 MB shared memory
• Connectivity: Dual 10/100/1000 Mbit/s Ethernet ports
• Data Integrity: Onboard RAID controller
• Expansion: Two free PCI slots
• System Monitoring: Integrated watchdog, temperature, and fan supervision
• Power Supply: 110/230V AC industrial power supply with NAMUR compliance
• Operating System: Windows XP Professional Multi-Language SP2 pre-installed

Applications

• Human-Machine Interface (HMI) systems
• Process control and data acquisition (SCADA)
• Data logging and archiving
• Gateway for industrial networks
• Machine-level control applications

Technical Specifications

Installation Guidelines

1. 1 De-energize Equipment: Before installation, disconnect all power sources to the industrial control panel. Verify the absence of voltage using a properly rated test instrument.
2. 2 Verify Clearances: Ensure adequate ventilation space around the PC chassis as specified by the manufacturer to prevent overheating. Do not block fan inlets or exhausts.
3. 3 Secure Mounting: Mount the Box PC securely to a stable panel or chassis using all provided mounting points. Ensure the unit is level and cannot vibrate loose during operation.
4. 4 Protective Earth Connection: Connect the chassis ground terminal to the main panel's protective earth (PE) bus using a low-impedance conductor. This is critical for safety and noise immunity.
5. 5 Connect Power and I/O: Connect the AC power supply cable. Route all communication and I/O cables away from high-voltage lines to minimize electrical noise. Ensure all connectors are fully seated and secured.
6. 6 Final Checks: Close the control cabinet door. Remove the lockout/tagout device and re-energize the main supply. Power on the PC and verify correct system boot and operation.
