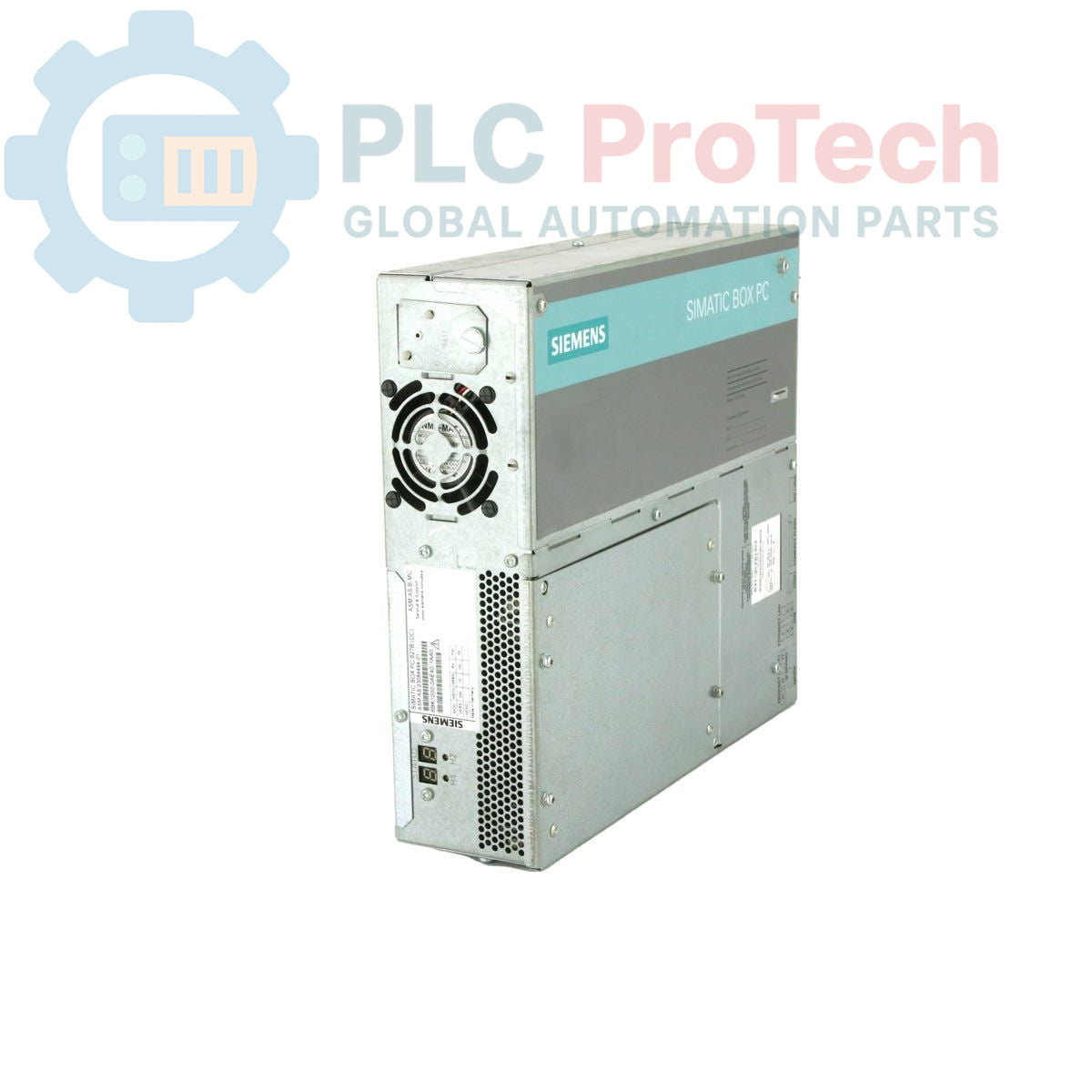

Siemens 6ES7647-6BE20-4BB0 SIMATIC Box PC 627B Industrial PC

SKU 6ES7647-6BE20-4BB0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7647-6BE20-4BB0
Origin Germany
Product Type: Industrial PC
Barcode: 85371091
Payment: T/T, Western Union
Weight: 0.007 kg
Dimensions: 41.0 x 56.5 x 25.0 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The Siemens SIMATIC Box PC 627B, model 6ES7647-6BE20-4BB0, is a robust industrial computer designed for demanding automation environments. This unit is equipped with an Intel Core 2 Duo T5500 1.66 GHz processor, 1 GB of DDR2 RAM, and a 160 GB SATA hard drive for data storage and application hosting. It provides extensive connectivity options, including dual Gigabit Ethernet ports, four high-current USB 2.0 ports, and an integrated PROFIBUS/MPI interface for seamless integration into industrial control networks. The system's reliability is enhanced by an onboard RAID controller and integrated monitoring for temperature, fans, and system status via a watchdog timer.

Features

Processor: Intel Core 2 Duo T5500 (1.66 GHz, 2 MB L2 Cache)
Memory: 1 GB DDR2 667 SODIMM
Storage: 160 GB SATA Hard Disk Drive (HDD)
Optical Drive: DVD+/-RW
Connectivity: Dual 10/100/1000 Mbit/s Ethernet ports
Fieldbus Interface: Integrated PROFIBUS/MPI port
Expansion: PCI slot for additional interface cards (COM2+LPT card included)
Power Supply: Integrated AC 110/230V industrial power supply with NAMUR specifications
System Monitoring: Integrated watchdog timer, temperature, and fan monitoring
RAID: Onboard RAID controller for data redundancy

Applications

Human-Machine Interface (HMI) and SCADA visualization
Data logging and acquisition for process control
Machine-level control and computing tasks
Industrial gateway for network protocol conversion
Factory automation and assembly line management

Technical Specifications

Specification	Value
Manufacturer	Siemens
Product Series	SIMATIC Box PC 627B
Model Number	6ES7647-6BE20-4BB0
Processor	Intel Core 2 Duo T5500 (1.66 GHz, 2 MB L2 Cache, 667 MHz FSB)
System Memory (RAM)	1 GB DDR2 667 SODIMM
Buffered RAM	2 MB
Graphics	Onboard, 128 MB Shared Memory
Internal Storage	160 GB HDD SATA
Optical Drive	DVD +/-RW
Removable Media Slot	Front-side CompactFlash Drive (CF card not included)
Ethernet Ports	2 x 10/100/1000 Mbit/s RJ45
USB Ports	4 x USB V2.0 (high current)
Serial Ports	1 x COM1 (onboard), 1 x COM2 (via PCI card)
Parallel Port	1 x LPT (via PCI card)
Fieldbus Port	PROFIBUS/MPI
Power Supply	AC 110/230V Industrial PSU with NAMUR
Power Cable	Europe
Operating System	Windows XP Professional SP2 (Multi-language)
Product Lifecycle Status	Obsolete
Shipping Weight	7.00 kg
Package Dimensions (Calculated)	41.0 x 56.5 x 25.0 cm
Country of Origin	Germany (Estimate)

Installation Guidelines

CRITICAL WARNING: Electrical hazard. Installation must be performed by qualified personnel only. De-energize the entire control panel and follow all applicable Lockout/Tagout (LOTO) procedures before accessing, installing, or servicing this equipment. Failure to do so can result in severe injury or death.

1 Verify that the installation location provides adequate clearance for ventilation and cable access. Ensure the mounting surface can support the weight of the unit.
2 Securely mount the Box PC chassis within the control cabinet using the appropriate mounting hardware. Ensure the unit is level and stable.
3 Connect the chassis to the cabinet's protective earth (PE) ground point using a low-impedance conductor. A reliable ground connection is essential for safety and noise immunity.
4 Connect all required interface cables, including Ethernet, USB, serial, and PROFIBUS. Route cables neatly and avoid routing signal cables parallel to high-power AC lines.
5 Connect the AC power supply cable to a properly rated and protected power source. After verifying all connections, LOTO procedures may be removed and the system can be energized for commissioning.
