Product Overview

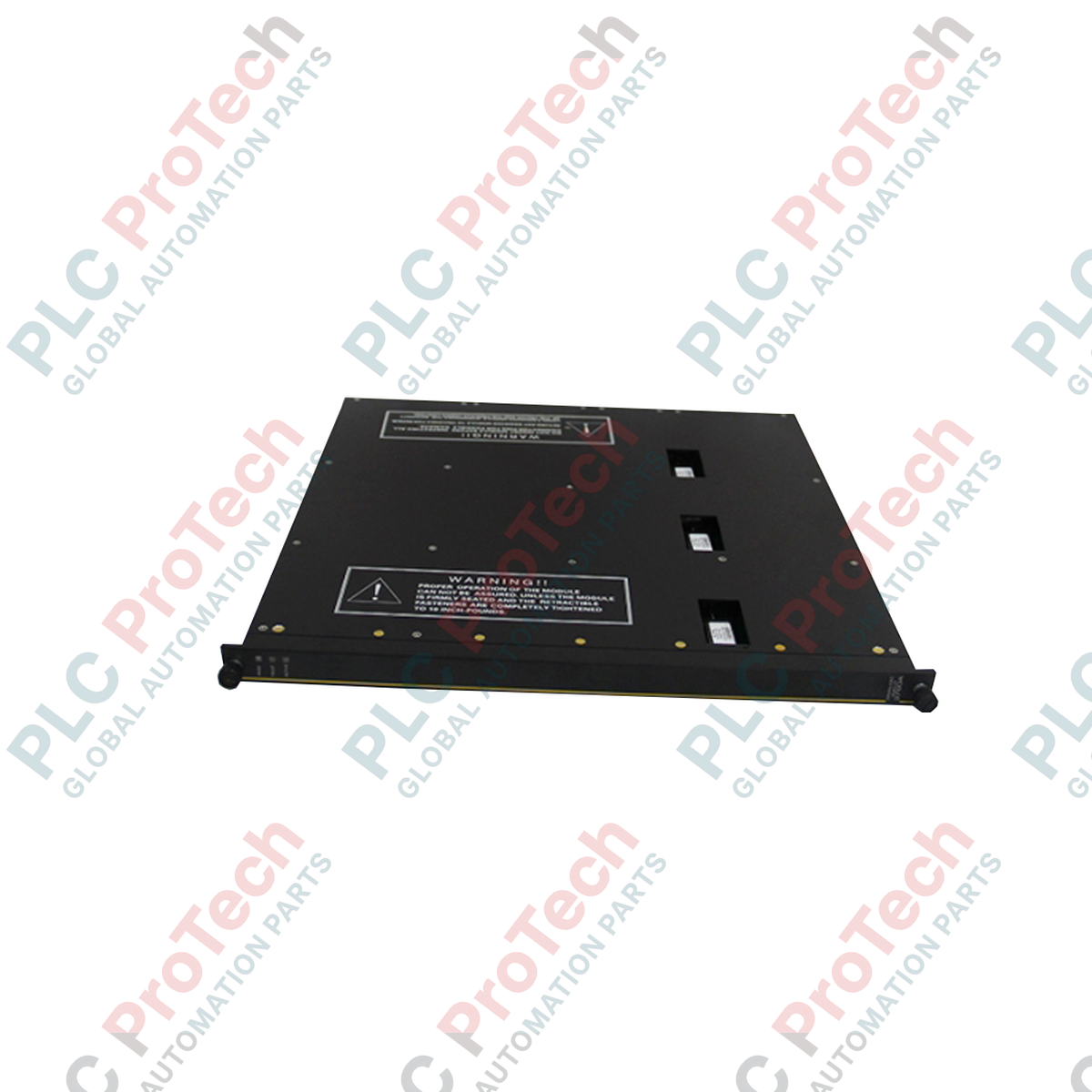

The 4119A (4119A) by Triconex is a high-performance Enhanced Intelligent Communication Module (EICM) designed to facilitate robust data exchange between the Tricon controller and external devices. Functioning as a high-speed intelligence gateway, the 4119A is an essential component in oil and gas processing, chemical manufacturing, and power generation where synchronization between safety systems and distributed control systems (DCS) is critical. This module offloads communication overhead from the Main Processors, ensuring that safety-critical logic execution remains uninterrupted. By supporting multiple serial standards and providing high-voltage isolation, the EICM 4119A significantly reduces the risk of communication-related system trips and enhances overall plant visibility.

Hardware Interface and Protocol Flexibility

The Triconex 4119A architecture is engineered for maximum field flexibility, featuring four serial ports that are software-configurable for RS-232, RS-422, or RS-485 standards. This versatility allows the module to interface with a wide array of legacy and modern hardware, from simple Modbus slaves to complex TriStation workstations. Additionally, the module includes one isolated Centronics parallel port, typically utilized for dedicated local printing of alarm logs and system reports. To protect the integrity of the Triple Modular Redundant (TMR) backplane, the 4119A provides 500 VDC port isolation, shielding the internal safety logic from external electrical noise and transient voltage surges common in industrial network environments.

Technical Specifications

Operational & Connectivity FAQ

Can the 4119A handle Modbus and TriStation protocols simultaneously?

Yes. The 4119A is designed for multi-protocol concurrency. You can dedicate specific ports to Modbus for DCS integration while using another port for TriStation diagnostics, allowing for real-time monitoring without interrupting process data flow.

What is the advantage of the 500 VDC isolation?

The 500 VDC isolation acts as a safety barrier. It prevents ground loops and electrical transients originating from long-distance serial runs or external devices from reaching the Tricon backplane, thereby maintaining the high-availability status of the safety controller.

How do I configure the serial port standard (e.g., changing from RS-232 to RS-485)?

Port configuration for the 4119A is handled via the TriStation software environment. This eliminates the need for manual jumper settings on the module hardware, facilitating faster deployment and easier field modifications.

Engineering & Installation Guide

• Serial Wiring Best Practices: When configuring ports for RS-485 or RS-422, ensure that high-quality shielded twisted-pair (STP) cabling is used. For long cable runs, implement proper termination resistors at both ends of the segment to prevent signal reflection and data corruption.

• Parallel Port Usage: The Centronics parallel port is specifically intended for local reporting. If you are experiencing communication lag on serial ports during heavy printing tasks, verify that the parallel port isolation is intact and that the printer is powered from a clean industrial supply.

• Module Placement and Hot-Swapping: The 4119A should be installed in the dedicated communication slots of the Tricon chassis. It supports hot-swapping; however, ensure that any active communication sessions are acknowledged before removing a module to prevent data timeouts in the host DCS.

Industrial Endurance Advantages

The 4119A is built to withstand the demanding conditions of industrial control rooms. Its ruggedized internal components are rated for continuous operation up to 60 Celsius, ensuring reliability in environments where HVAC systems may fail. The module’s firmware is optimized for high-integrity data packet handling, ensuring that safety-related status bits are transmitted with millisecond precision. Furthermore, its downward compatibility with a broad range of Triconex systems makes it a preferred choice for lifecycle upgrades, providing a reliable serial communication bridge that meets modern safety standards without requiring a total system overhaul.
