Product Overview

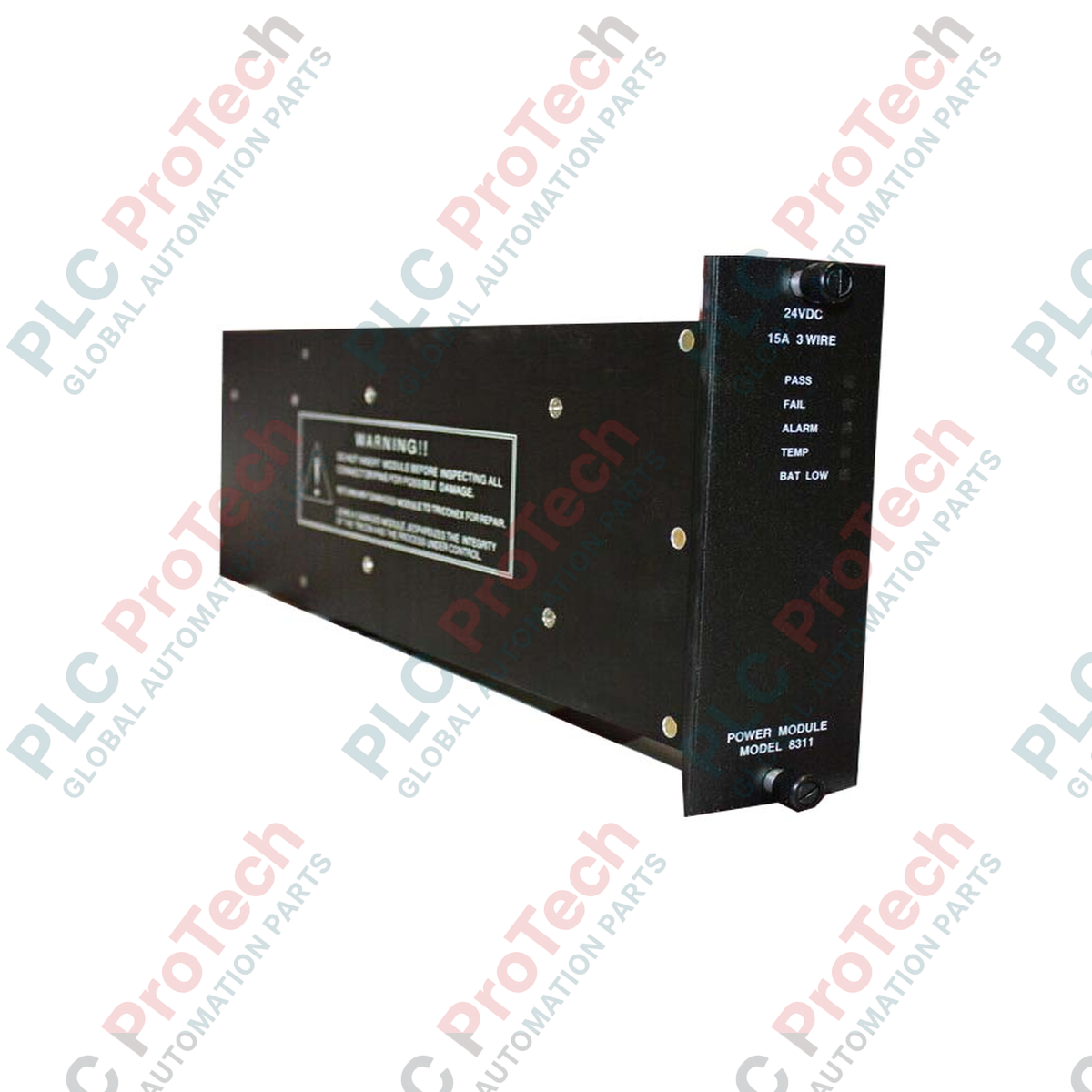

The 8311 (8311) by Triconex is a high-performance High Density Power Supply Module engineered for the most demanding Safety Instrumented Systems (SIS). Operating within a 24 VDC architecture, the 8311 serves as the primary energy backbone for Main, Expansion, or RXM chassis configurations. In mission-critical sectors like oil and gas refining, thermal power plants, and deep-pit mining, power stability is non-negotiable. This module eliminates single points of failure by providing regulated, low-noise power to the backplane, ensuring that your Triple Modular Redundant (TMR) controllers remain operational during voltage fluctuations. By integrating the 8311 into your system, you effectively mitigate the risk of unplanned shutdowns caused by power-related logic errors.

Hardware Architecture and Load Management

The Triconex 8311 is designed with a high-density footprint to maximize chassis slot efficiency without compromising thermal performance. It utilizes a robust 15 Amps time-delay fuse to protect internal circuitry from over-current transients while allowing for the high inrush currents typical of large-scale automation racks. A critical engineering feature is its 2.8 ms minimum hold time, which provides a vital buffer during millisecond-level power dips, allowing the TMR processors to maintain state or execute an orderly fail-safe transition. The module supports redundant configurations where two power supplies share the load, ensuring that if one unit fails, the other assumes the full load instantaneously without disrupting the process safety loop.

Technical Specifications

Operational & Maintenance FAQ

How can I identify a blown fuse on the 8311 module?

The module features front-panel LED indicators. A "Pass" LED off or a "Fault" LED illuminated usually indicates an internal failure or a cleared 15 Amps fuse. Always check input bus voltage before replacing the module.

Does the 8311 support hot-swapping in a live TMR system?

Yes. As part of the Triconex high-availability design, the 8311 can be replaced while the system is under power, provided a redundant power module is active and healthy in the same chassis.

What is the significance of the 2.8 ms hold time?

This is a safety-critical metric. It ensures that even if the external 24 VDC source fluctuates momentarily, the 8311 maintains a steady output long enough for the system to filter out the noise or bridge the gap, preventing "phantom" trips.

Field Engineering & Installation Protocol

• Thermal Management and Airflow: To maintain the longevity of the 8311, ensure that the chassis fan tray is fully operational. High-density power modules generate concentrated heat; always maintain at least 50 mm of clearance above and below the chassis for optimal convection, even when using forced-air cooling.

• Input Voltage Calibration: Ensure your upstream bulk power supplies are calibrated to 24 VDC. Operating continuously at the lower limit (22 VDC) reduces the hold-time margin, while operating near the upper limit (31 VDC) increases thermal stress on the internal regulators.

• Grounding and Shielding: The module frame must be securely seated in the chassis to ensure a low-impedance path to the system ground. Verify that the chassis earthing bars are free of oxidation to prevent common-mode noise from affecting the DC output.

Industrial Endurance Advantages

The Triconex 8311 is built to withstand the rigors of harsh industrial environments. It is rated for operation up to 60 deg Celsius without derating, making it suitable for non-air-conditioned control rooms in desert or tropical climates. The internal components are ruggedized to resist high-vibration profiles common in compressor stations and mining sites. Furthermore, the 8311 maintains strict downward compatibility, allowing for seamless integration into legacy Triconex systems during lifecycle upgrades, providing a reliable path for maintaining aging infrastructure with modern, high-density hardware.
