System Integration Overview

The Triconex 3000520-390 (3000520390) serves as a critical External Termination Assembly (ETA) designed for seamless interface between field wiring and Tricon safety-instrumented systems. Specifically engineered for use with the 9563-910 External Termination Panel, this component is a cornerstone for 24 VDC Commoned Digital Input configurations. Beyond standard input tasks, it is an essential element of the 3624 to 3625 Digital Output module upgrade kit, facilitating low-density system transitions without requiring extensive field rewiring. In high-stakes environments such as oil refineries, thermal power plants, and chemical processing facilities, the 3000520-390 ensures signal integrity and hardware protection, significantly reducing Mean Time to Repair (MTTR) through its modular, DIN-rail mounted architecture.

Hardware Architecture and Protective Logic

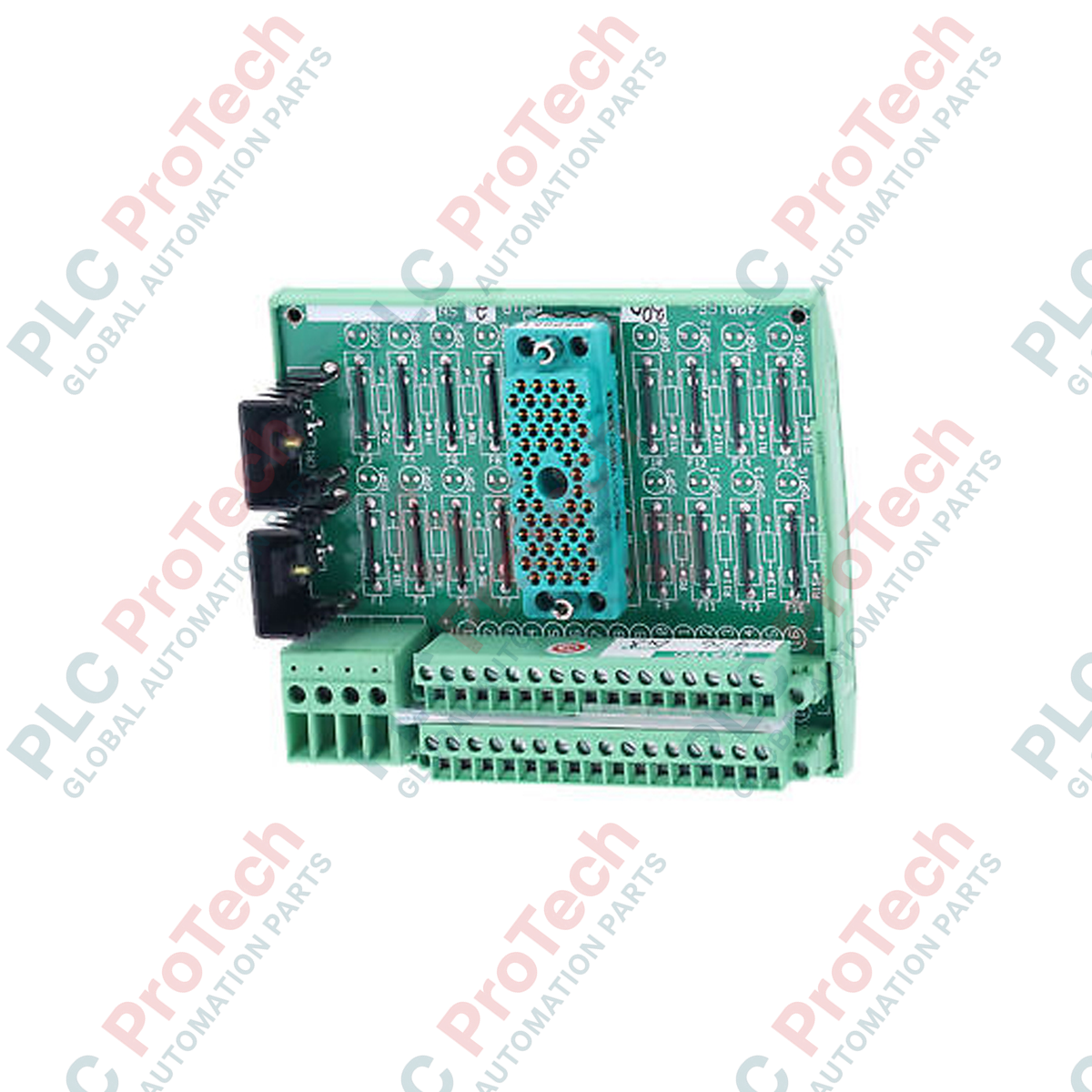

The 3000520-390 is built upon a high-grade PCB housed in a protective plastic enclosure designed for DIN 50 022 rail mounting. Its internal circuitry features integrated series resistor protection, which safeguards the I/O modules against field-side electrical anomalies. The assembly supports a 16-point density, where each point is commoned to simplify the wiring topology of 24 VDC circuits. When utilized in the 9662-610L upgrade path, it provides the physical and electrical translation layer necessary for the 3625 Digital Output module to operate within legacy footprints, ensuring that safety logic execution remains uninterrupted during hardware modernization.

Detailed Technical Specifications

Critical Technical FAQs

Can the 3000520-390 be used with Digital Output modules?

Yes. While primarily associated with Digital Input panels (9563-910), it is a verified component in the 3624 to 3625 DO module upgrade kit. In this context, it facilitates the transition of low-density digital output signals within the Tricon system architecture.

What is the maximum permissible distance for field wiring?

The ETA utilizes the 4000093-310 interface cable. While the standard length is 10 feet (3 meters), the system supports custom cable lengths up to 90 feet (approximately 27 meters) to accommodate various cabinet layouts without signal degradation.

How does the resistor protection benefit the system?

The series resistors act as a current-limiting buffer. This prevents a single field short-circuit from causing a catastrophic failure of the connected I/O module, thereby isolating faults and maintaining high system availability.

On-Site Installation & Maintenance Guide

• Wiring Torque and Security: When securing conductors between 24 and 12 AWG, ensure the compression terminals are tightened to the manufacturer's specified torque (typically 0.5 Nm) to prevent vibration-induced loosening in high-vibration industrial zones.

• Cable Management: Ensure the 4000093-310 interface cable is routed away from high-voltage AC lines. Maintain a minimum clearance of 50 mm from power cables to minimize EMI (Electromagnetic Interference) on the 24 VDC logic signals.

• DIN-Rail Grounding: For optimal surge protection, ensure the DIN rail itself is bonded to the master instrument ground (Earth) with a low-impedance conductor. The plastic housing provides insulation, but the PCB ground reference relies on stable system potentials.

Industrial Durability Advantages

The 3000520-390 is engineered to mirror the environmental resilience of the main Tricon chassis. It is rated for continuous operation in atmospheres with non-condensing humidity and is resistant to the mechanical stresses common in heavy industrial applications. By utilizing a "Commoned" architecture with integrated resistors, it reduces the complexity of the termination cabinet, allowing for cleaner wire dressing and easier troubleshooting for maintenance engineers during live plant operations.
