Product Overview

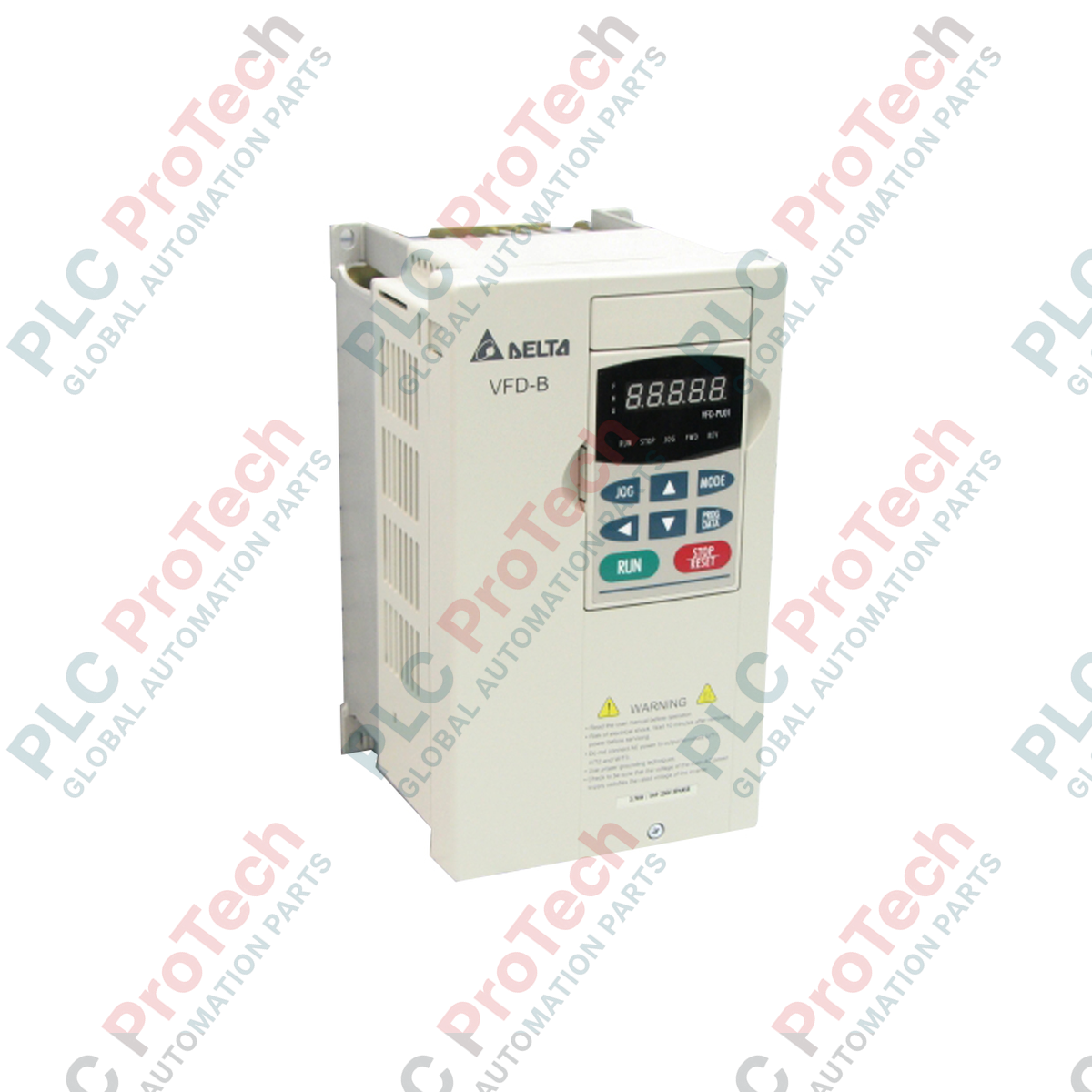

The VFD550B43C (VFD550B43C) is a high-capacity 55 kW (75 HP) Variable Frequency Drive designed for heavy-duty industrial power applications. As a premier component of Delta’s VFD-B series, this drive is engineered to provide high-torque control and stable frequency output for large-scale machinery, including industrial mixers, heavy conveyors, and reciprocating compressors. With a dedicated focus on reliability, the VFD550B43C manages high-inertia loads through its robust 150% overload capacity and precision Stall Prevention logic, ensuring that critical manufacturing processes remain uninterrupted even under fluctuating mechanical demands.

Technical Configuration

The VFD550B43C utilizes a sophisticated microprocessor-based PWM control system, achieving a frequency resolution of 0.01 Hz for ultra-precise motor speed synchronization. The hardware is built for 460V Three-phase environments and features a high-performance fan-cooled chassis to manage the thermal loads of a 75 HP motor. For system protection, the drive incorporates programmable "Skip Frequency" zones, which prevent the motor from operating at specific resonant speeds that could cause mechanical fatigue. Its adjustable Stall Prevention levels (up to 250%) allow engineers to customize the drive's response to overcurrent conditions, providing a tailored balance between equipment protection and process continuity.

Technical Specifications

Technical FAQs

How do I configure the VFD550B43C to prevent mechanical resonance?

Use the "Skip Frequency" parameters to set up to three specific frequency zones. If your machine vibrates excessively at a certain RPM, define that frequency range in the drive settings; the drive will then automatically "jump" through that zone during acceleration and deceleration to avoid damaging vibrations.

Is this drive suitable for high-starting torque applications?

Yes. The VFD-B series is known for its high starting torque capabilities. With a 150% overload rating for 60 seconds and a programmable stall prevention level up to 250%, the VFD550B43C is well-suited for heavy-start loads like rock crushers or loaded conveyors.

What are the environmental requirements for the 55 kW model?

Due to its 50 kg weight and high power throughput, the drive must be installed in a well-ventilated area with ambient humidity below 90% RH. Ensure the air intake is free from conductive dust or corrosive gases, as the internal fans circulate large volumes of air to cool the power modules.

Engineering & Installation Guide

• Lifting and Mounting: The VFD550B43C weighs 50 kg. Use appropriate mechanical lifting equipment and the integrated mounting holes to secure the unit. It must be mounted vertically on a flat, non-combustible surface. Maintain a minimum vertical clearance of 200 mm to ensure unobstructed airflow from the cooling fans.

• Circuit Protection: For a 75 HP motor, the input power wiring must be protected by a high-interrupting capacity circuit breaker or fast-acting semi-conductor fuses. Ensure that the 460V input is stable; voltage fluctuations beyond the standard tolerance can trigger the drive's protective under-voltage or over-voltage circuits.

• Grounding and Interference: High-power drives generate significant EMI. Use shielded motor cables and ensure the drive’s ground terminal is connected to a dedicated low-impedance earth ground. This minimizes the risk of signal interference with nearby PLC or sensor wiring, which is critical in a 55 kW installation.
