Bently Nevada 330101-00-12-50-01-05 3300 XL 8 mm Proximity Probe

Description

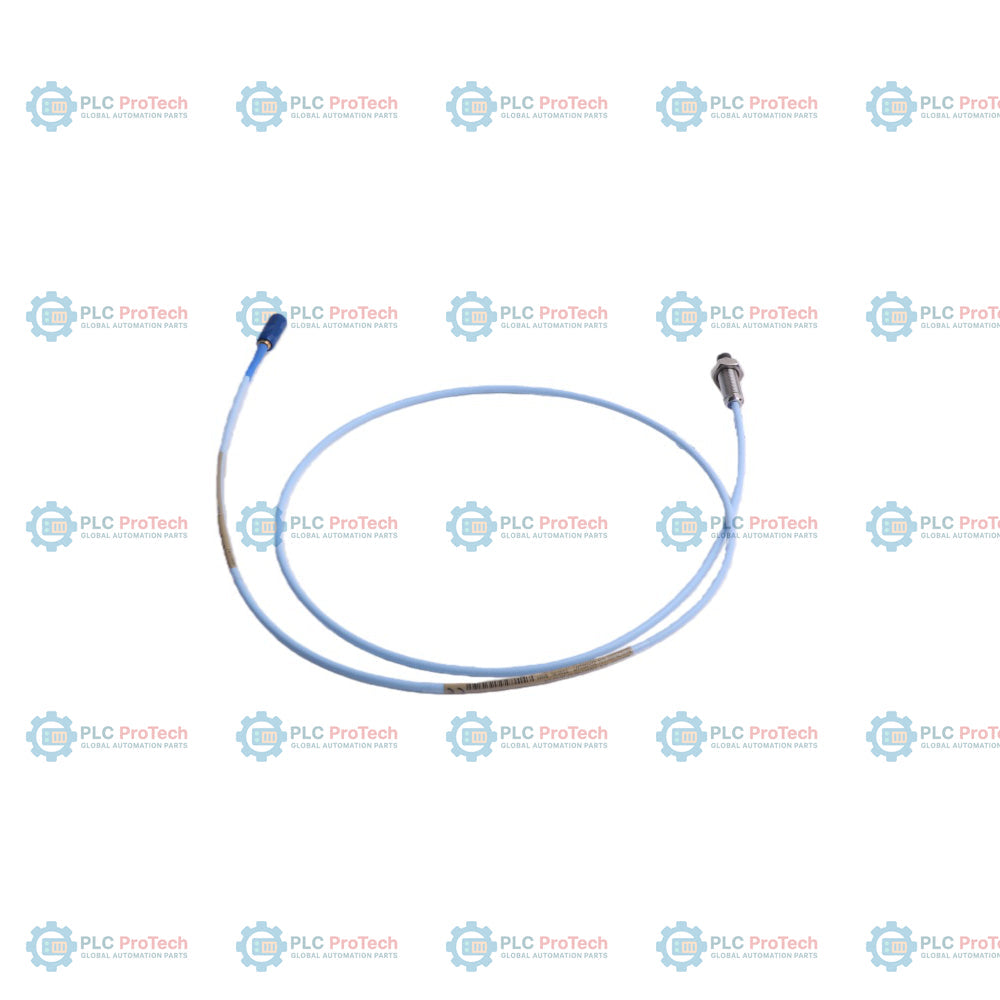

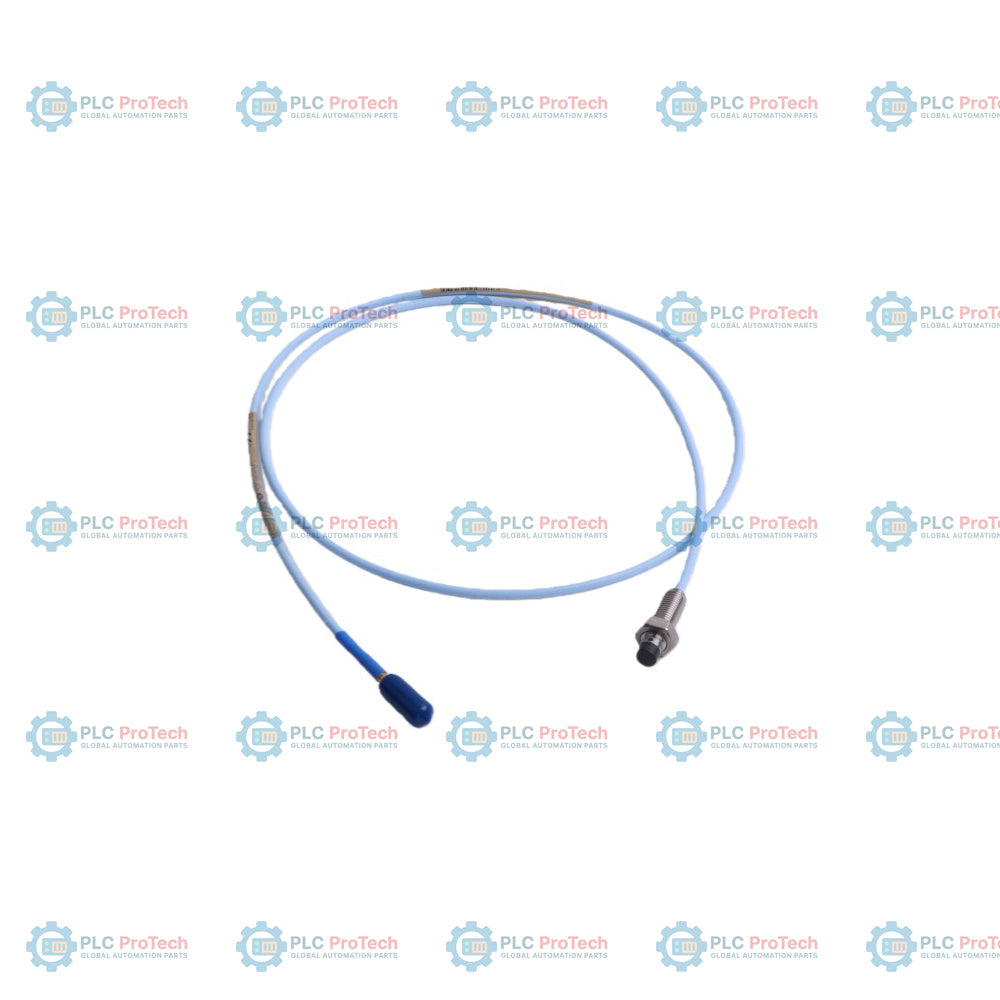

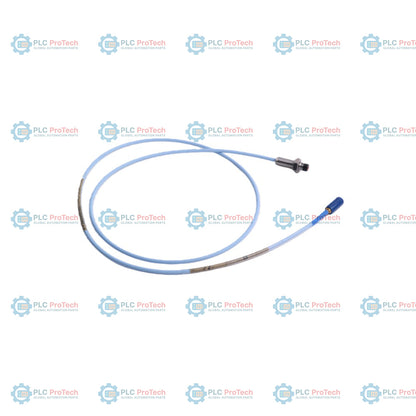

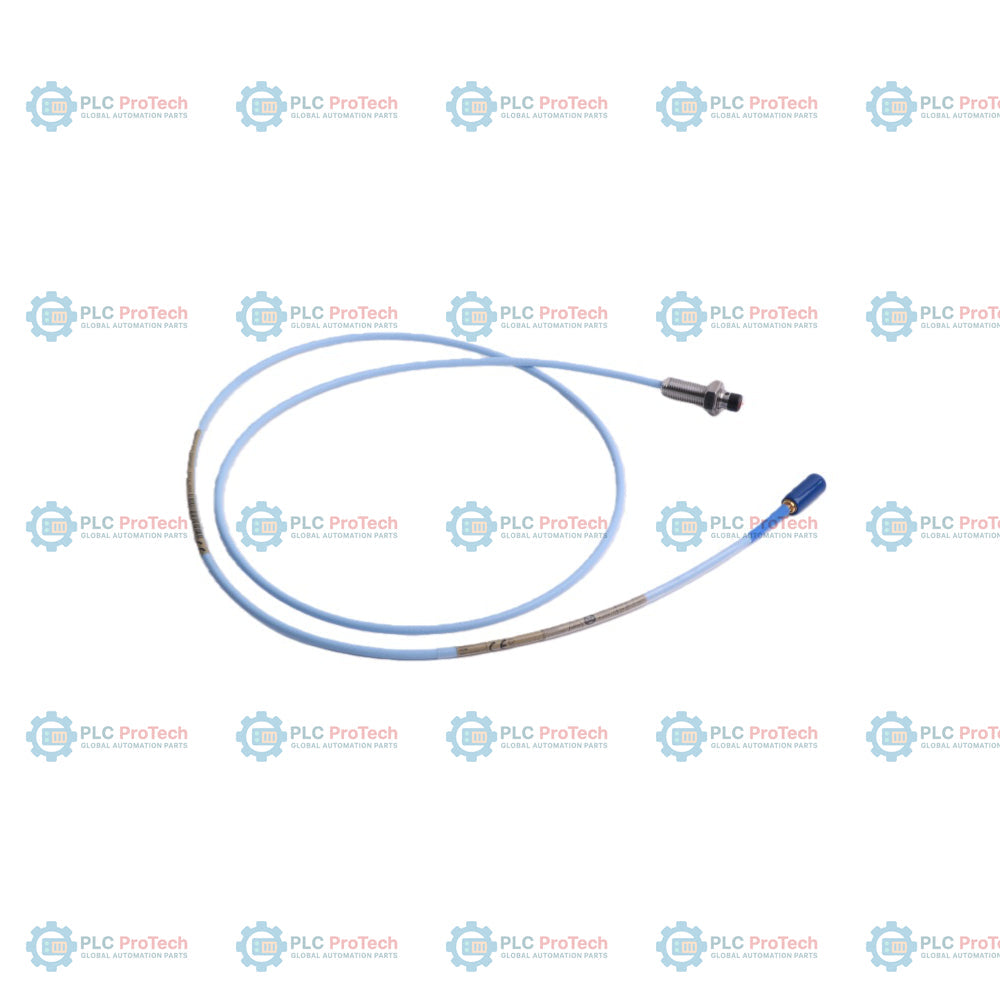

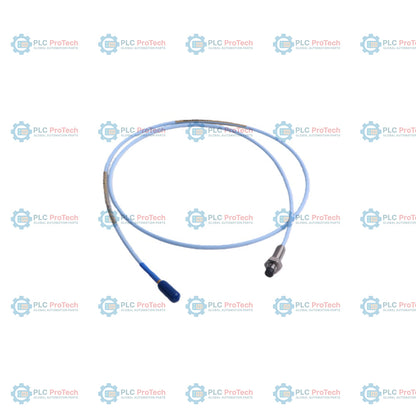

Achieve precise, non-contact shaft vibration and displacement measurements with the Bently Nevada 330101-00-12-50-01-05, a heavy-duty 8 mm proximity probe belonging to the 3300 XL 8 mm Proximity Transducer System family. This specific configuration features a 5.0 meter total length, allowing it to connect directly to a 5 meter Proximitor sensor without requiring an intermediate extension cable, which eliminates a connector connection and reduces potential failure points in demanding industrial environments. Built with a 3/8-24 UNF threaded casing, it has a fully threaded 1.2-inch overall case length (0.0-inch unthreaded length) and is designed without armor. The cable terminates in a gold-plated miniature coaxial ClickLoc connector fitted with a rugged connector protector to shield the junction from fluid contamination and mechanical wear. Engineered for hazardous locations, this configuration is certified under CSA, ATEX, and IECEx standards.

Features

• 8 mm tip diameter PPS (polyphenylene sulfide) probe tip provides robust structural integrity and resistance to chemical corrosion.
• Fully threaded 1.2-inch (30.5 mm) stainless steel body (AISI 303 or 304) with standard 3/8-24 UNF threads.
• 5.0-meter integrated standard triaxial FEP-insulated probe cable connects directly to a 5-meter Proximitor sensor.
• ClickLoc coaxial connector equipped with a protective connector sleeve (connector protector) to isolate the junction from oil, water, and mechanical stress.
• Rated for hazardous areas with extensive international certifications, including CSA, ATEX, and IECEx.
• Eliminates the need for an extension cable, simplifying installation and cable management.

Applications

• Fluid-film bearing housing monitoring in gas and steam turbines.
• Radial vibration and axial thrust position measurement in critical centrifugal compressors, pumps, and fans.
• Keyphasor reference, phase angle, and speed measurement on high-speed rotating machinery.
• Machinery protection systems in oil and gas, petrochemical, and power generation industries.

Ordering Information

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Probe Gap: Set the nominal probe gap (typically 1.27 mm / 50 mils) using a caliper or by monitoring the DC output voltage of the Proximitor sensor during adjustment.
• Thread Engagement: Do not exceed standard thread engagement limits. For 3/8-24 UNF, the maximum length of thread engagement is 0.563 inches (14.3 mm) to avoid binding.
• Torque Limits: Apply a maximum case torque of 11.2 Nm (100 in-lbf) during installation on bearing housings.
• Cable Routing: Maintain a minimum bend radius of 25.4 mm (1.0 in). Route the cable with proper mechanical guarding to prevent abrasion. Always isolate and ground the cable shielding properly to avoid electrical noise interference.
• Proximitor Matching: Since this is a 5-meter total length probe, it must only be connected to a matching 5-meter Proximitor sensor. No extension cable is permitted, which ensures overall calibration matches exactly 5.0 meters.

Compliance and Certifications

• Hazardous Area Approvals: CSA, ATEX, IECEx
• Classifications: Ex ia IIC, Ex nA IIC
• CE Compliant
