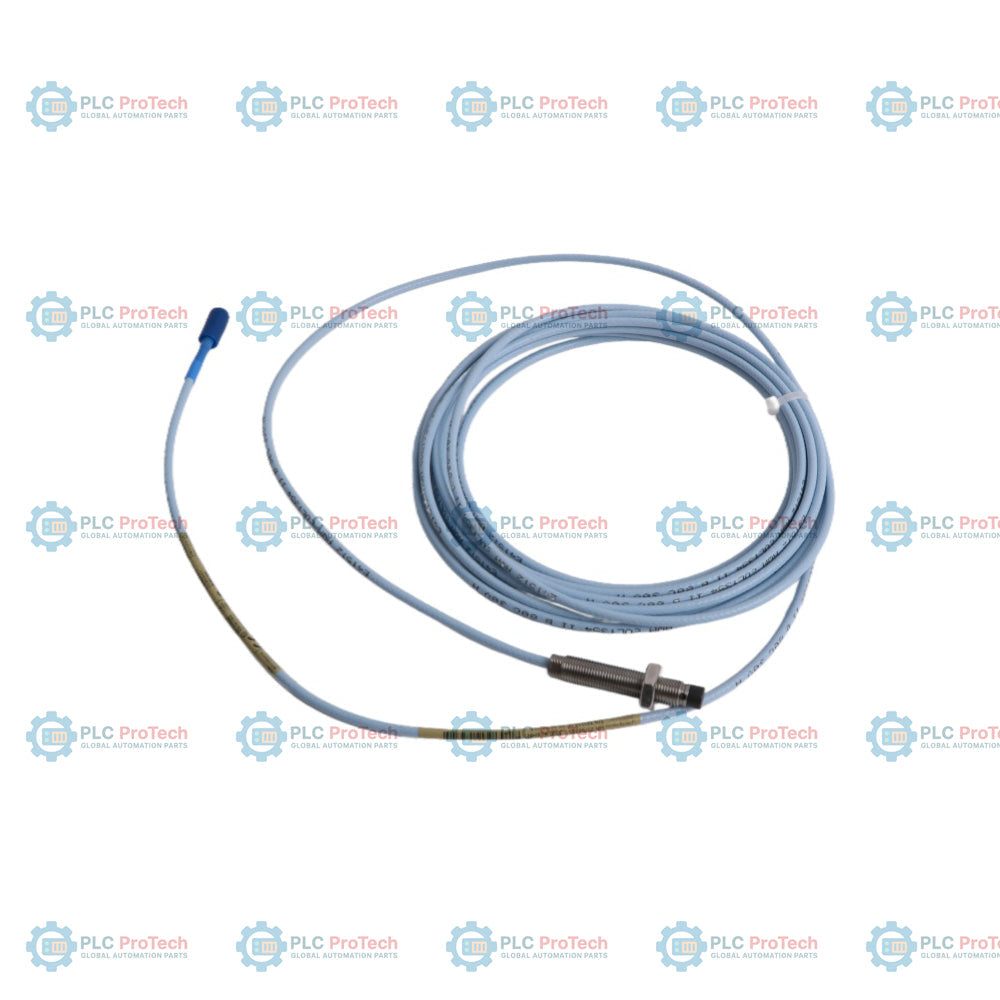

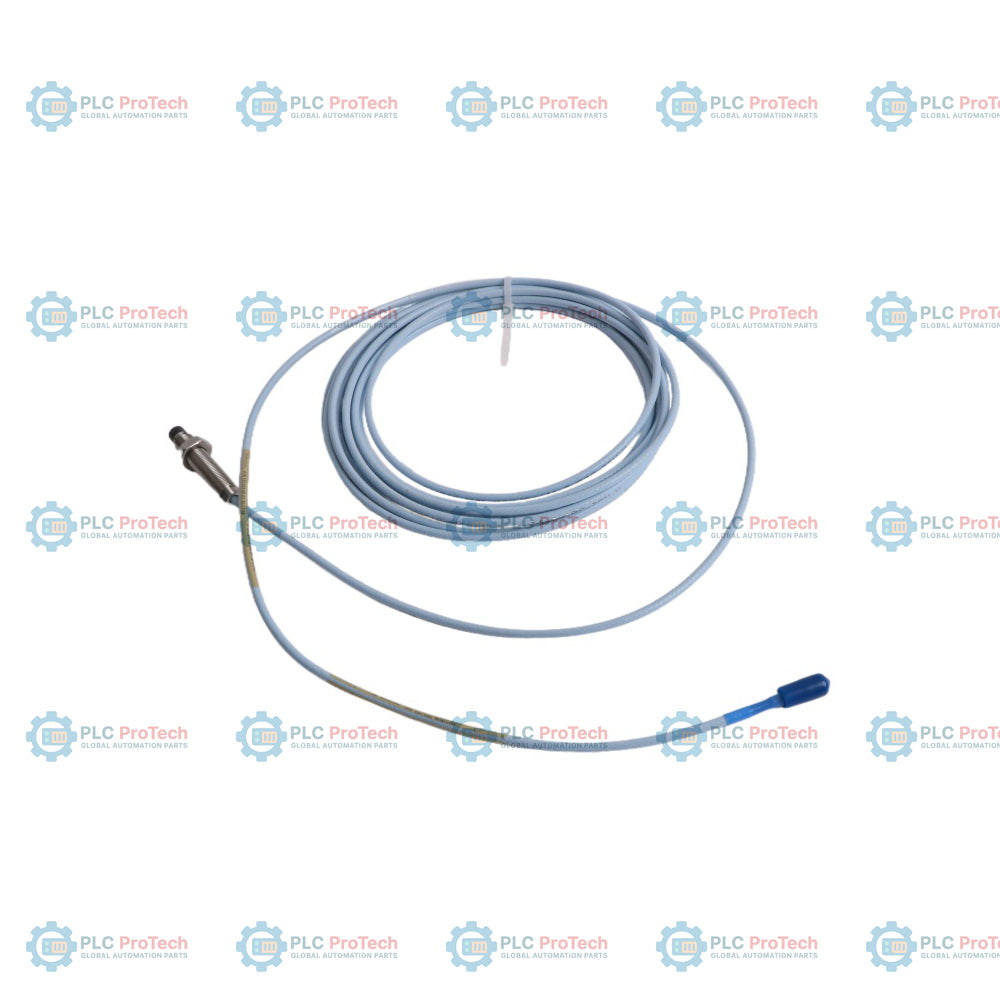

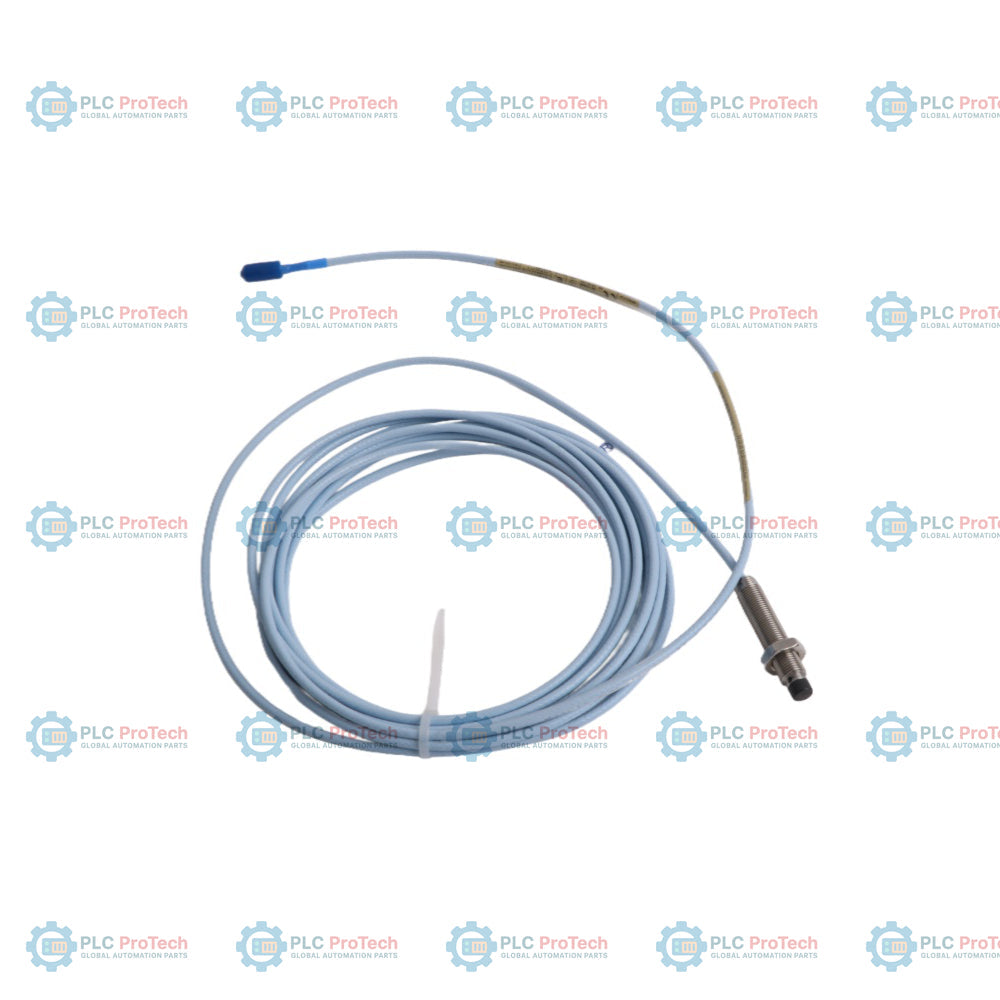

Option 00 (0 mm unthreaded length), Option 05 (50 mm overall case length), and Option 12 (coaxial ClickLoc connector with FluidLoc cable) define this 3300 XL 8 mm proximity probe configuration — 330103-00-05-05-12-05. This unarmored, metric-threaded (M10 x 1) sensor is used for non-contact eddy-current measurement of shaft vibration and axial position on critical rotating machinery. Featuring a total cable length of 0.5 meters (1.6 feet) and certified under CSA, ATEX, and IECEx approvals (Option 05), this specific variant is optimized for applications requiring oil-barrier protection through its specialized FluidLoc cable, which prevents fluid migration along the interior of the lead.
Unlike variants utilizing standard coaxial cable (such as Option 02) or those featuring stainless steel armor (like the 330104 series), this probe provides direct fluid containment inside the cable sheath, making it ideal for wet or oil-submerged environments where conduit seals are impractical. With a fully threaded case design (0 mm unthreaded), it offers maximum thread engagement flexibility in standard M10 x 1 mounting brackets.
| Option / Segment | Code on This SKU | Description |
|---|---|---|
| Base Model | 330103 | 3300 XL 8 mm Proximity Probe, M10 x 1 thread, without armor |
| A - Unthreaded Length | 00 | 0 mm unthreaded length |
| B - Overall Case Length | 05 | 50 mm overall case length |
| C - Total Length | 05 | 0.5 meter (1.6 feet) total length |
| D - Connector & Cable Type | 12 | Miniature coaxial ClickLoc connector, FluidLoc cable (no connector protector) |
| E - Agency Approval | 05 | CSA, ATEX, IECEx Approvals |
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number / Model | 330103-00-05-05-12-05 |
| Probe Diameter | 8.0 mm (0.31 in) |
| Thread Size | M10 x 1 |
| Unthreaded Length (Option A) | 0 mm |
| Case Length (Option B) | 50 mm |
| Total Length (Option C) | 0.5 meter (1.6 feet) |
| Cable Type (Option D) | 75 ohm triaxial FluidLoc coaxial cable (unarmored) |
| Connector Type | Miniature gold-plated coaxial ClickLoc connector (male) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Nominal DC Resistance (R_PROBE) | 7.45 ohms +/- 0.50 ohms (center conductor to outer conductor) |
| Operating Temperature (Probe) | -52 degC to +177 degC (-62 degF to +350 degF) |
| Tensile Strength (Maximum) | 330 N (75 lbf) probe case to probe lead |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Recommended Torque | 11.2 N-m (100 in-lbf) |
| Maximum Rated Torque | 33.9 N-m (300 in-lbf) |
| Dimensions | 150 mm x 150 mm x 30 mm (H x W x D) |
| Weight | 0.16 kg |
Ensure that the probe case thread engagement does not exceed 15 mm during installation to prevent thread binding or casing damage. Route the FluidLoc cable carefully, maintaining a minimum bend radius of 25.4 mm (1.0 in). Torque the probe case to the recommended value of 11.2 N-m (100 in-lbf) in the mounting bracket, and do not exceed the maximum rated torque of 33.9 N-m (300 in-lbf). Verify that all ClickLoc connections are finger-tight until they click. For hazardous area installations, ensure proper intrinsically safe barrier wiring conforms to the approved installation drawings.
This variant is certified under the Option 05 package which includes:
