Bently Nevada 330103-00-06-10-02-00 3300 XL 8 mm Proximity Probe

Description

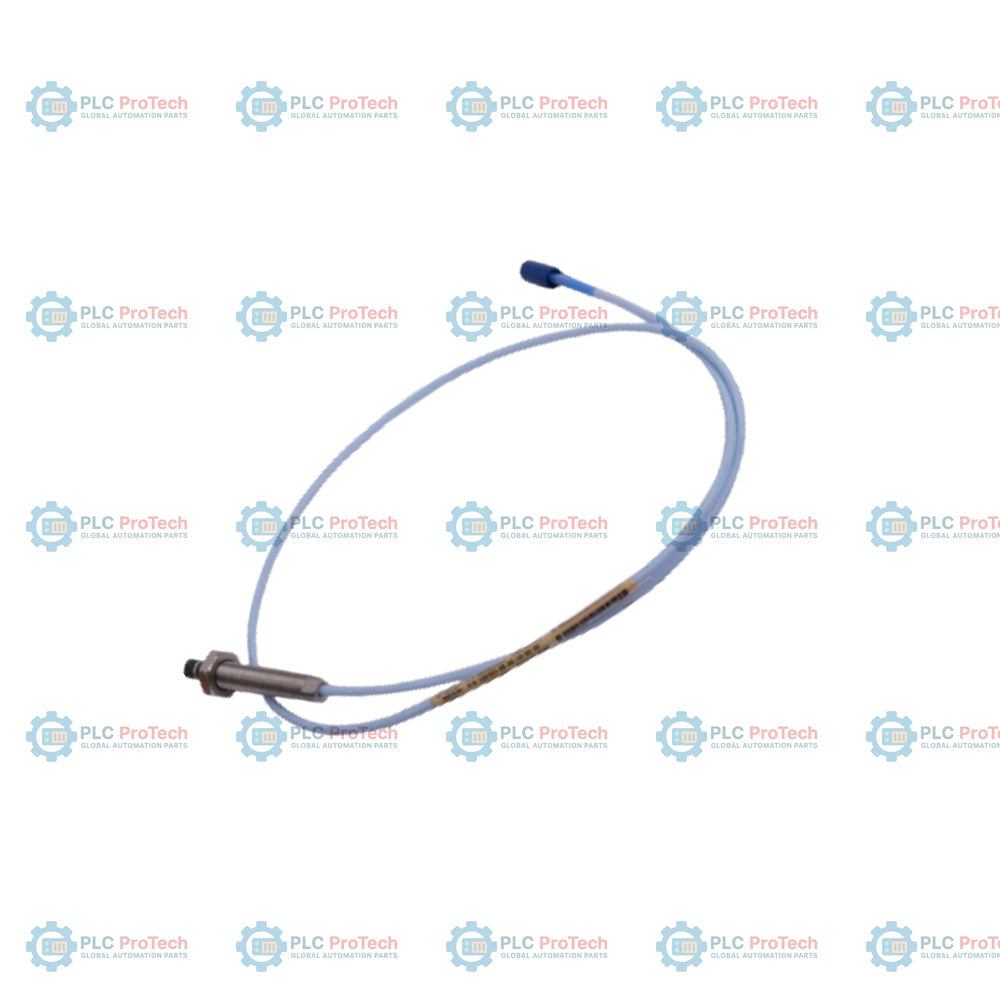

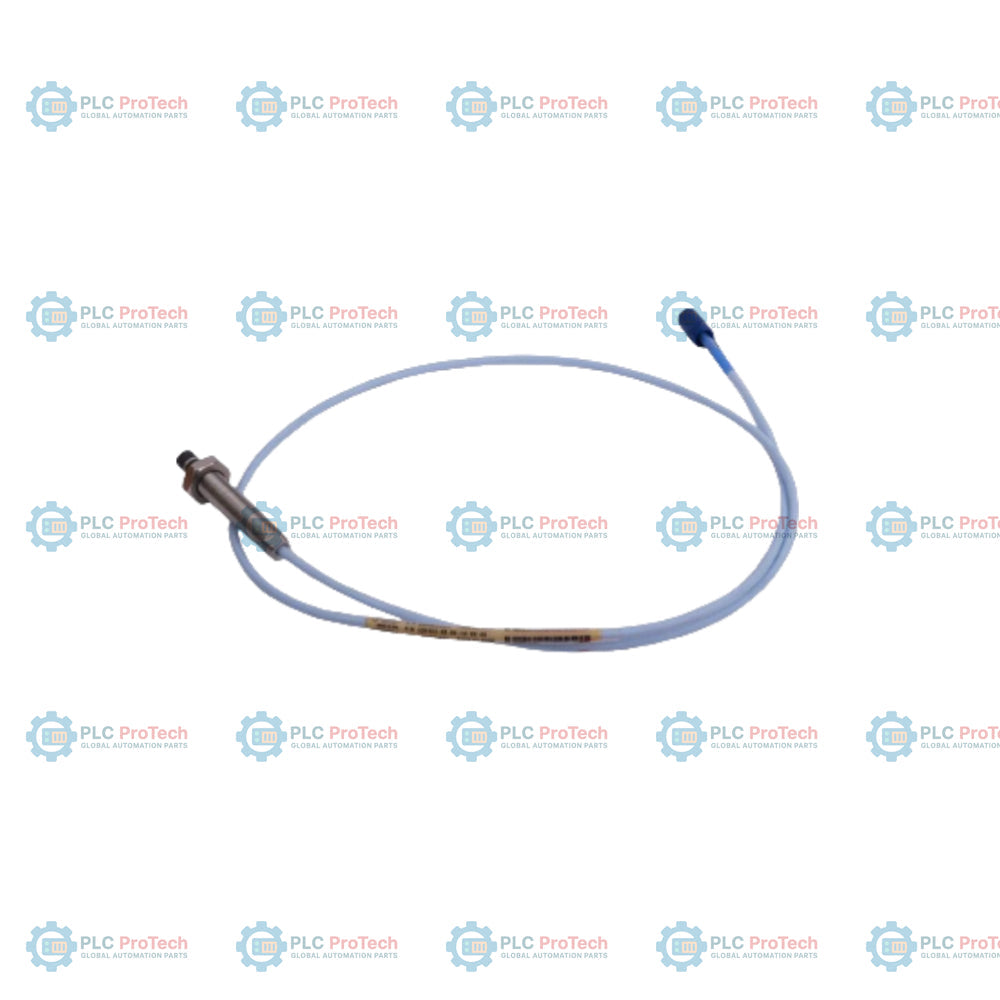

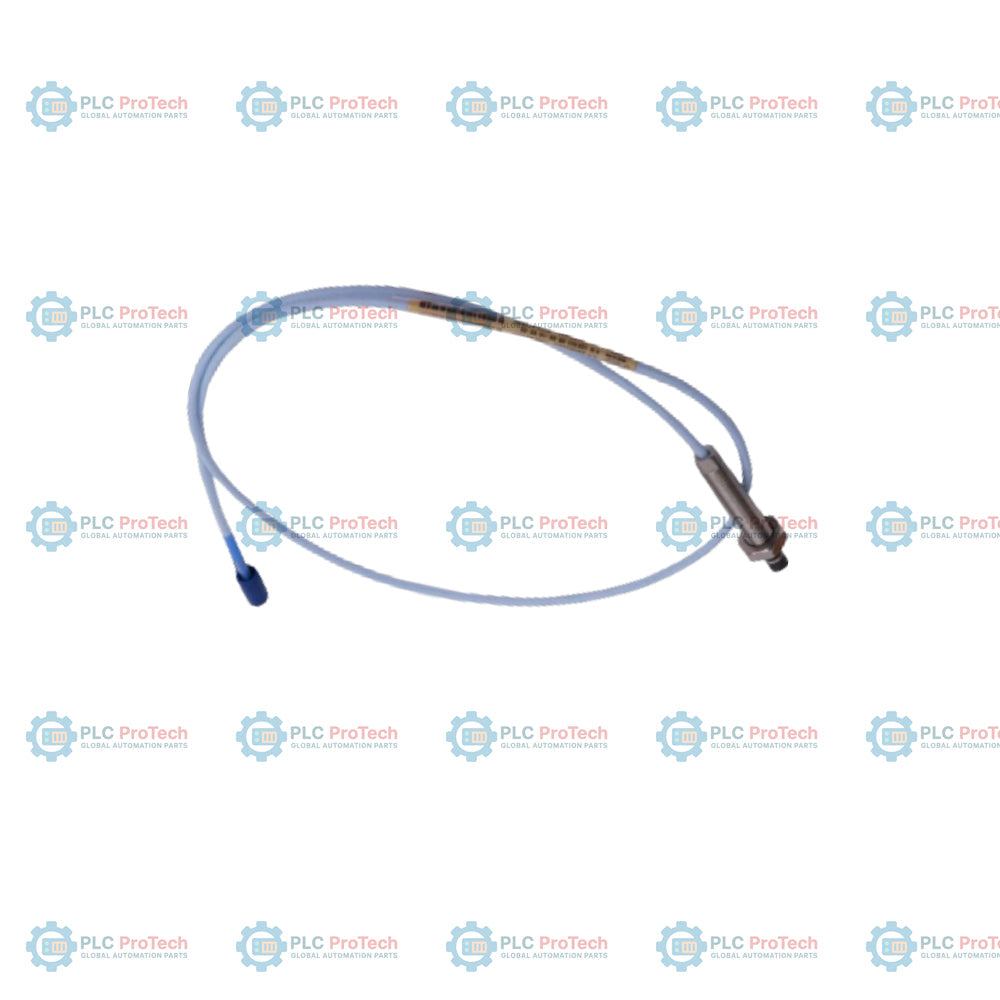

330103-00-06-10-02-00 is an unarmored metric proximity probe featuring a 0 mm unthreaded length, a 60 mm overall case length, a 1.0-meter total cable length, and a standard coaxial cable with a miniature ClickLoc connector.

While armored models such as the 330104 series provide flexible stainless steel protective armor, this standard unarmored 330103 probe variant is intended for protected conduits or internal machinery routings where extra mechanical armor is unnecessary. The 1.0 m total length option (Option 10) connects directly to a matching 3300 XL extension cable and Proximitor sensor, completing a 5-meter or 9-meter measurement system. The miniature coaxial ClickLoc connector (Option 02) does not include a connector protector, meaning it can be routed through smaller clearances or used with field-installed protection sleeves.

Features

• Option 00 designates a 0 mm unthreaded length for full thread engagement across the probe casing.
• Option 06 defines a 60 mm case length with metric M10 x 1 threads for direct mounting into tapped holes.
• Option 10 supplies a 1.0-meter (3.3 feet) overall cable length.
• Option 02 provides a miniature coaxial ClickLoc connector without a pre-installed connector protector.
• Option 00 specifies that no hazardous area agency approvals are required for this configuration.
• 8.0 mm tip diameter with polyphenylene sulfide (PPS) tip material molded to the stainless steel body.
• Viton O-ring seal to prevent fluid leakage between the probe tip and the metallic case.

Applications

• Shaft radial vibration monitoring on machinery such as steam turbines, gas turbines, and compressors.
• Shaft axial position and thrust displacement measurements.
• Rotor dynamic analysis and eccentricity measurements.
• Phase reference (Keyphasor) signal generation for speed measurement and balancing.
• Shaft position monitoring in industrial gearboxes, pumps, and fans.

Ordering Information

Technical Specifications

Installation Guidelines

• For standard M10 x 1 threads, limit thread engagement to a maximum of 15 mm to avoid binding.
• Use an 8 mm wrench on the integrated wrench flats when installing the probe.
• Maintain a minimum cable bend radius of 25.4 mm (1.0 inch) when routing the standard FEP coaxial cable.
• Use standard calibration targets made of AISI 4140 steel to maintain system accuracy.
• Protect the ClickLoc connection from oil and moisture ingress using a connector protector or appropriate sealing if exposed to turbine oil environments.

Compliance and Certifications

This configuration uses Option 00, indicating it is intended for general industrial installations that do not require specialized hazardous area approvals. It is manufactured under rigorous ISO 9001 quality standards and conforms to standard mechanical and electrical safety profiles for industrial transducer equipment.
