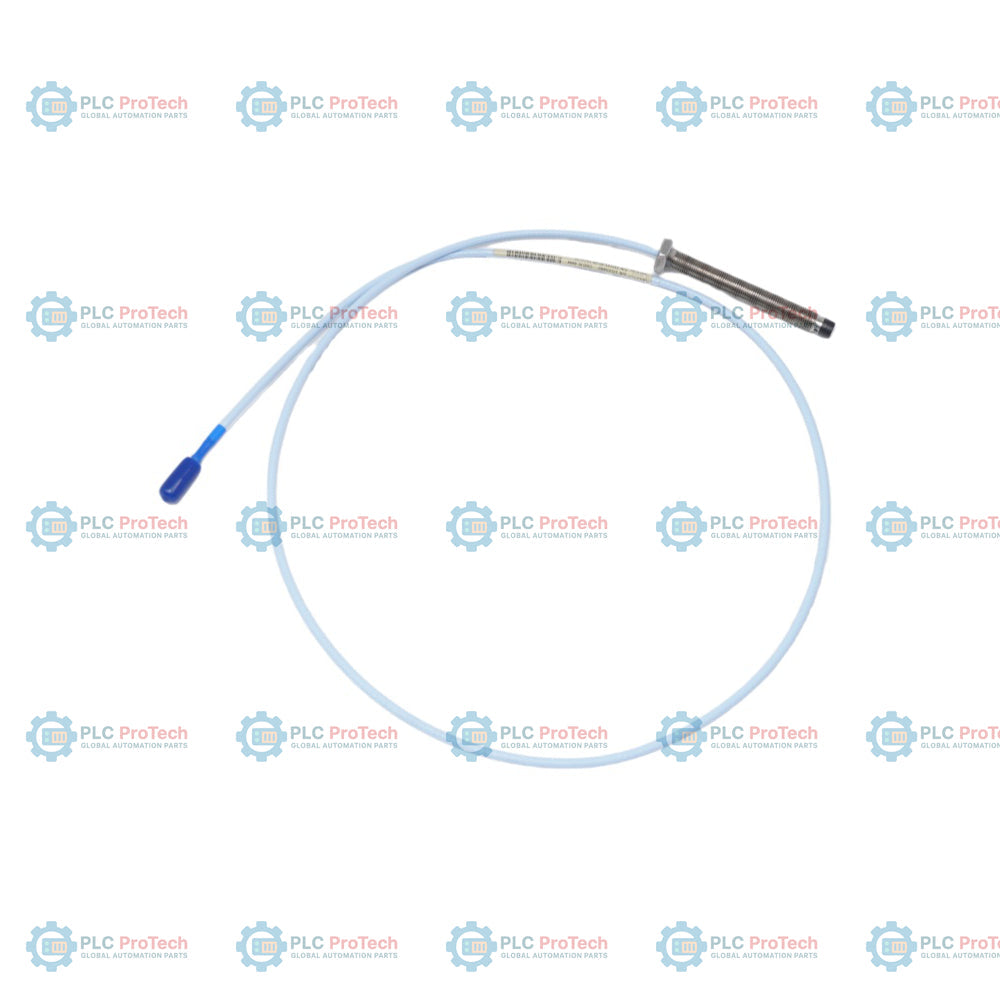

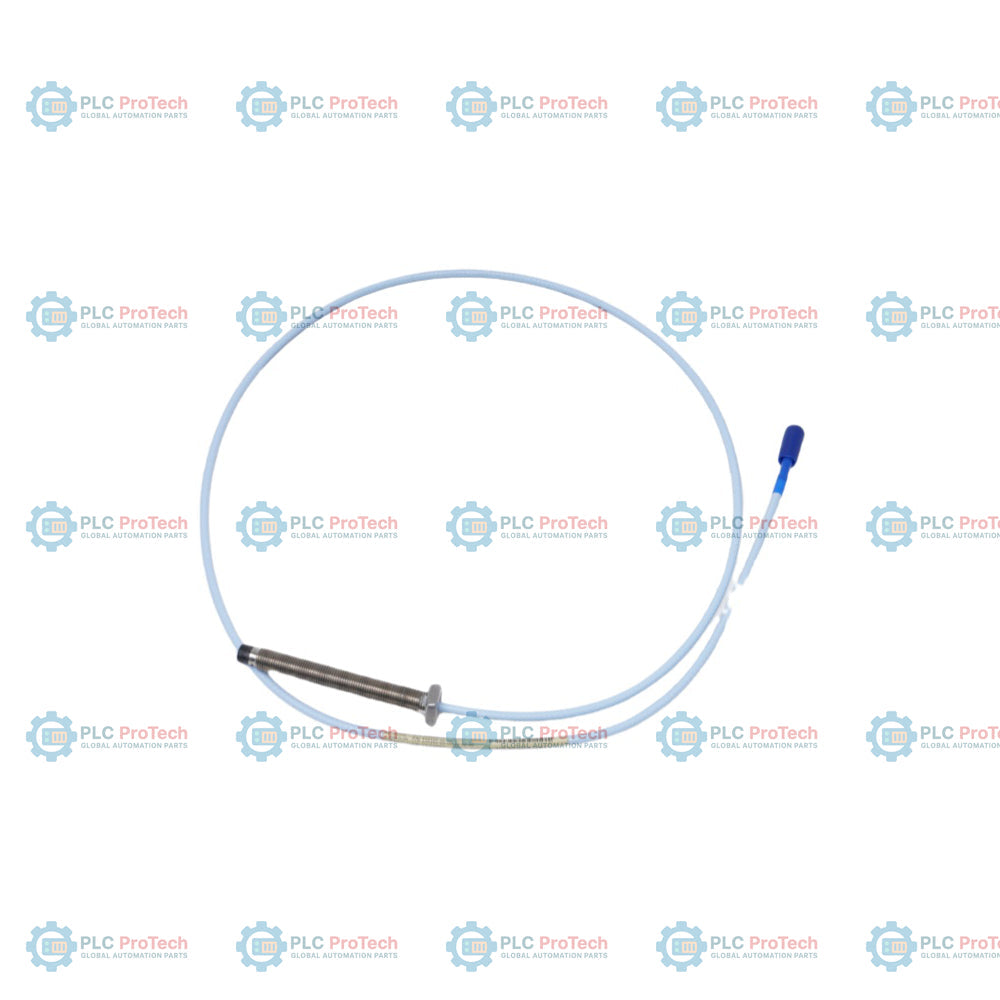

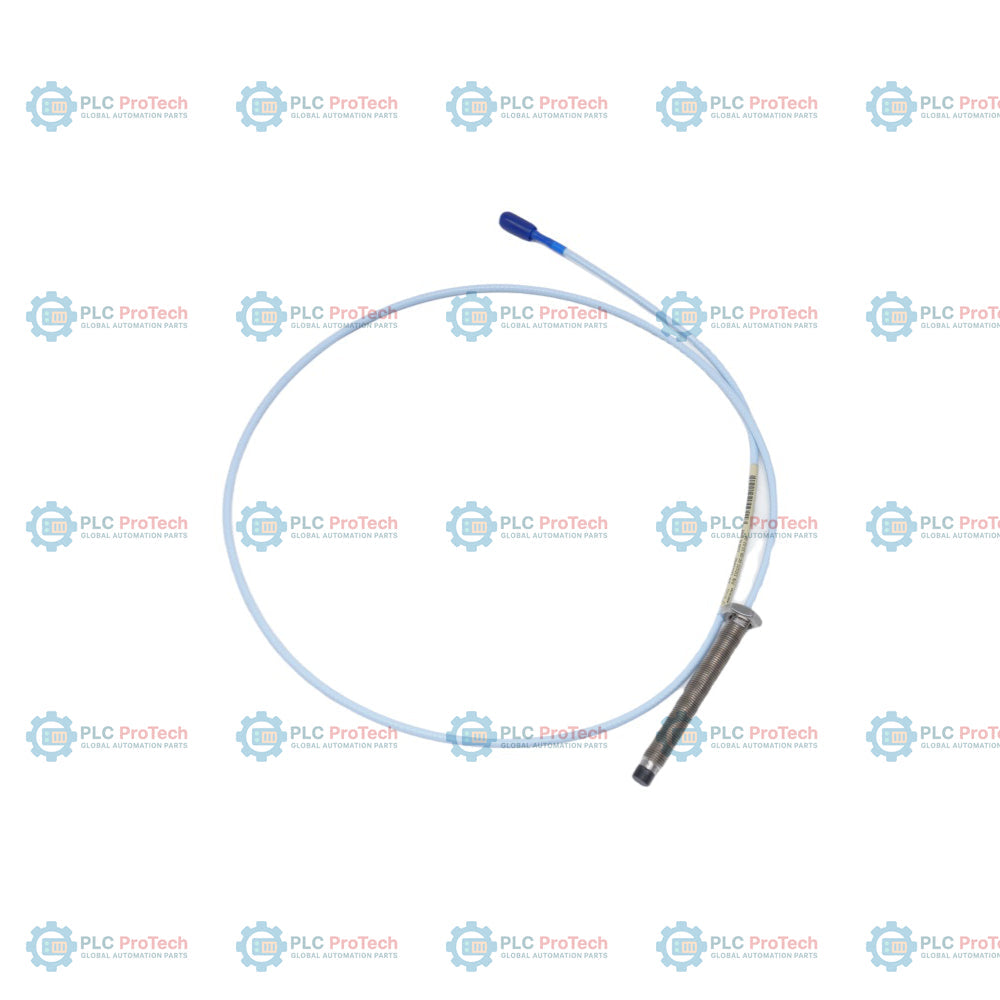

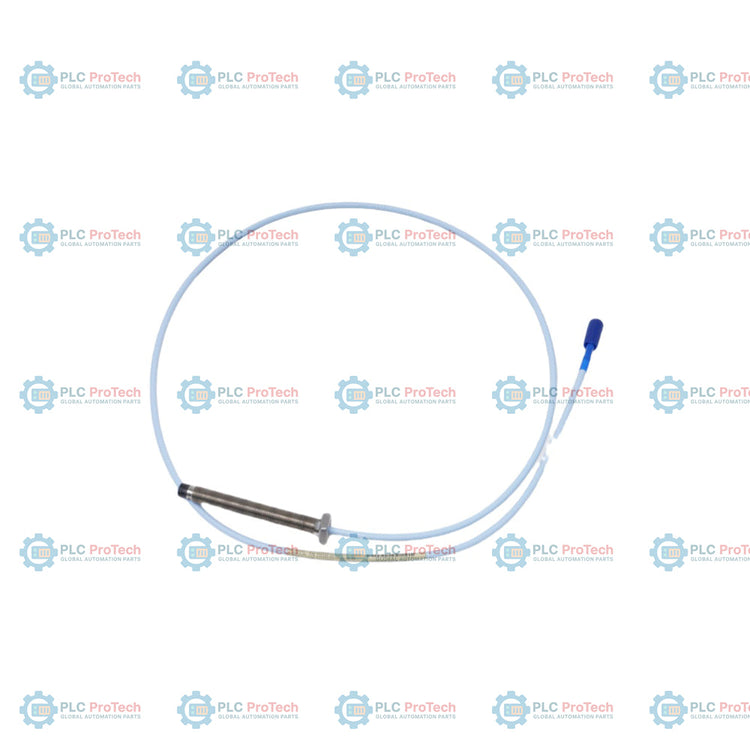

Bently Nevada 330103-00-08-10-12-00 3300 XL 8 mm Proximity Probe

Description

Option 12 (FluidLoc cable without connector protector) and Option 00 (0 mm unthreaded length) specify this M10 x 1 threaded 3300 XL 8 mm proximity probe configuration — 330103-00-08-10-12-00. This configuration features an 80 mm fully threaded overall case length (Option 08) and a 1.0 meter total length (Option 10) with no agency approvals required (Option 00).

This metric threaded probe operates as part of the 3300 XL 8 mm proximity transducer system, which measures static position and dynamic vibration. The FluidLoc cable option prevents oil or other fluids from leaking out of the machine through the cable's interior, making this configuration suitable for applications where containment of machine fluids is necessary. It connects directly to a 3300 XL extension cable and 3300 XL Proximitor sensor using the integrated miniature coaxial ClickLoc connector.

Features

• Option 00 unthreaded length specifies a fully threaded M10 x 1 metric steel case without unthreaded sections.
• Option 08 case length provides an 80 mm overall threaded case length for insertion depth adjustability.
• Option 10 total length provides a 1.0 meter (3.3 feet) integrated coaxial cable length.
• Option 12 ClickLoc connector and FluidLoc cable configuration seals internal cable voids against process fluid leakage.
• Option 00 agency approval indicates standard non-certified configuration where hazardous area approvals are not required.
• Compatible with 3300 XL 8 mm Proximitor sensors and 3300 XL extension cables to complete the monitoring circuit.

Applications

Typical industrial applications for this configuration include:

• Shaft vibration and axial position measurements on steam turbines, gas turbines, compressors, and pumps.
• Machinery lubrication environments requiring FluidLoc cable sealing to prevent oil migration.
• Standard industrial installations not subject to hazardous location certification requirements.
• Radial and thrust bearing housing installations utilizing metric M10 x 1 threaded mounting brackets.

Ordering Information

Technical Specifications

Connections and Interfaces

Installation Guidelines

To establish correct installation of the M10 x 1 metric thread probe, follow these guidelines:

• Thread Engagement: The maximum thread engagement length for the M10 x 1 thread is 15 mm. Exceeding this length may cause binding during installation.
• Gap Adjustment: Position the probe to a nominal gap of 1.27 mm (50 mils) from the target surface (or as specified by your specific calibration profile) to center the measurement within the 2.0 mm linear range.
• Cable Routing: Route the FluidLoc coaxial cable away from potential mechanical wear, moving machine elements, and high-voltage conduits to prevent signal interference. Avoid sharp bends less than the minimum recommended bend radius of 25.4 mm (1.0 in).
• Connector Connection: Secure the ClickLoc connectors finger-tight. Do not use pliers or excessive torque, which can damage the gold contacts. Ensure the connector pair is clean and dry.
• Grounding: Ensure the system shield is properly grounded at the monitor end of the loop only, with the probe case electrically isolated or grounded through the machine casing.

Compliance and Certifications

This specific SKU (Option 00) is a standard configuration that does not carry specific hazardous area certification markings. It is designed for use in general purpose environments where agency approvals are not required.
