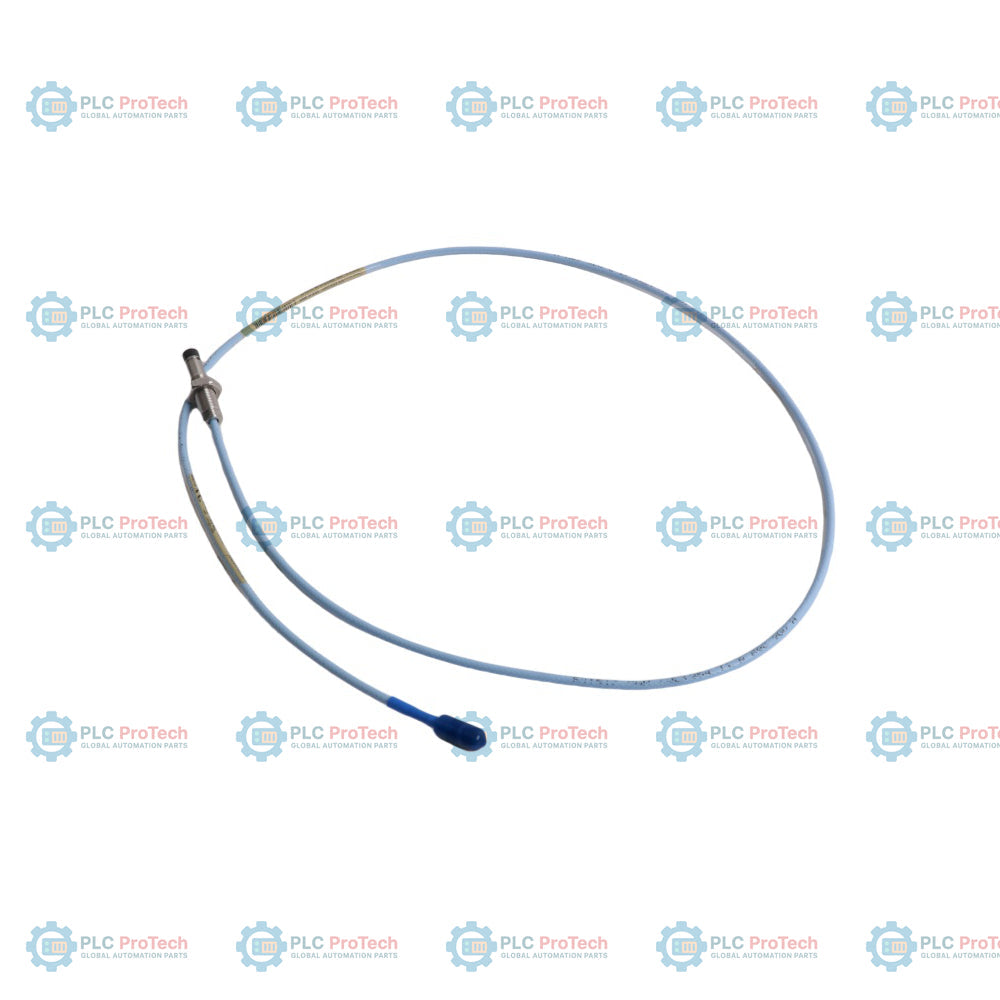

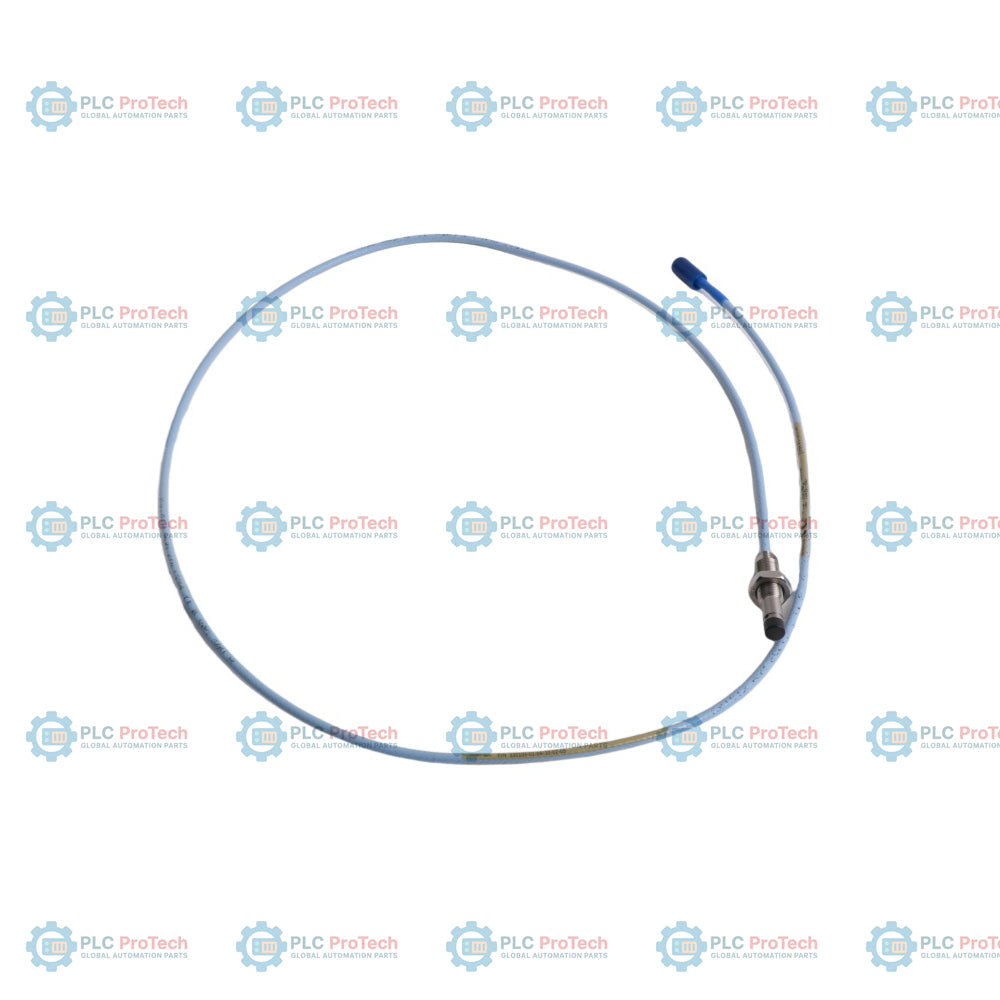

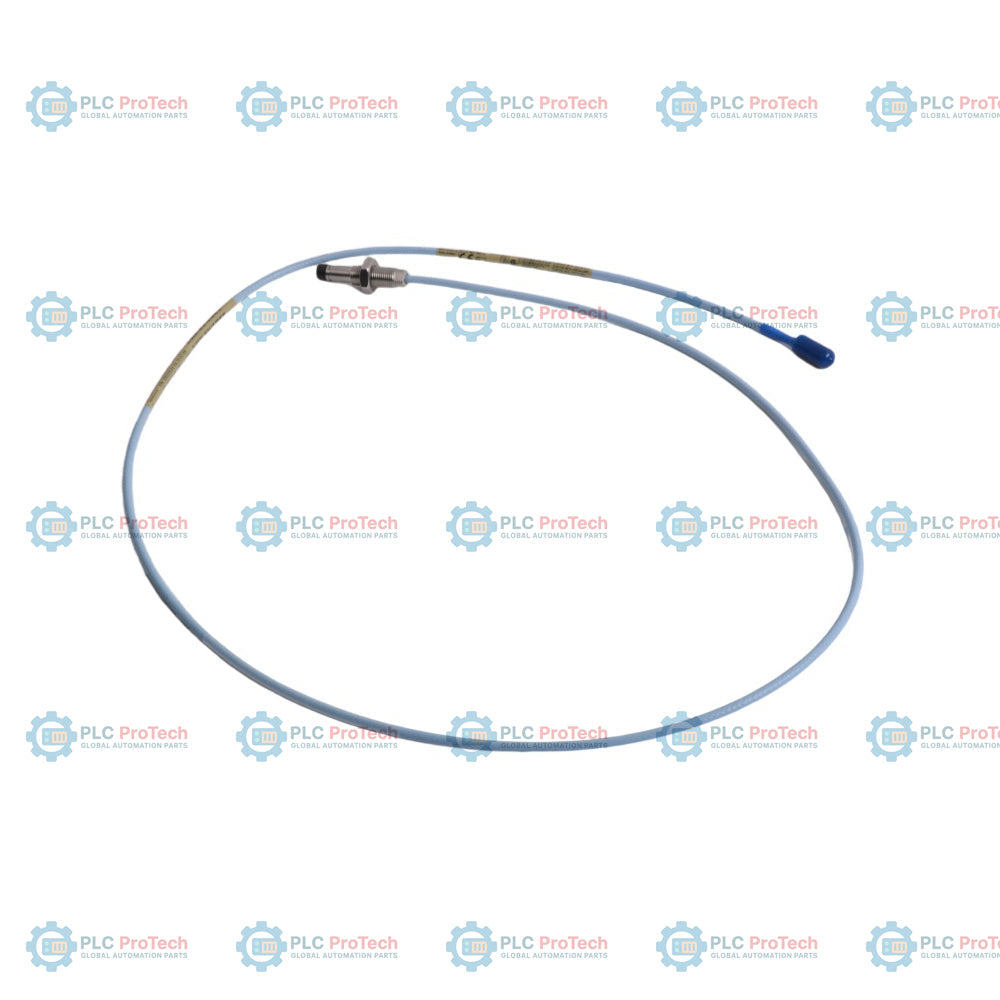

Option 01 (10 mm unthreaded length) and Option 04 (40 mm overall case length) specify the physical configuration of this M10 x 1 metric threaded proximity probe — 330103-01-04-10-02-05. This unarmored probe operates on eddy-current principles to measure static and dynamic distance, capturing shaft vibration and axial position feedback. Equipped with a 1.0-meter (3.3 feet) standard cable (Option 10) terminated in a miniature coaxial ClickLoc connector (Option 02), this specific model matches with 3300 XL Proximitor sensors and extension cables without requiring manual bench calibration.
This configuration incorporates Option 05 agency approvals, providing compliance with CSA, ATEX, and IECEx hazardous area standards. Choosing the unarmored version with metric M10 x 1 casing provides a compact mechanical envelope suitable for industrial machinery installations where external conduit armor is not required. The patented TipLoc molding provides a bond between the 8.0 mm probe tip and the stainless steel threaded body.
The probe is used for heavy-industry machinery protection and condition monitoring. Typical scenarios include:
| Option Segment | Code on This SKU | Description / Meaning |
|---|---|---|
| Orderable Part Number | 330103-01-04-10-02-05 | 3300 XL 8 mm Proximity Probe, M10 x 1 metric thread, without armor |
| A - Unthreaded Length Option | 01 | 10 mm unthreaded length |
| B - Overall Case Length Option | 04 | 40 mm overall case length |
| C - Total Length Option | 10 | 1.0 meter (3.3 feet) total length |
| D - Connector and Cable-Type Option | 02 | Miniature coaxial ClickLoc connector, standard cable |
| E - Agency Approval Option | 05 | CSA, ATEX, IECEx approvals |
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 330103-01-04-10-02-05 |
| Product Family | 3300 XL 8 mm Proximity Transducer System |
| Thread Size | M10 x 1 |
| Armor | None (without armor) |
| Unthreaded Length | 10 mm |
| Case Length | 40 mm |
| Total Cable Length | 1.0 m (3.3 ft) |
| Cable Type | Standard 75-ohm coaxial cable |
| Connector Type | Miniature male coaxial ClickLoc connector |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Operating Temperature Range | -52 degC to +177 degC (-62 degF to +350 degF) |
| Pressure Seal | Resists differential pressure up to 70 bar (1000 psi) between probe tip and case |
| Linear Range | 2.0 mm (80 mils), begins at 0.25 mm (10 mils) from target to 2.25 mm (90 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) +/- 5% (with standard 3300 XL components) |
| Nominal Probe DC Resistance | 7.59 +/- 0.50 ohms (center conductor to outer conductor) |
| Weight | 0.15 kg |
| Dimensions | 150 mm x 150 mm x 20 mm (H x W x D) (coiled probe size) |
| Connector Type | Connection Interface |
|---|---|
| Miniature male coaxial ClickLoc | Connects directly to standard coaxial female ClickLoc connector on 3300 XL extension cables |
Ensure standard engineering practices are followed during installation:
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330103-01-04-10-02-05
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 150g
Dimensions: 150 mm x 150 mm x 20 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
