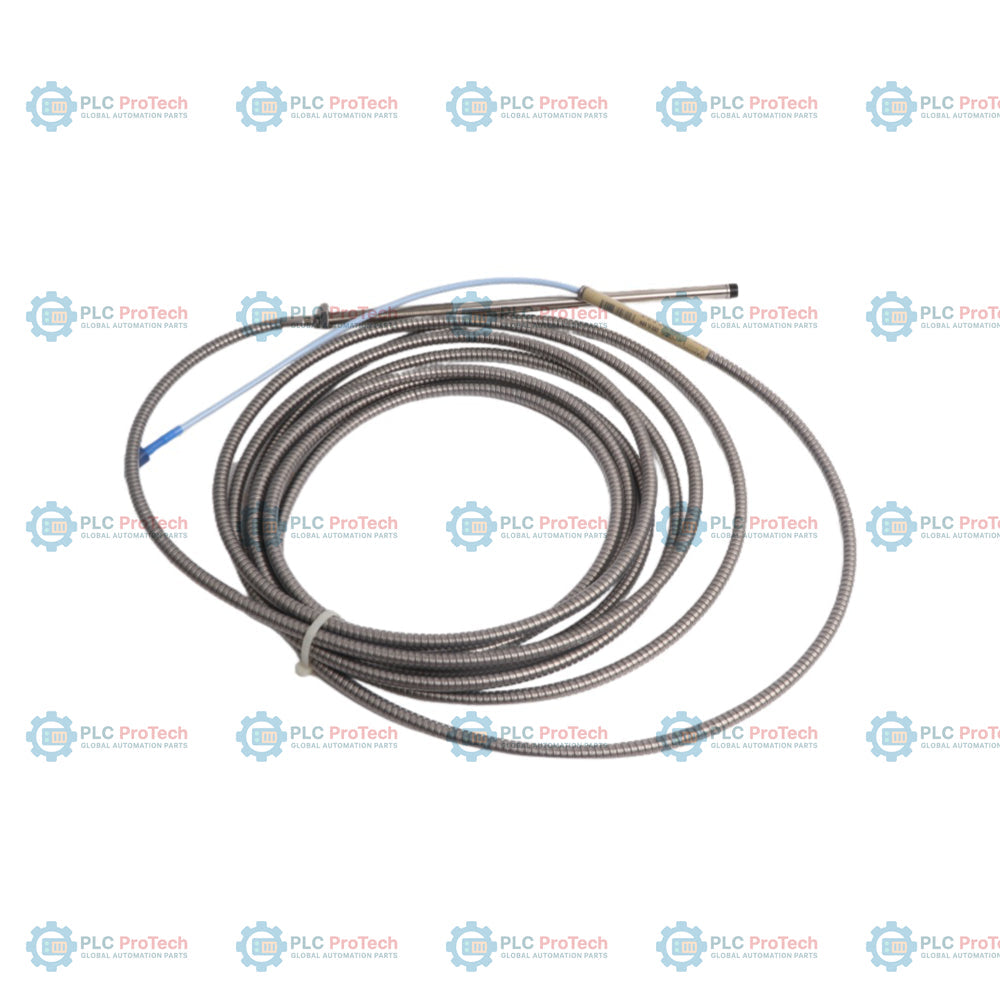

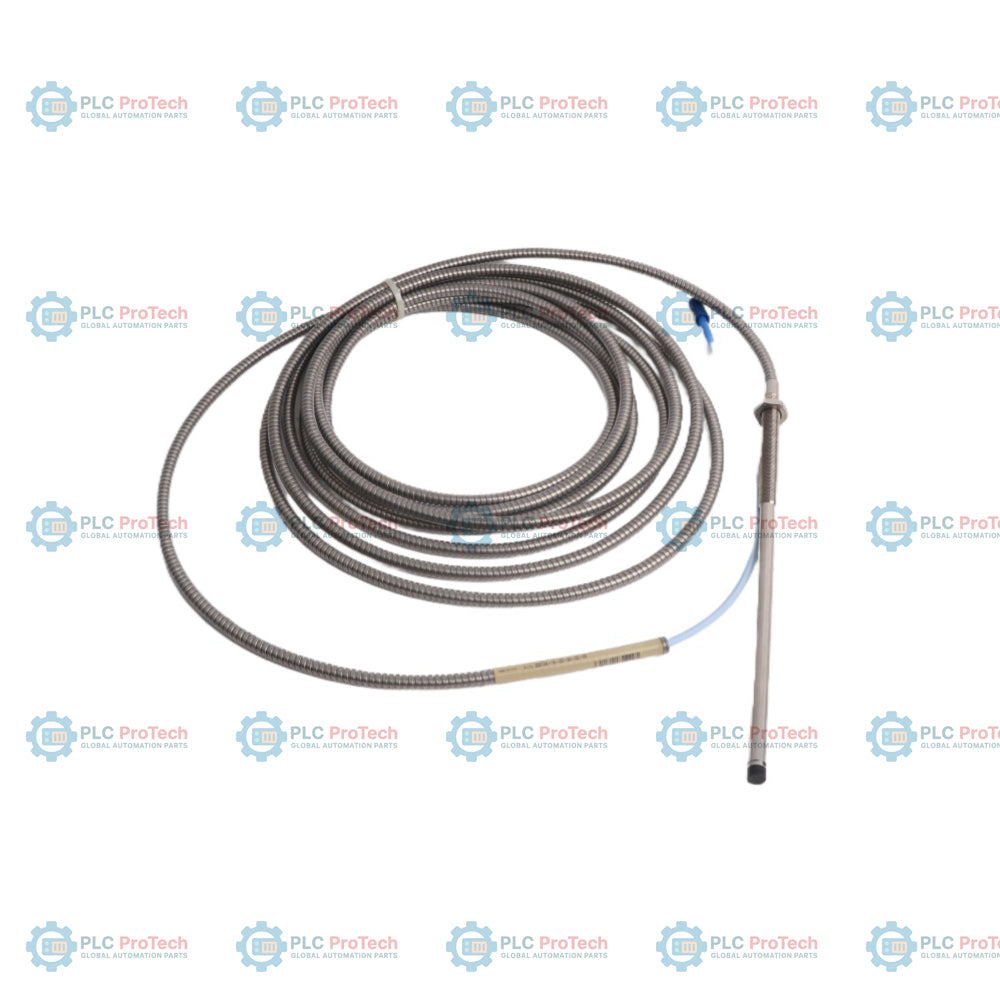

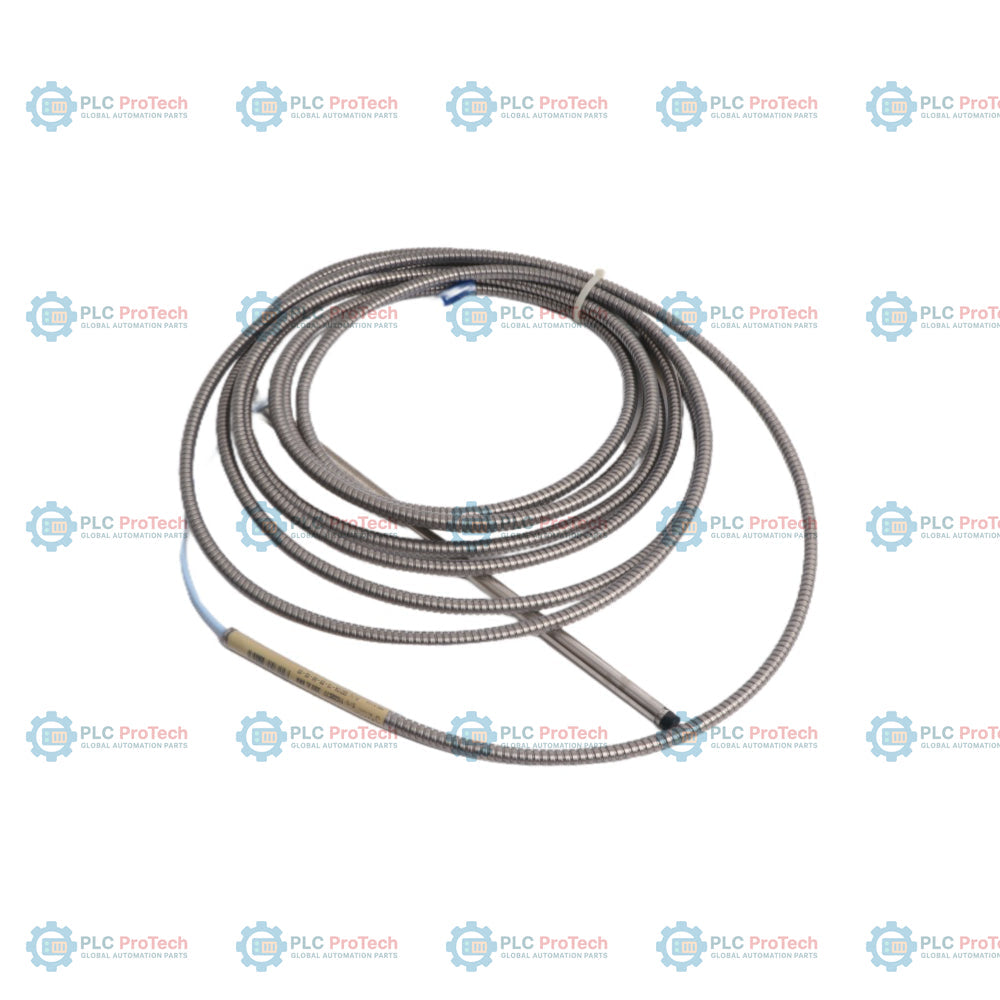

Bently Nevada 330104-15-25-10-02-05 3300 XL 8 mm Proximity Probe with Armor

SKU 330104-15-25-10-02-05

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Bently Nevada
Product No.: 330104-15-25-10-02-05
Origin United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.18 kg
Dimensions: 250 mm x 10 mm x 10 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

330104-15-25-10-02-05 specifies this 3300 XL 8 mm proximity probe configuration with M10 x 1 metric thread, stainless steel armor, a 150 mm unthreaded length (Option 15), a 250 mm overall case length (Option 25), a 1.0 meter total length (Option 10), a miniature coaxial ClickLoc connector (Option 02), and CSA/ATEX/IECEx hazardous area agency approvals (Option 05).

Unlike non-armored sibling variants like the 330103, this 330104 model is built with integrated stainless steel protective armor around the probe cable to resist mechanical damage and abrasion in demanding environments. The Option 02 configuration provides a standard miniature coaxial ClickLoc connector without an extra connector protector, facilitating direct integration into standard 3300 XL extension cables.

Features

M10 x 1 metric thread with integrated stainless steel armor for direct mechanical protection of the transducer cable.
Option 15 unthreaded length of 150 mm with a corresponding Option 25 case length of 250 mm.
Option 10 total length of 1.0 meter (3.3 feet) matches standard short-lead installation requirements.
Option 02 miniature coaxial ClickLoc connector provides a secure, snap-lock coaxial interface to the extension cable.
Option 05 agency approval package certifies the probe for CSA, ATEX, and IECEx hazardous area environments.
8.0 mm tip diameter with an eddy-current coil for non-contact displacement and vibration measurements.

Applications

Radial shaft vibration measurement on high-speed turbomachinery and compressors.
Axial thrust position tracking of industrial gas turbines, steam turbines, and generators.
Dynamic speed sensing and keyphasor reference phase detection on industrial rotating shafts.
Machinery protection and condition monitoring within hazardous processes requiring explosion-proof or intrinsically safe certifications.

Ordering Information

Option Segment	Code	Meaning
Orderable Part Number	330104-15-25-10-02-05	3300 XL 8 mm Proximity Probe with Armor, M10 x 1 thread
A - Unthreaded Length Option	15	150 mm
B - Overall Case Length Option	25	250 mm
C - Total Length Option	10	1.0 meter (3.3 feet)
D - Connector and Cable-Type Option	02	Miniature coaxial ClickLoc connector, standard cable
E - Agency Approval Option	05	CSA, ATEX, IECEx Approvals

Technical Specifications

Manufacturer	Bently Nevada (Baker Hughes)
Part Number	330104-15-25-10-02-05
Product Series	3300 XL Transducer System
Thread Size	M10 x 1 (metric)
Armor Type	Stainless steel armor sleeve
Unthreaded Length	150 mm
Case Length	250 mm
Total Length	1.0 meter (3.3 feet)
Connector Type	Miniature coaxial ClickLoc connector
Cable Type	Standard coaxial cable
Probe Tip Diameter	8.0 mm (0.31 in)
Recommended Gap	2.0 mm (80 mils)
Operating Temperature Range	-52 degC to +177 degC (-62 degF to +350 degF)
Differential Pressure Seal	Viton O-ring designed to seal pressure between probe tip and case
Dimensions	250 mm x 10 mm x 10 mm (H x W x D)
Weight	0.18 kg (approximate)

Installation Guidelines

Grounding: Maintain electrical isolation between the probe case and the machine casing to prevent ground loops.
Thread Engagement: Maximum thread engagement for M10 x 1 threads is 15 mm. Avoid exceeding this to prevent binding.
Cable Routing: Use conduit or cable trays to route the armored cable. Maintain a minimum bend radius of 25.4 mm (1.0 inch) for armored sections.
Probe Gapping: Set the physical gap to 2.0 mm (80 mils) which corresponds to the center of the linear calibration range (typically -10 VDC).
Connector Torque: Finger-tighten the miniature coaxial ClickLoc connectors. Do not use tools on the gold contacts.

Compliance and Certifications

CSA: Class I, Division 1, Groups A, B, C, D; Class II, Groups E, F, G; Class III
ATEX: II 1 G Ex ia IIC T1...T5 Ga
IECEx: Ex ia IIC T1...T5 Ga
CE Mark: Compliant with applicable European directives
RoHS: Compliant with directive restrictions on hazardous substances

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What do the Option 15 and Option 25 values mean on the 330104-15-25-10-02-05 probe?

Option 15 indicates an unthreaded length of 150 mm, and Option 25 indicates an overall case length of 250 mm. Because this probe uses metric threads (M10 x 1), both dimensions are defined in metric units of 10 mm increments.

What are the benefits of the stainless steel armor on this probe?

The integrated stainless steel armor protects the probe cable against physical wear, direct impact, and abrasion, which are common in heavy industrial machine housings.

Does this probe require a specific extension cable and Proximitor sensor?

Yes, this 1.0-meter probe is designed to be paired with a standard 3300 XL extension cable and a compatible 3300 XL Proximitor sensor to achieve a calibrated 5-meter or 9-meter total system length.

What certifications are provided under the Option 05 approval?

Option 05 provides hazardous area certifications including CSA, ATEX, and IECEx approvals, allowing the probe to be used in intrinsically safe and non-incendive installations.
