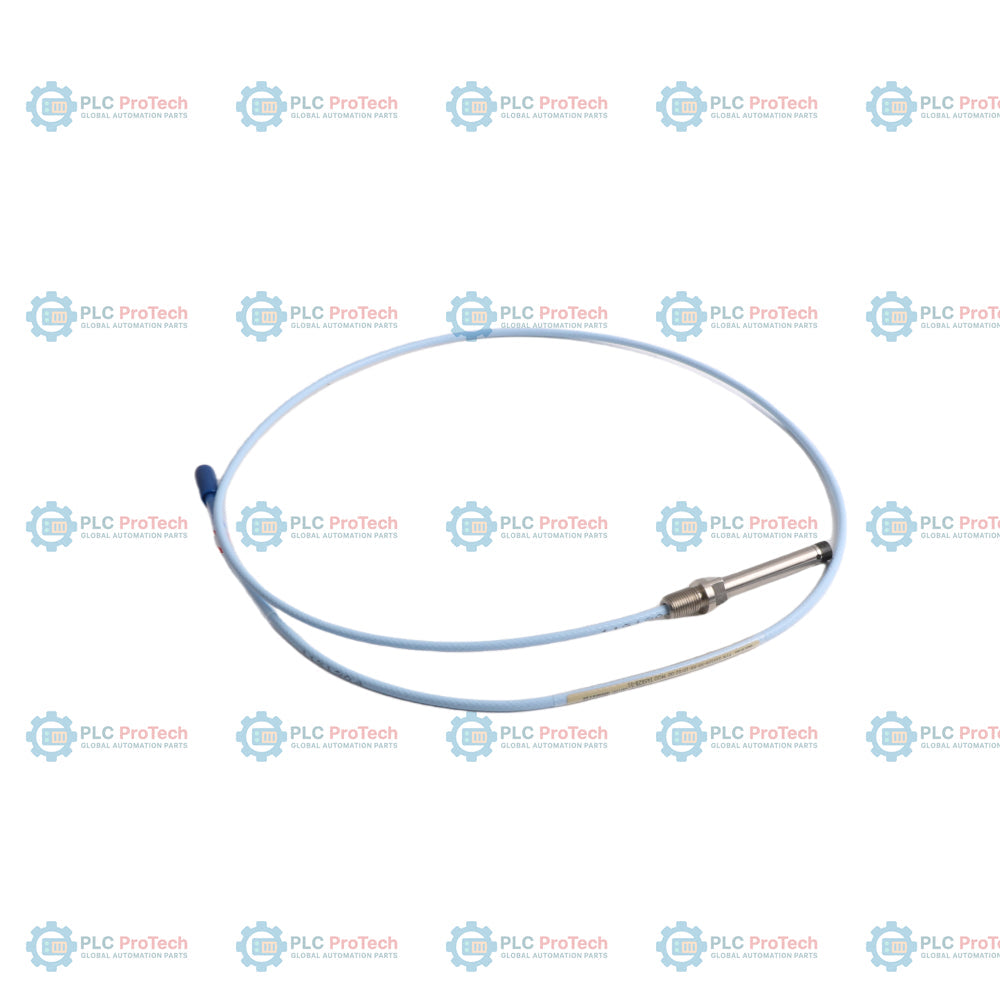

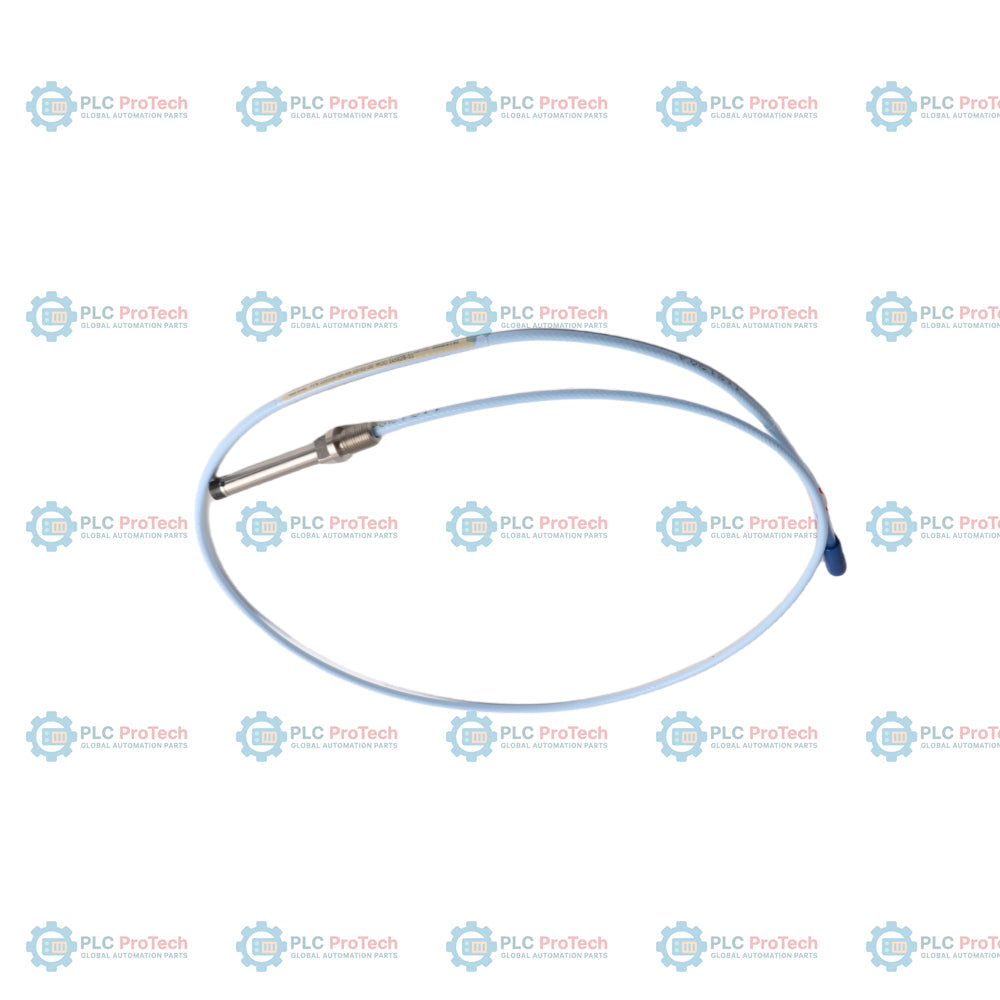

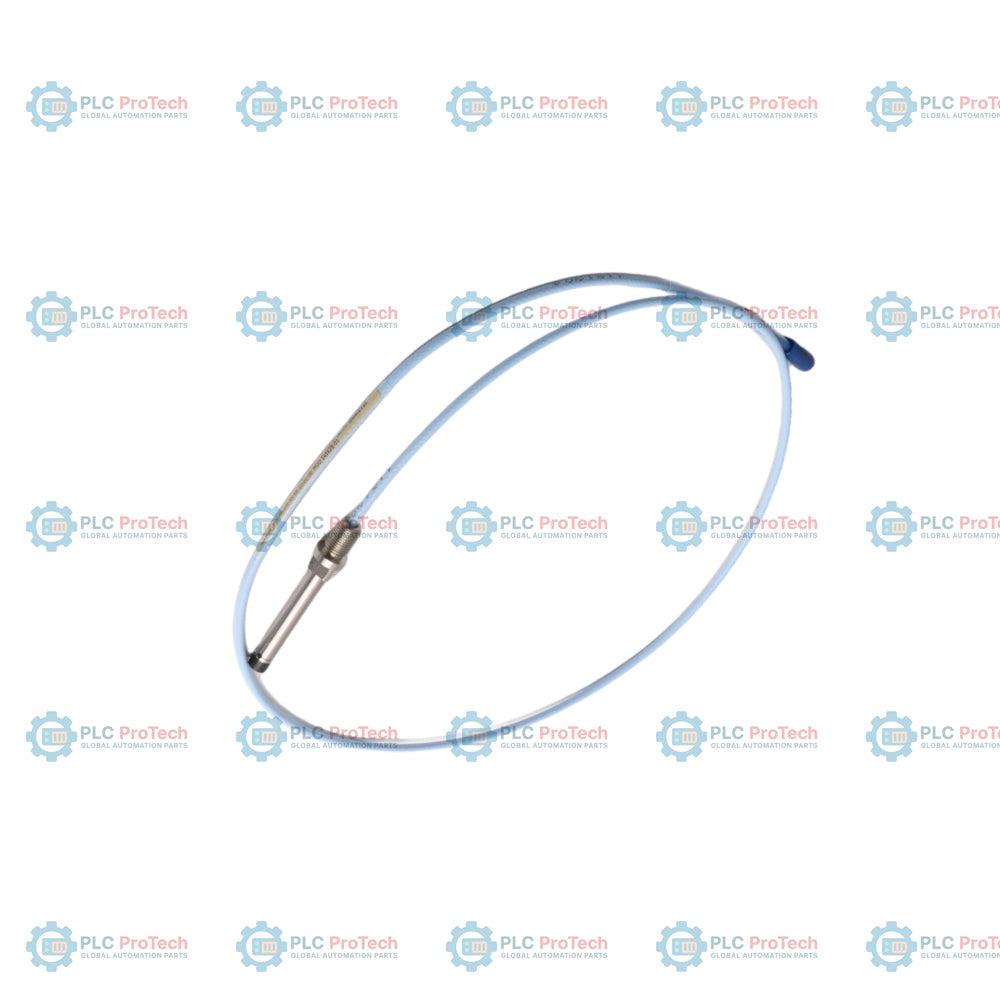

Option 10 (1.0 m total length) and Option 02 (ClickLoc, no connector protector) specify this 3300 XL 8 mm reverse mount proximity probe configuration — 330106-XX-XX-10-02-00. The 330106-XX-XX-10-02-00 is an eddy-current proximity probe featuring metric M10 x 1 threads, used for reverse mount sleeve installations in the 3300 XL 8 mm Proximity Transducer System. In this specific configuration, the XX-XX placeholder segments represent the standard reverse mount dimensions of 05 (5.0 mm unthreaded length) and 30 (30 mm overall case length). It features a 1.0-meter (3.3 feet) total cable length, terminated with a standard miniature coaxial ClickLoc connector without an integrated connector protector, and does not require hazardous area agency approvals.
Unlike armored variants or configurations utilizing FluidLoc cables, this probe uses standard unarmored coaxial cabling. This makes it ideal for clean, protected installations where the probe is mounted entirely inside a machinery housing or protective sleeve. The probe operates as part of a complete three-piece transducer system, pairing with a 3300 XL Proximitor sensor and a 3300 XL extension cable to measure radial shaft vibration, axial position, and speed on rotating industrial equipment.
Typical machinery protection and condition monitoring installations include:
| Option Segment | Code on This SKU | Meaning from Datasheet |
|---|---|---|
| Base Model | 330106 | 3300 XL 8 mm Reverse Mount Probe, M10 x 1 threads |
| A - Unthreaded Length | XX (05) | 5.0 mm (0.20 in) standard unthreaded length for reverse mount |
| B - Overall Case Length | XX (30) | 30 mm (1.2 in) standard overall case length for reverse mount |
| C - Total Length | 10 | 1.0 meter (3.3 feet) total probe length |
| D - Connector Type | 02 | Miniature coaxial ClickLoc connector, standard cable (no connector protector) |
| E - Agency Approval | 00 | No hazardous area agency approvals required |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 330106-XX-XX-10-02-00 |
| Transducer System | 3300 XL 8 mm Proximity Transducer System |
| Mounting Style | Reverse Mount |
| Thread Size | M10 x 1 metric threads |
| Tip Diameter | 8.0 mm (0.31 in) |
| Unthreaded Length | 5.0 mm (0.20 in) |
| Case Length | 30 mm (1.2 in) |
| Total Length | 1.0 meter (3.3 feet) |
| Connector Type | Miniature male coaxial ClickLoc connector |
| Cable Type | Standard coaxial cable, unarmored (3.68 mm outside diameter) |
| Recommended Torque | Tighten M10 x 1 case threads to 7.5 N-m (66 in-lb) maximum |
| Maximum Thread Engagement | 15 mm |
| Linear Range | 2.0 mm (80 mils), starting at approximately 0.25 mm (10 mils) from the target |
| System Sensitivity | 7.87 V/mm (200 mV/mil) when paired with 3300 XL Proximitor sensor |
| Operating Temperature | -52 degC to +177 degC (-62 degF to +350 degF) |
| Pressure Seal Range | Seals differential pressure between probe tip and connector |
| Weight | 323 g |
| Dimensions | 30 mm x 10 mm x 10 mm (H x W x D) (Probe body dimensions) |
Ensure the following installation practices are observed for optimal performance:
This product configuration is ordered under Option 00 (Agency Approval: Not required). It is designed for standard, non-hazardous industrial areas. For explosive atmospheres requiring ATEX, IECEx, or CSA certifications, please select the Option 05 variant.
