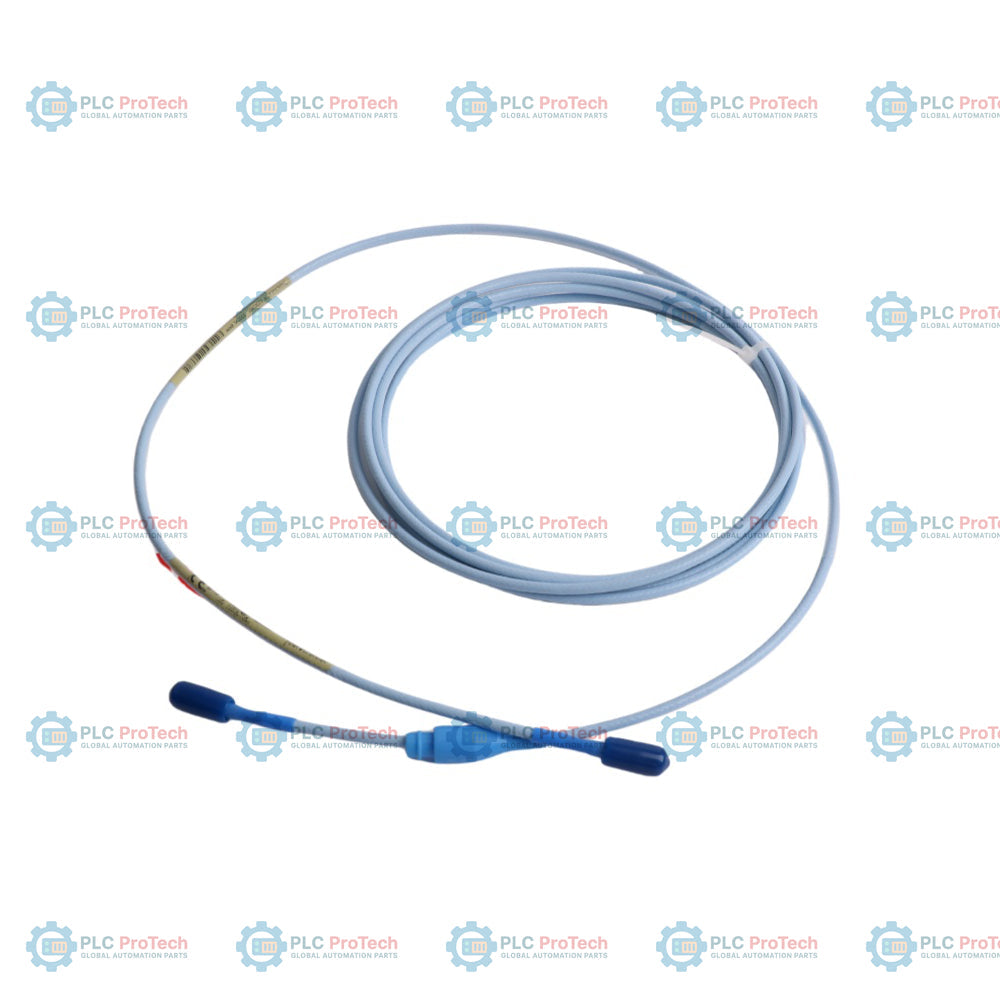

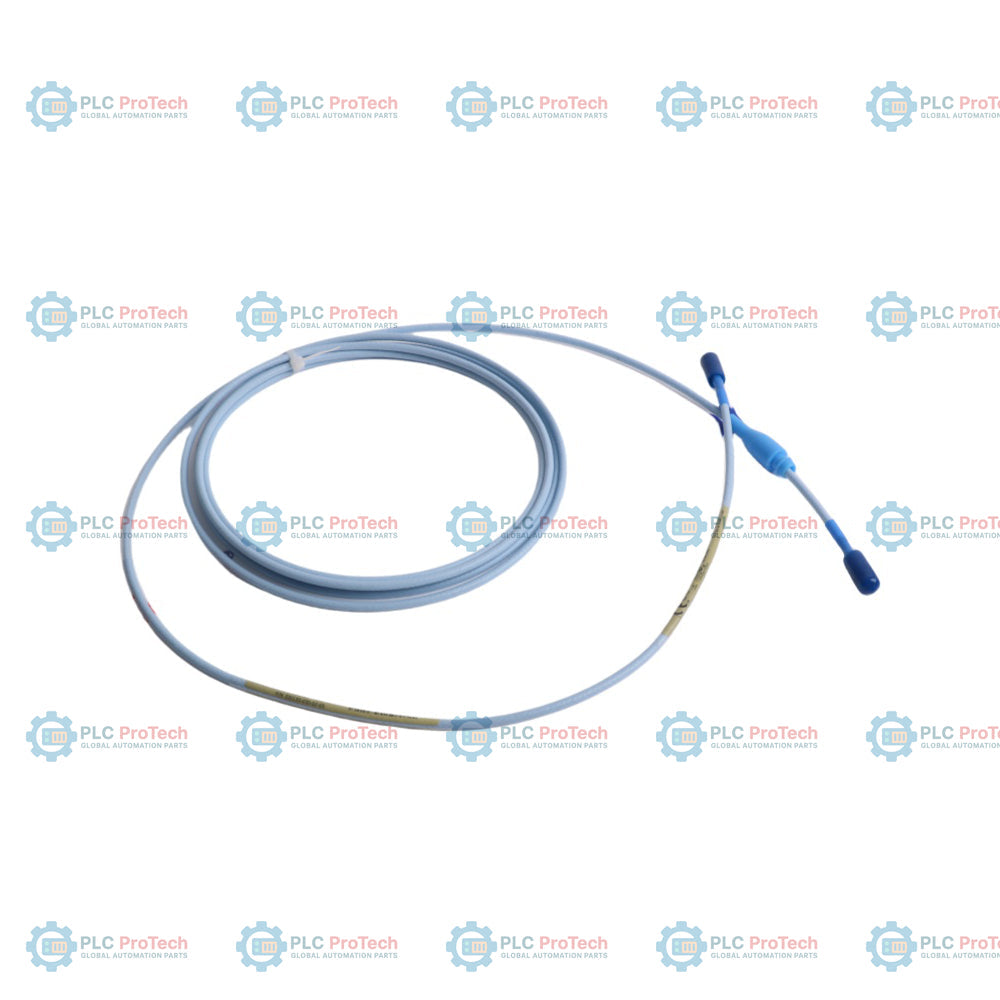

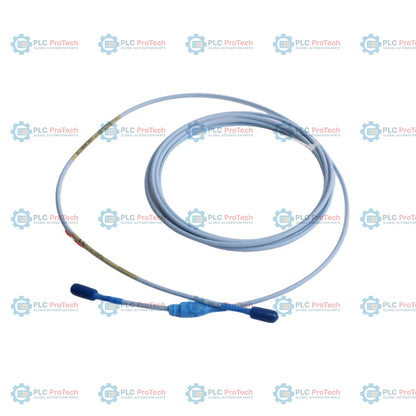

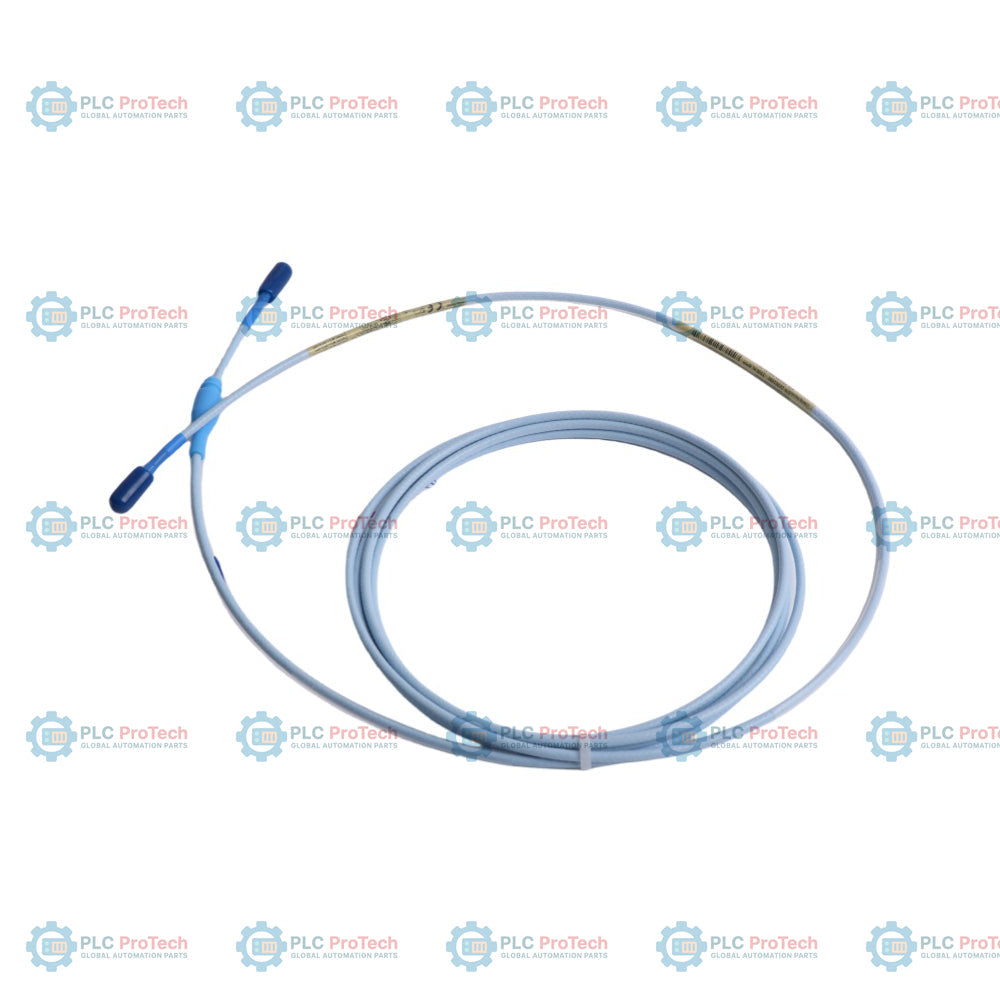

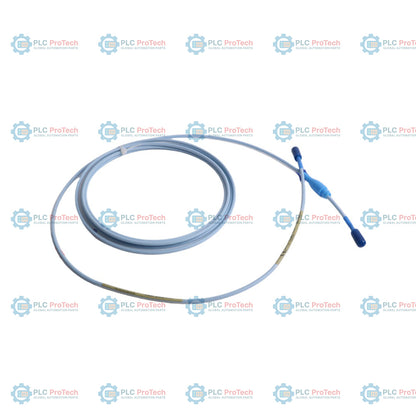

Bently Nevada 330130-030-00-05 3300 XL Standard Extension Cable

SKU 330130-030-00-05

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Bently Nevada
Product No.: 330130-030-00-05
Origin United States
Product Type: 3300 XL Standard Extension Cable
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.14 kg
Dimensions: 35 mm x 220 mm x 220 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

330130-030-00-05: 3300 XL standard extension cable specifies this particular transducer cable configuration, featuring a 3.0-meter length, unarmored standard coaxial construction, and certified hazardous area approvals. This cable forms a connection bridge between a 3300 XL 8 mm proximity probe and a 3300 XL Proximitor sensor, transferring high-frequency eddy-current signals with minimal degradation.

This unarmored standard configuration (Option 00) is used in conduit-protected routing or clean industrial environments where mechanical abrasion is not a concern, differentiating it from armored variants like option 01. The 3.0-meter length (Option 030) must be matched with a compatible probe length to achieve the required 5.0-meter or 9.0-meter total system length.

Features

Cable Length: 3.0 meters (9.8 feet) of triaxial cable.
Cable Option: Standard FEP insulated triaxial cable without protective armor.
Agency Approval: Option 05 offers CSA, ATEX, and IECEx hazardous area certifications.
Connection Interface: Miniature male coaxial ClickLoc connector on one end, miniature female coaxial ClickLoc connector on the other.
Characteristic Impedance: Nominal 75 ohm triaxial system impedance.

Applications

Typical industrial applications include:

Steam and gas turbine vibration monitoring systems.
Hydroelectric generator shaft displacement and thrust position measurement.
Centrifugal compressor and pump shaft vibration monitoring.
Gearbox shaft bearing clearance and oil film monitoring.
Machinery protection in petrochemical and chemical processing plants.

Ordering Information

Option Segment	Code Value	Description / Meaning
Base Model	330130	3300 XL Standard Extension Cable
A: Cable Length Option	030	3.0 meters (9.8 feet)
B: Connector Protector and Cable Option	00	Standard cable (unarmored, no connector protector)
C: Agency Approval Option	05	CSA, ATEX, IECEx Approvals (for hazardous locations)

Technical Specifications

Parameter	Value / Specification
Manufacturer	Bently Nevada (Baker Hughes)
Model / Part Number	330130-030-00-05
Cable Length	3.0 meters (9.8 feet)
Cable Type	Standard coaxial cable, FEP insulated
Capacitance	69.9 pF/m (21.3 pF/ft) typical
Core Resistance (R_core)	0.66 ohm +/- 0.10 ohm (center conductor to center conductor)
Jacket Resistance (R_jacket)	0.20 ohm +/- 0.04 ohm (outer conductor to outer conductor)
Maximum Cable Diameter	3.70 mm (0.15 in)
Connector Material	Gold-plated brass or gold-plated beryllium copper
Operating and Storage Temperature	-52 degC to +177 degC (-62 degF to +350 degF)
Connector Torque	Finger tight
Weight	0.14 kg
Dimensions (Coiled Package)	35 mm x 220 mm x 220 mm (H x W x D)

Connections and Interfaces

Connector End	Type	Connection Interface Details
Probe Connection End	Miniature Female Coaxial ClickLoc	Connects to the miniature male ClickLoc coaxial connector on the 3300 XL 8 mm probe
Proximitor Connection End	Miniature Male Coaxial ClickLoc	Connects to the miniature female ClickLoc coaxial connector on the 3300 XL Proximitor sensor

Installation Guidelines

Ensure the sum of the extension cable length and the probe length matches the calibrated Proximitor sensor length (typically 5.0 meters or 9.0 meters total).
Maintain a minimum bend radius of 25.4 mm (1.0 inch) to prevent internal core damage.
Hand-tighten connectors only ("finger tight"). Over-tightening with tools can damage the gold plating and ClickLoc mechanism.
Use conduit or protective packaging when routing in high-vibration or abrasive environments to prevent outer sheath wear.
Isolate field wiring from power lines and high-voltage electrical machinery to minimize electromagnetic interference.

Compliance and Certifications

CSA/C-US: Class I, Zone 0, AEx/Ex ia IIC T4/T5 Ga; Class I, Div 1, Groups A, B, C, D; Class II, Groups E, F, G; Class III
ATEX/IECEx: II 1 G, Ex ia IIC T4/T5 Ga; Ex nA IIC T4/T5 Gc; Ex ec IIC T4/T5 Gc
CE Mark: Compliant with EMC Directive 2014/30/EU and RoHS Directive 2011/65/EU
SIL Rating: SIL 2 compliant

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What does the 330130-030-00-05 model code represent?

This code represents a Bently Nevada 3300 XL Standard Extension Cable with a length of 3.0 meters (030), a standard unarmored coaxial cable configuration (00), and CSA/ATEX/IECEx hazardous area certifications (05).

What is the total system length of a transducer system with this cable?

The total length depends on the companion probe. A 3.0-meter extension cable is paired with a 2.0-meter probe to establish a 5.0-meter total system length, or with a 6.0-meter probe to establish a 9.0-meter total system length.

Is this extension cable armored?

No, the Option 00 specifies a standard coaxial cable without protective stainless steel armor. It is best suited for installations where the cable is routed inside conduit or protected cable trays.

What certifications does this cable possess?

The Option 05 designates North American and international hazardous area certifications, including CSA, ATEX, and IECEx approvals for intrinsically safe and non-incendive environments.
