Bently Nevada 330130-080-10-00 3300 XL Standard Extension Cable

Description

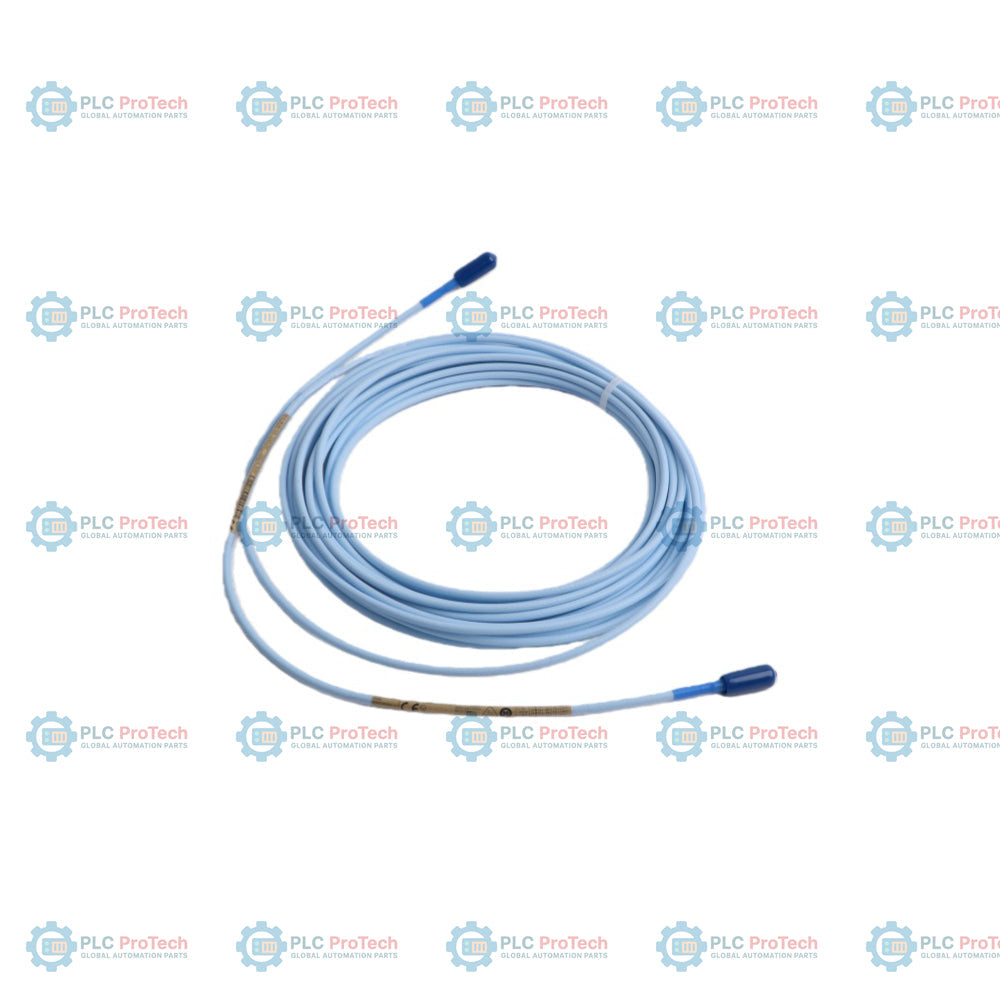

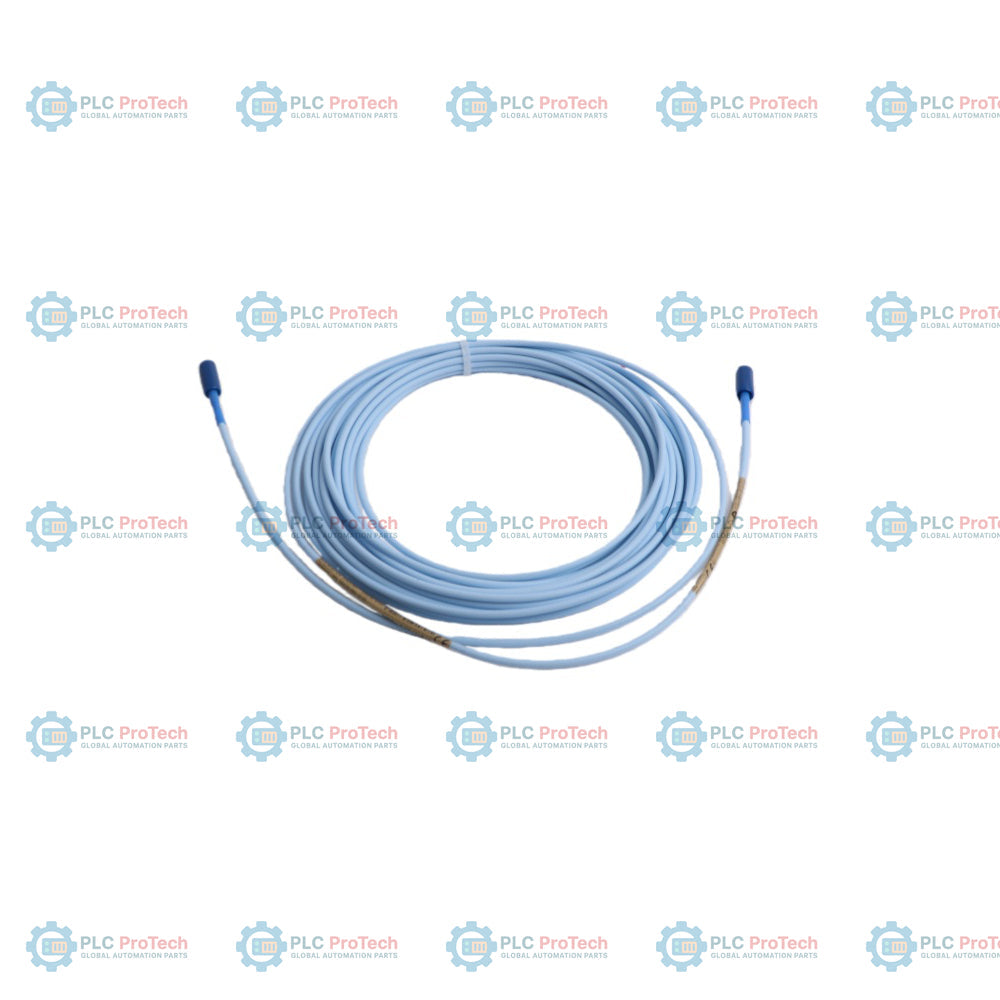

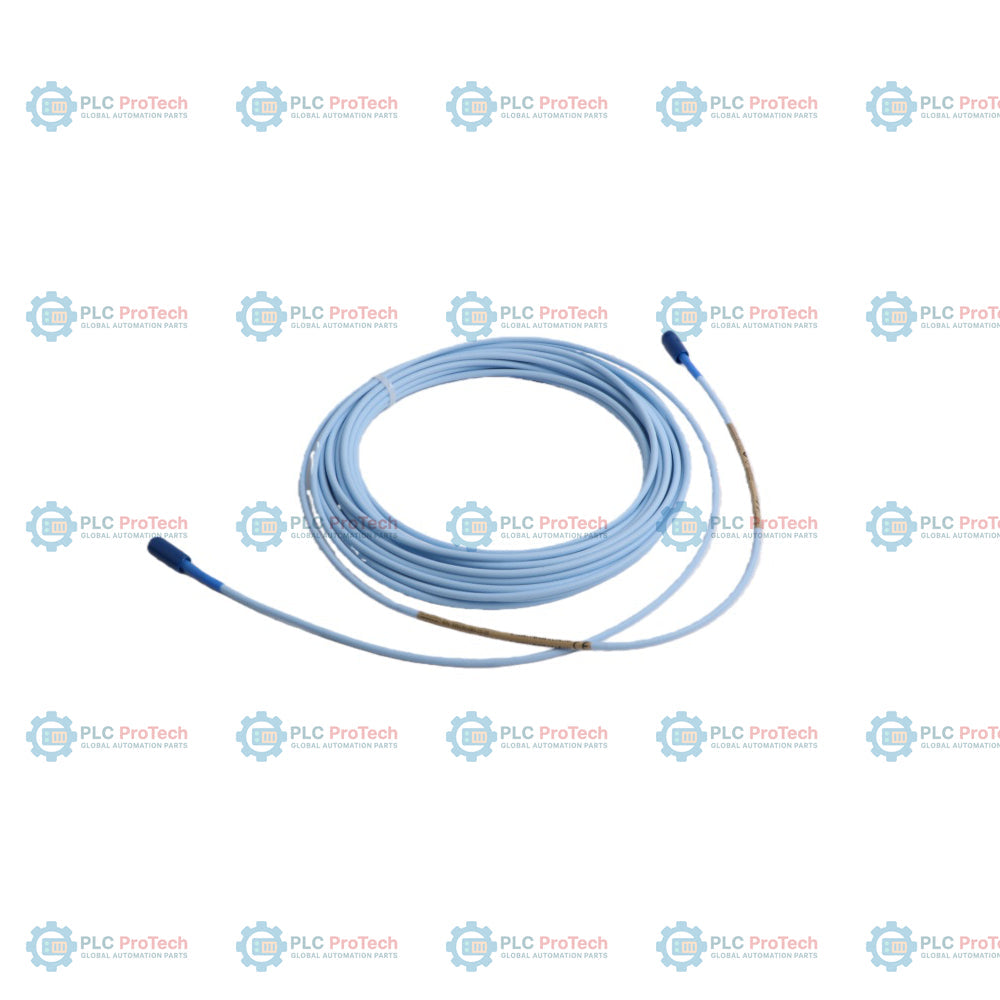

330130-080-10-00: 3300 XL standard extension cable configuration, featuring an 8.0 m cable length, FluidLoc cable option, and no agency approval requirements. This configuration functions as a link in the 3300 XL 8 mm proximity transducer system, connecting the proximity probe to the Proximitor sensor. It utilizes gold-plated coaxial connectors to maintain signal integrity for shaft vibration, displacement, and position measurements in rotating machinery.

This configuration differs from standard 3300 XL cables in its use of the FluidLoc option (Option 10), which prevents lubricating oil or other process fluids from migrating through the interior of the cable. Unlike armored configurations or standard standard cables, this variant provides an unarmored FluidLoc barrier without a connector protector. It is typically selected for machinery installations where physical conduit provides mechanical protection, but fluid sealing along the cable run is necessary to prevent leakage outside the machine casing.

Features

• Cable Length Option: 8.0 meters (26.2 feet) total length, designed to form a 9.0-meter system when combined with a 1.0-meter probe.
• FluidLoc Technology (Option 10): Internal block design prevents wicking of oils and process liquids through the interior of the triaxial cable.
• Fluorinated Ethylene Propylene (FEP) Insulation: High chemical resistance and thermal stability across industrial environments.
• ClickLoc Gold-Plated Connectors: Male and female miniature coaxial connectors provide corrosion resistance and secure, finger-tight locking.
• High Pull Strength: Patented CableLoc design provides up to 330 N (75 lbf) of pull strength to protect the connection.

Applications

• Industrial rotating machinery including steam turbines, gas turbines, centrifugal compressors, and generators.
• Environments where process fluids or lubricating oils are present and must be prevented from leaking along the cable routing.
• Retrofits and new installations of 3300 XL 8 mm proximity transducer systems requiring a 9.0-meter total system length.

Ordering Information

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Install the 3.94 mm cable through protective conduit to safeguard against physical damage, mechanical wear, or sharp bends.
• Hand-tighten the gold-plated ClickLoc connectors until they click; do not use pliers or other tools unless joining with a non-XL stainless steel connector.
• Verify that the total combined length of the probe and this 8.0-meter extension cable matches the 9.0-meter calibration of the paired Proximitor sensor.
• Maintain a minimum bend radius of 25.4 mm (1.0 in) along the entire cable run.

Compliance and Certifications

• CE compliant (satisfies European RFI/EMI immunity when paired with the 3300 XL Proximitor sensor).
• RoHS compliant.
• Note on hazardous areas: This specific configuration (-00 approval option) does not carry hazardous area certifications. For Chinese hazardous area certifications (NEPSI and CCC), the optional -CN suffix package must be specified.
