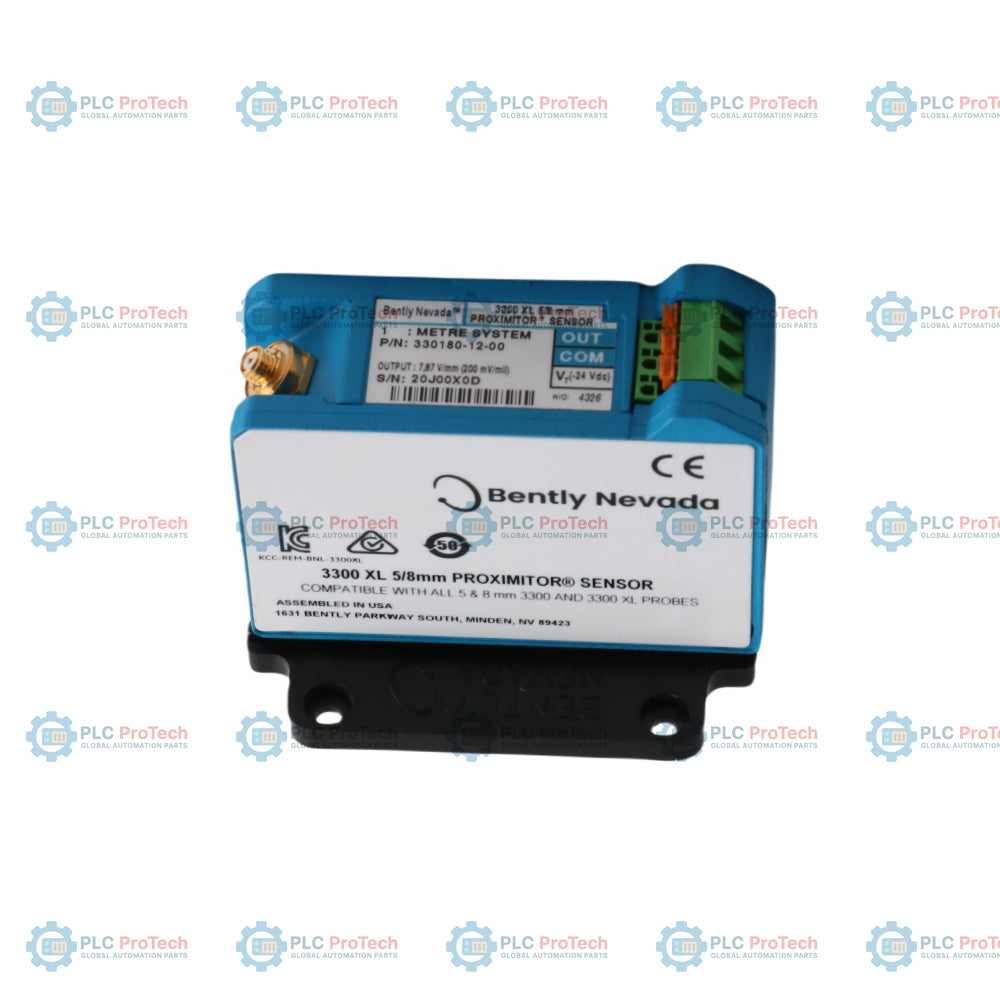

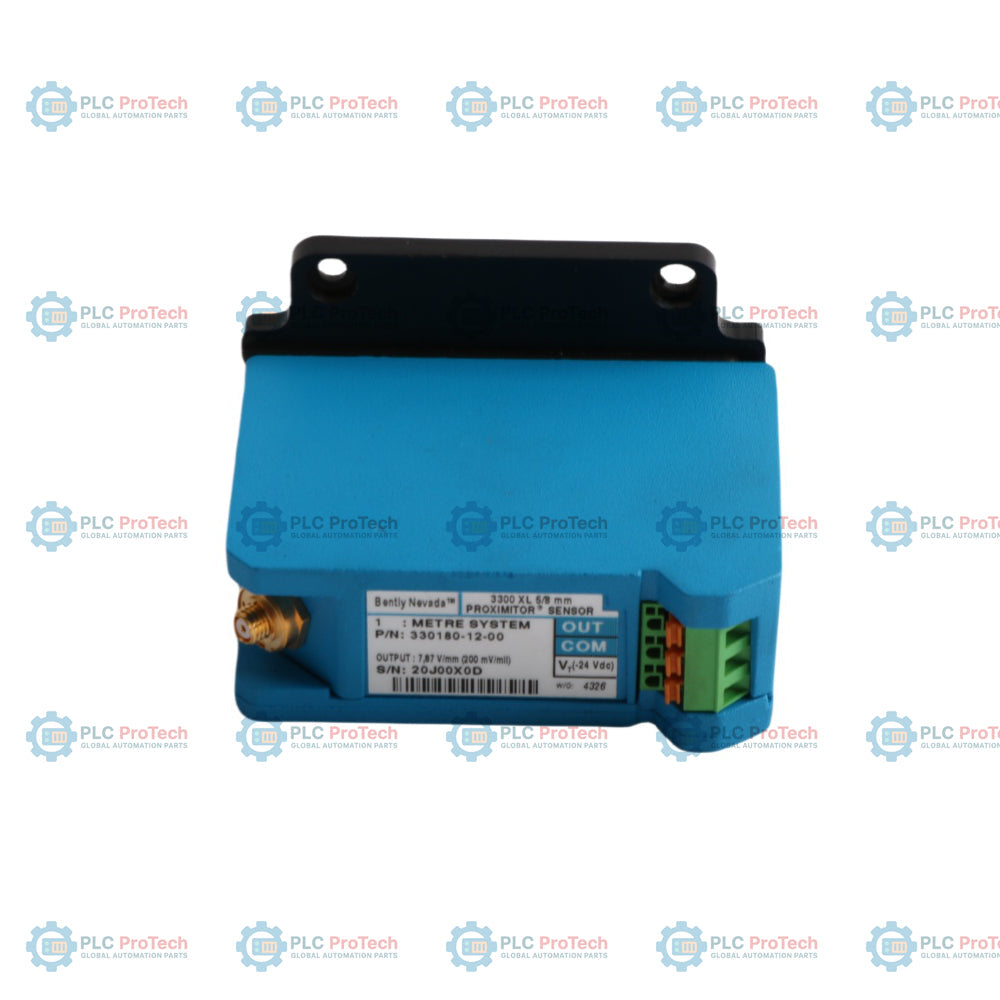

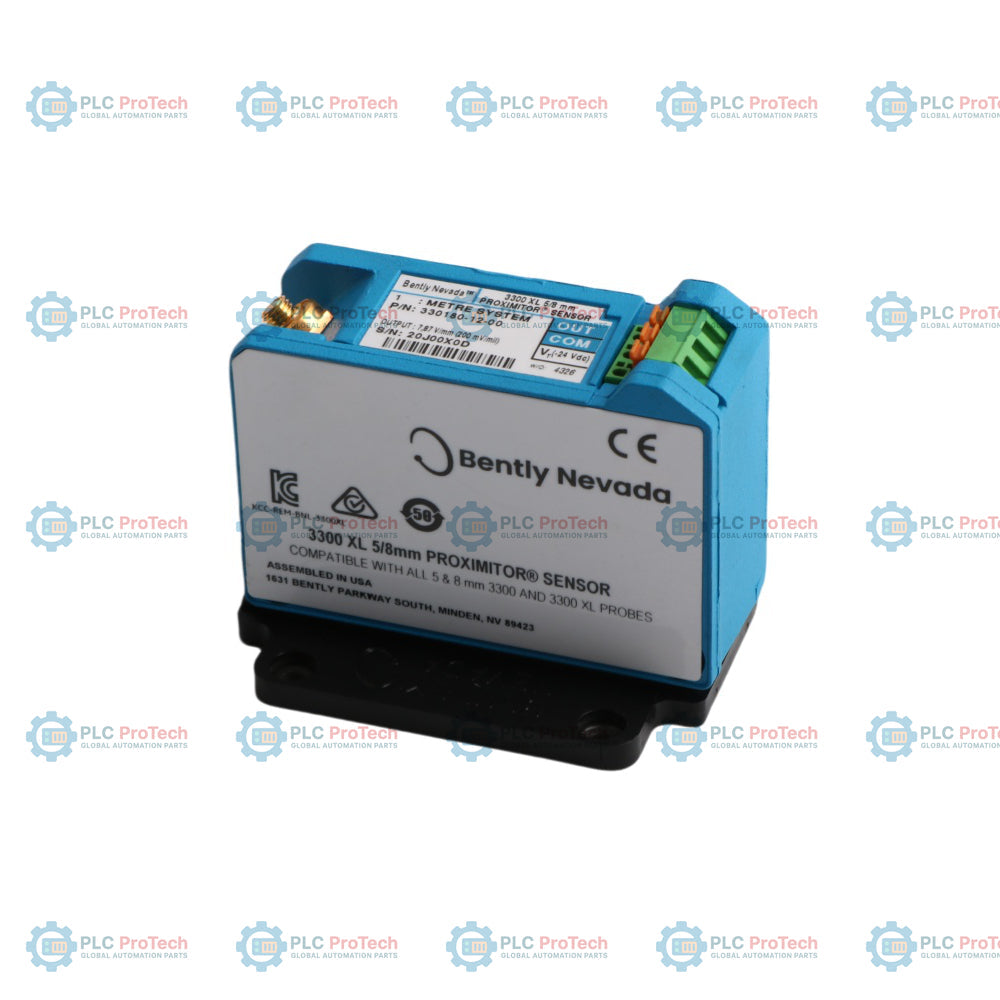

330180-12-00: 3300 XL Proximitor Sensor configured for a 1.0 meter total system length with no mounting hardware (Option 12) and without agency approvals (Option 00).
This configuration pairs with a 1.0 meter proximity probe and extension cable system to process raw eddy-current signal data. It provides an analog displacement output for machinery protection and monitoring networks, converting the physical gap distance into a proportional voltage signal of -200 mV/mil. The 330180-12-00 converts high-frequency RF signal fluctuations into a standard -1 Vdc to -17 Vdc analog output, which corresponds to a 2.0 mm (80 mil) linear measurement range when used with compatible components. This model is supplied as a standalone module without panel-mount or DIN-rail plates, intended for direct installation into custom mounting brackets or replacement of existing sensors within pre-fitted enclosures.
The 330180-12-00 Proximitor Sensor is deployed in machine monitoring loops across heavy-industry assets, including:
| Option / Segment | Code on This SKU | Meaning from Datasheet |
|---|---|---|
| Orderable Part Number | 330180-12-00 | 3300 XL Proximitor Sensor |
| A - Total Length and Mounting | 12 | 1.0 meter (3.3 feet) system length, no mounting hardware |
| B - Agency Approval | 00 | Not required / Standard configuration |
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 330180-12-00 |
| Device Type | Proximitor Sensor |
| System Compatibility | 3300 XL 8 mm Proximity Transducer System |
| Total System Length | 1.0 meter (3.3 feet) |
| Power Supply Range | -17.5 Vdc to -26 Vdc (at 12 mA maximum current draw) |
| Output Resistance | 50 ohms |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils) |
| Operating Temperature Range | -52 degC to +100 degC |
| Storage Temperature Range | -52 degC to +105 degC |
| Terminal Connection Type | SpringLoc terminal block (accepts 0.2 to 1.5 mm2 / 16 to 24 AWG wire) |
| Enclosure Material | A308 aluminum housing |
| Dimensions | 81.3 mm x 61.0 mm x 50.8 mm (H x W x D) |
| Weight | 0.246 kg |
| Terminal Label | Function Description |
|---|---|
| OUT | Proportional voltage analog output signal |
| COM | System common reference ground |
| VT | Negative DC power supply input (-17.5 Vdc to -26 Vdc) |
| COAXIAL INPUT | Coaxial connection terminal for proximity probe or extension cable |
