Bently Nevada 330908-00-46-05-02-05 3300 NSv Proximity Probe

Description

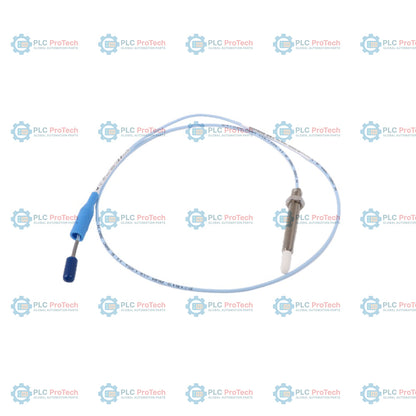

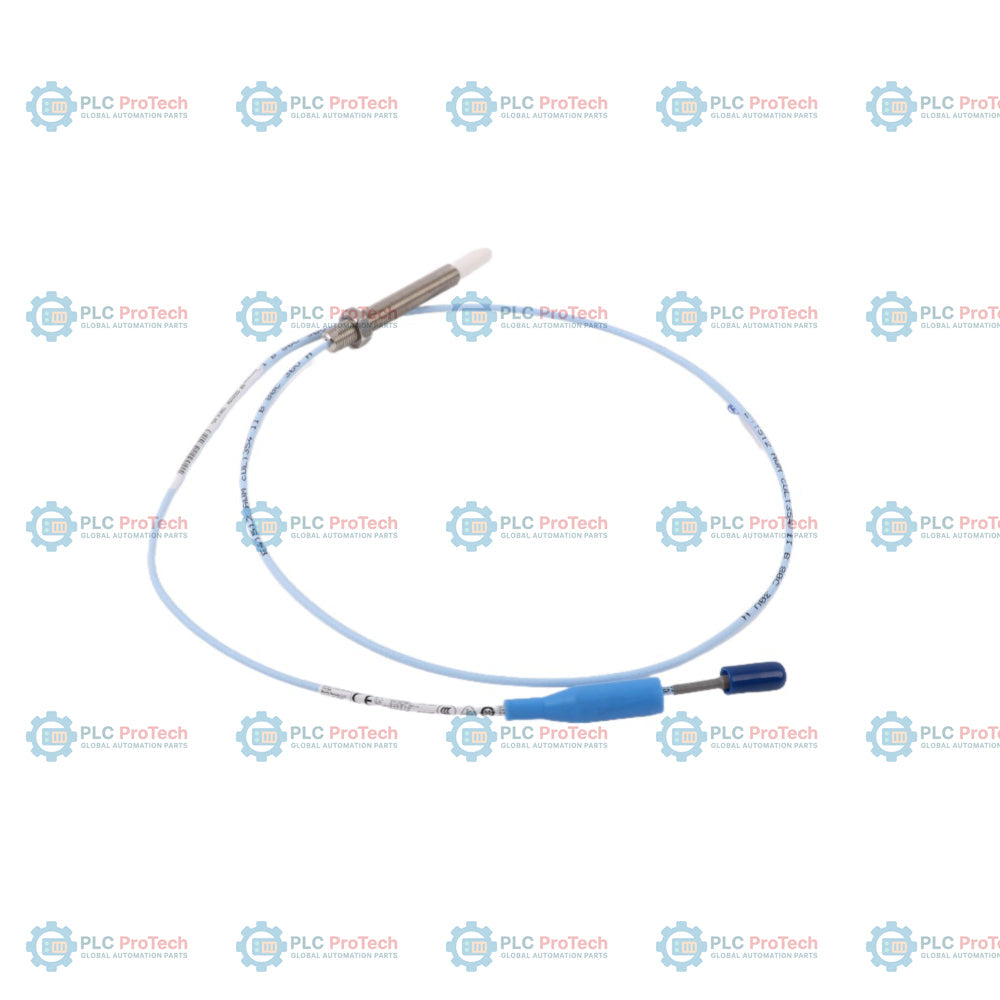

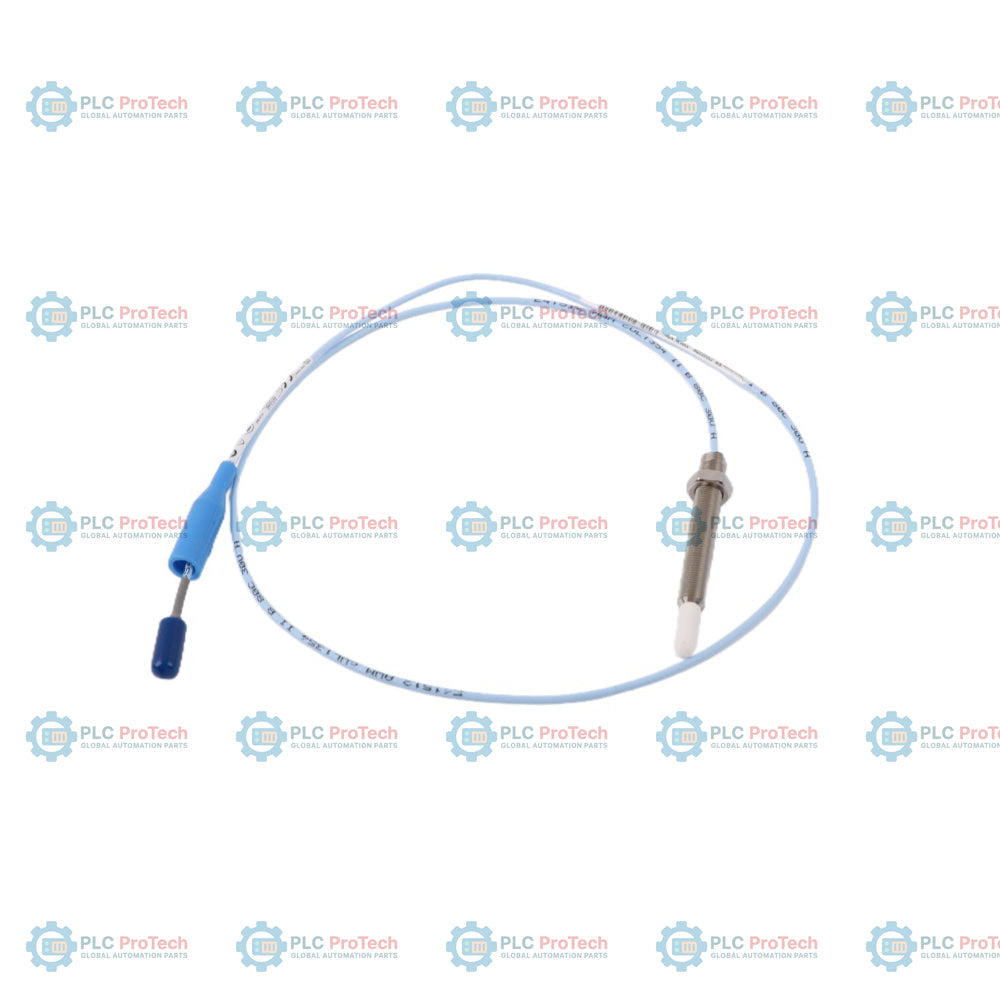

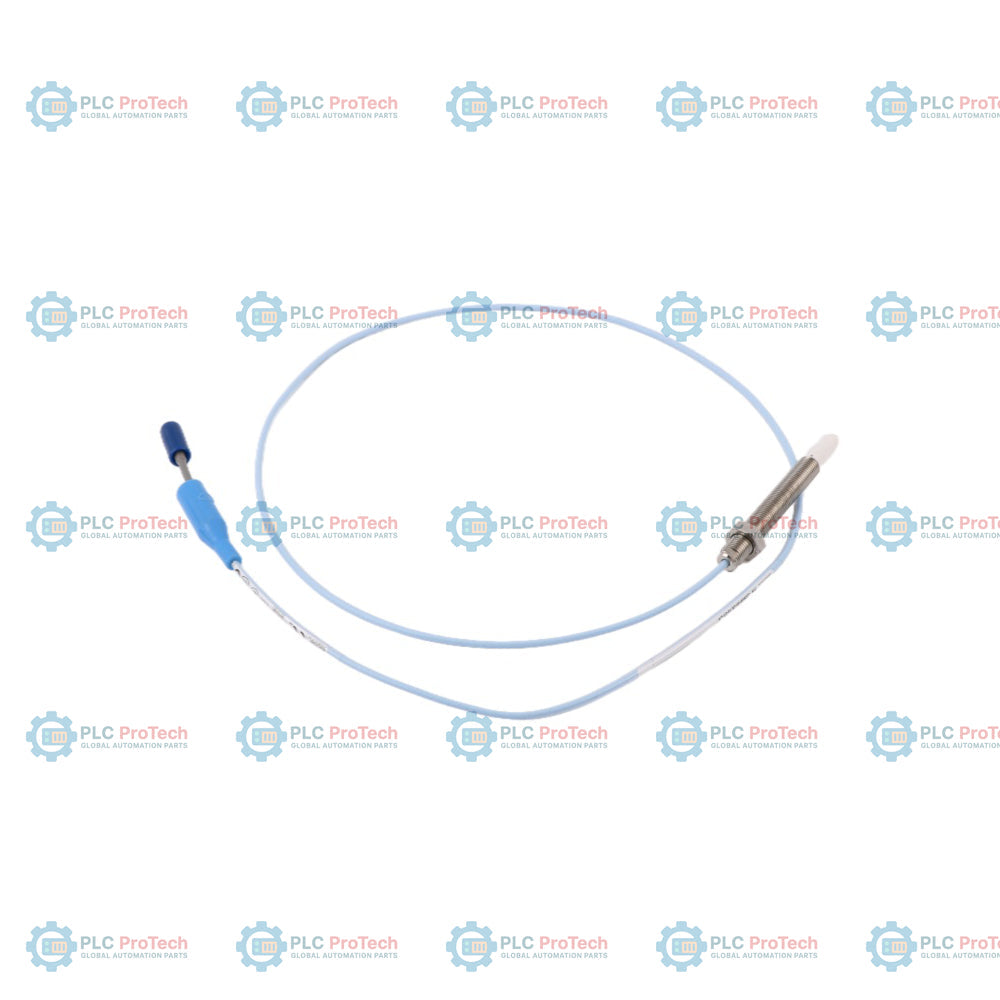

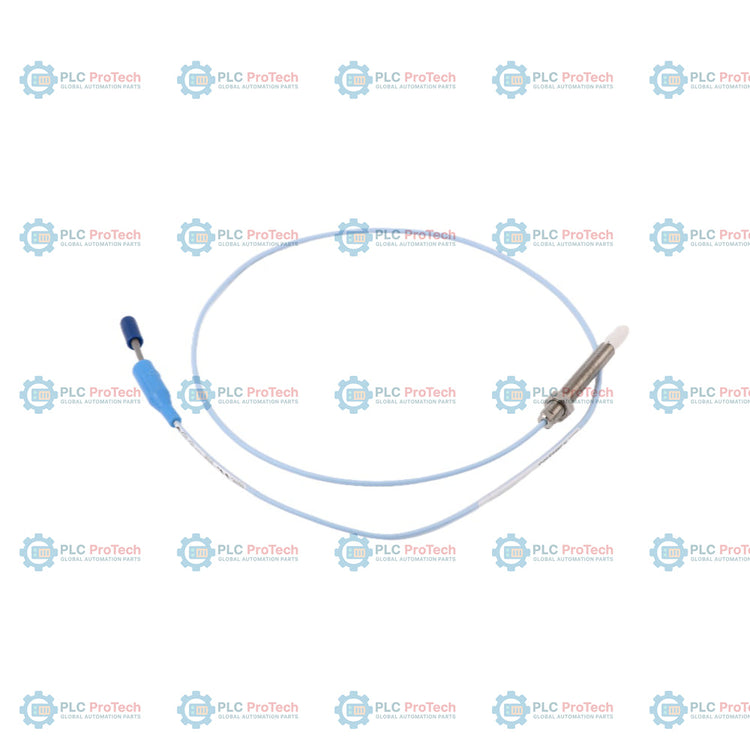

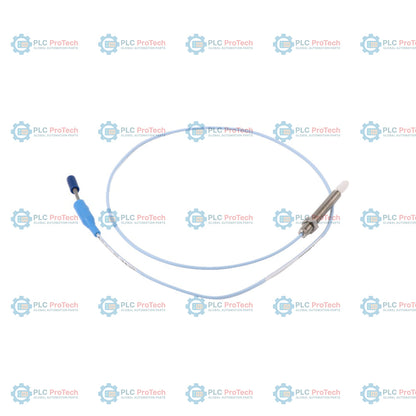

Option 00 (0.0 in unthreaded length) and Option 46 (4.6 in overall case length) specify this unarmored 3/8-24 UNF thread 3300 NSv proximity probe configuration — 330908-00-46-05-02-05. This non-contacting eddy-current displacement sensor is configured with a 0.5-meter total cable length ending in a miniature coaxial ClickLoc connector (Option 02) and is certified with multiple hazardous area approvals (Option 05). It is used to measure shaft vibration, radial position, or axial displacement in locations where reduced target size or limited installation clearances prevent the use of standard-sized proximity probes.

The 330908 probe is designed to operate specifically within the 3300 XL NSv Proximity Transducer System, interfacing directly with the 330930 extension cable and 330980 Proximitor sensor. Unlike other configurations in the 3300 NSv series that feature stainless steel protective armor or alternative mounting threads, this specific probe variant features a bare 75-ohm coaxial cable without outer armor to reduce installation weight and maximize flexibility in tight conduit routing.

Features

• Unthreaded length of 0.0 inches (fully threaded case)
• Threaded overall case length of 4.6 inches with 3/8-24 UNF-2A threads
• Total integrated lead cable length of 0.5 meters (20 inches)
• Miniature coaxial ClickLoc connector with no additional connector protector
• Standard 75-ohm coaxial fluoroethylene propylene (FEP) insulated cable without armor
• Agency approvals (Option 05) including ATEX, IECEx, and CSA hazardous area classifications

Applications

• Shaft radial vibration and axial position measurements on small-bore machinery
• Aeroderivative gas turbine vibration monitoring
• Rotating machinery with restricted target areas or tight mechanical clearances
• High-speed machinery diagnostic monitoring with limited rotor shaft diameter

Ordering Information

Technical Specifications

Installation Guidelines

• Cable Routing: Avoid routing coaxial cables in areas where they are subject to physical pinching or sharp bends. Maintain a minimum bend radius of 25.4 mm (1.0 in).
• Case Mounting: Thread the probe into the mounting bracket or machine casing to the proper depth. For 3/8-24 UNF threads, do not exceed the maximum rated torque of 33.9 N m (300 in-lb); a recommended torque of 11.3 N m (100 in-lb) is suggested.
• Calibration Gap: Adjust the probe to a recommended gap of 1.0 mm (40 mils) from the target surface using a feeler gauge or by measuring the DC output voltage of the Proximitor sensor.
• Connector Protection: Ensure the ClickLoc connectors are kept clean and free of oil or moisture. Use silicone tape or connector protectors when installing in harsh environments.

Compliance and Certifications

• EMC: European Community Directive 2014/30/EU, standards EN 61000-6-2 and EN 61000-6-4.
• RoHS: European Community Directive 2011/65/EU and China RoHS (EFUP designation of 15 years).
• Hazardous Area Approvals (Option 05): ATEX/IECEx (Class I, Zone 0: Ex ia IIC T5...T1 Ga; Ex ia IIIC T90degC...T280degC Dc; Class I, Zone 2: Ex nA IIC T5...T1 Gc; Ex ec IIC T5...T1 Gc) and North American certifications (Class I, Div 1, Groups A, B, C, D; Class I, Div 2, Groups A, B, C, D).
• Functional Safety: SIL 2 (HFT = 0), SIL 3 (HFT = 1).
