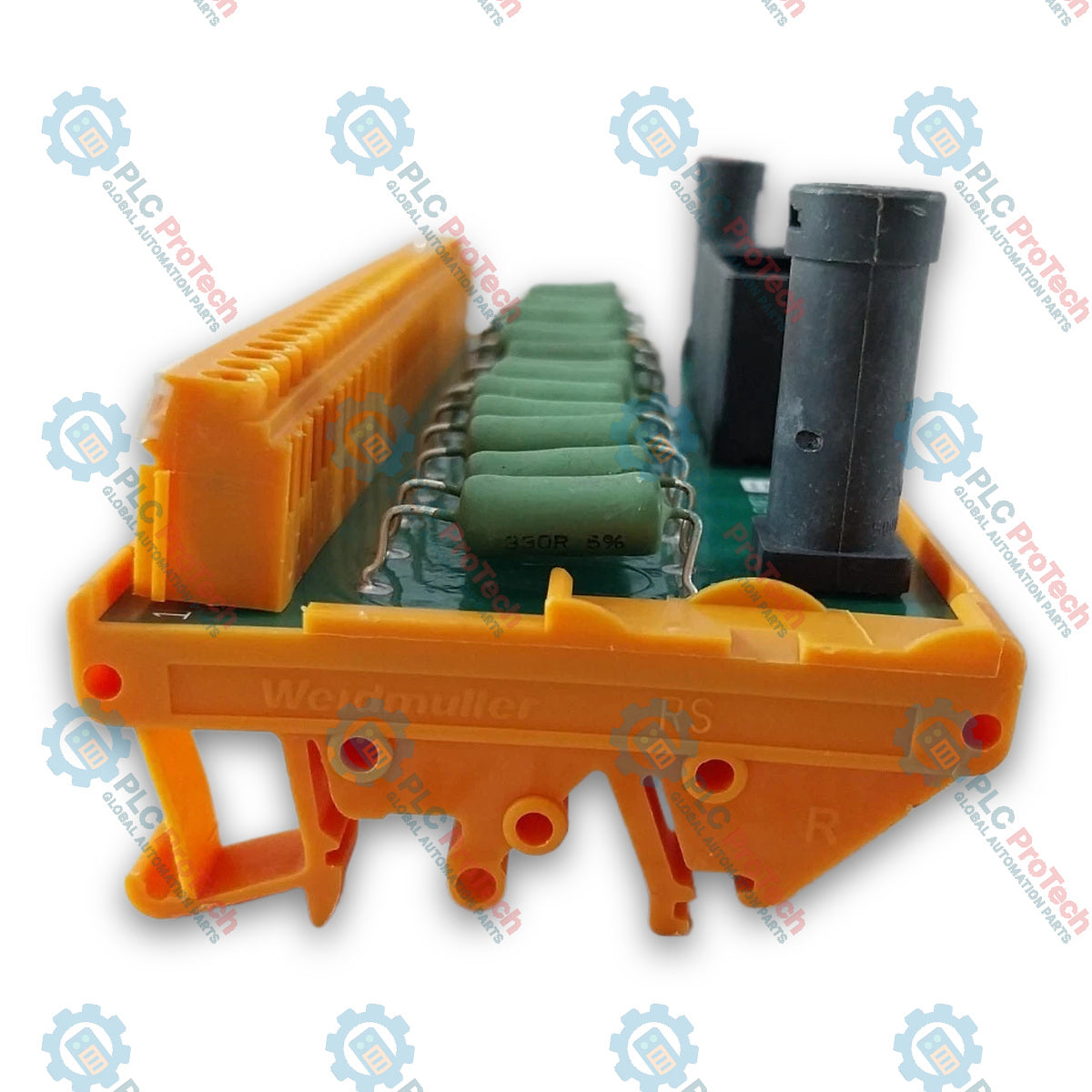

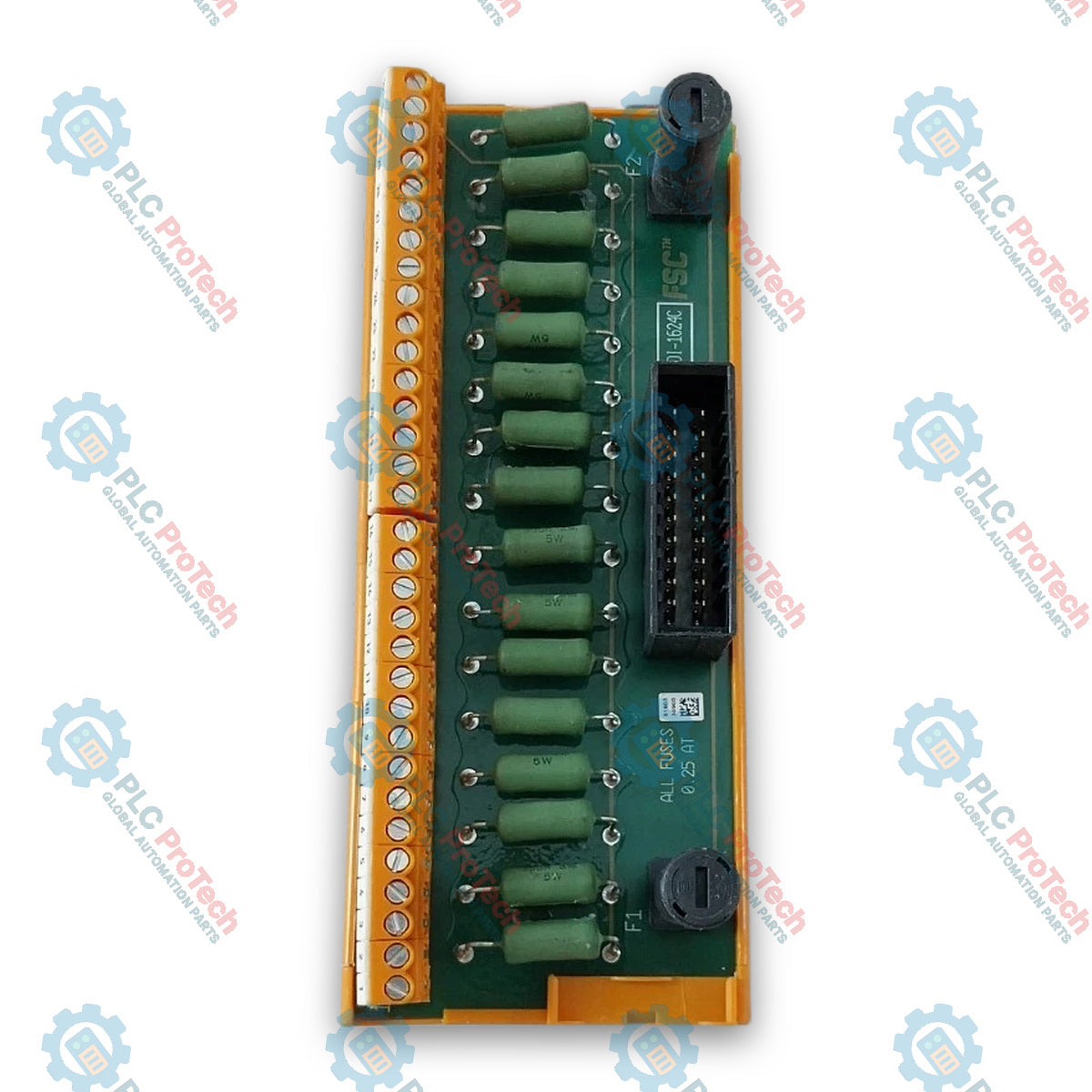

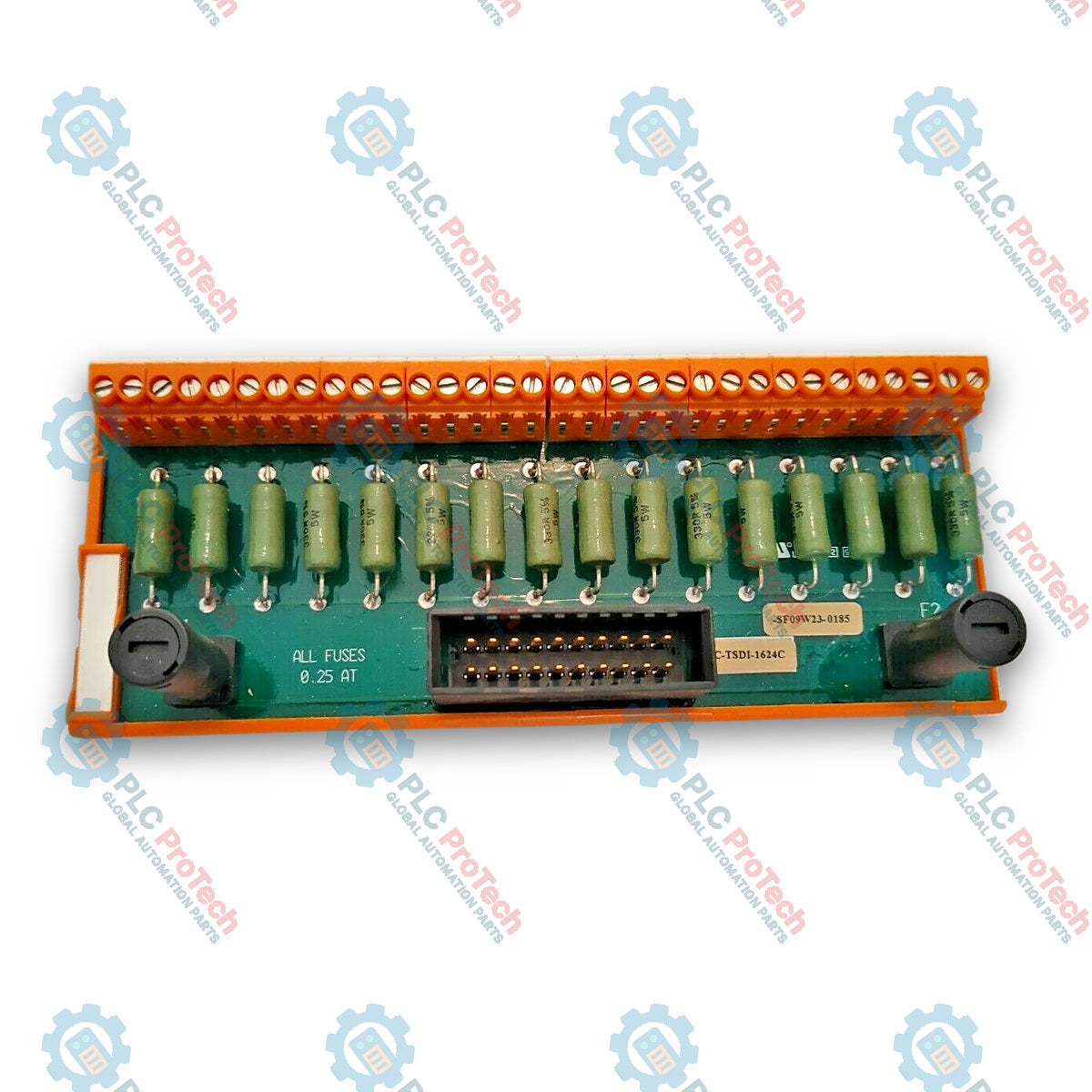

Honeywell FC-TSDI-1624C Safety Manager Current limited Digital Input FTA Module

Description

The Honeywell FC-TSDI-1624C is a Field Terminal Assembly (FTA) digital input card engineered for high-integrity safety instrumented systems (SIS) within the Honeywell Safety Manager architecture. Acting as a field termination interface, the module routes and manages 24 Vdc digital input signals from field sensors, switches, and transmitters directly to the safety controller backplane via System Interconnection Cables (SIC).

Designed with conformal coating for enhanced protection in demanding industrial environments, the Honeywell FC-TSDI-1624C ensures reliable signal routing across critical safeguarding loops, including Emergency Shutdown (ESD), Burner Management Systems (BMS), and Fire & Gas (F&G) detection systems. The assembly features integrated current-limiting circuitry to maintain signal integrity and safeguard connected controller channels during operational faults.

Features

• High-Density Channel Layout: Interfaces up to 16 digital input channels for 24 Vdc field devices.
• Safe Current-Limiting Circuitry: Integrated current protection limiters in 24 Vdc 16-channel configurations to prevent field fault propagation.
• Conformal Coating: Standard conformal coating (FC-prefix designation) for elevated environmental resistance against humidity and airborne contaminants.
• DIN Rail Mounting: Compact form factor designed for standardized mounting on DIN EN rails (TS32 or TS35) within field enclosures or system cabinets.
• Standard System Connectivity: Interfacing via standard System Interconnection Cables (FS-SIC-0001) for direct plug-and-play wiring to Safety Manager I/O backplanes.

Applications

• Emergency Shutdown Systems (ESD): Input signal termination for critical process safety interlocks, ESD pushbuttons, and field switches.
• Burner Management Systems (BMS): Safe signal routing from limit switches, flame detectors, and fuel valve position indicators.
• Fire and Gas Safeguarding: Interfacing discrete fire and gas detector status signals into Safety Manager logic solvers.
• Turbine and Machinery Protection: Monitoring discrete state inputs for rotating equipment shutdown loops.

Technical Specifications

General

Electrical & Input Channel Characteristics

Physical & Mounting

Connections / Interfaces

Installation Guidelines

1. Safety Pre-Check: Ensure field loop power (24 Vdc) and system power supply are isolated before wiring or installing the FTA module.
2. Mounting: Securely snap the Honeywell FC-TSDI-1624C onto a standard DIN EN rail (TS32 or TS35) inside an approved, clean, dry enclosure or cabinet.
3. Field Wiring: Wire discrete field sensor cables to the designated screw terminals, observing proper polarities and shield grounding practices.
4. System Interconnection: Connect the FS-SIC-0001 cable between the FTA multi-pin system header and the corresponding channel port on the Safety Manager I/O backplane.
5. Inspection: Verify that terminal screw torques are secure and that the cable connector latching mechanism is fully seated before re-energizing the loop.

Commissioning Recommendations

1. Loop Continuity & Voltage Check: Measure incoming field loop voltages with a calibrated multimeter to confirm stable 24 Vdc power levels prior to logic integration.
2. Input State Verification: Exercise field switches and verify that digital input logic states update correctly in the Safety Builder environment.
3. Current-Limit Testing: Confirm that loop current remain within safe operating thresholds during active field transitions.
