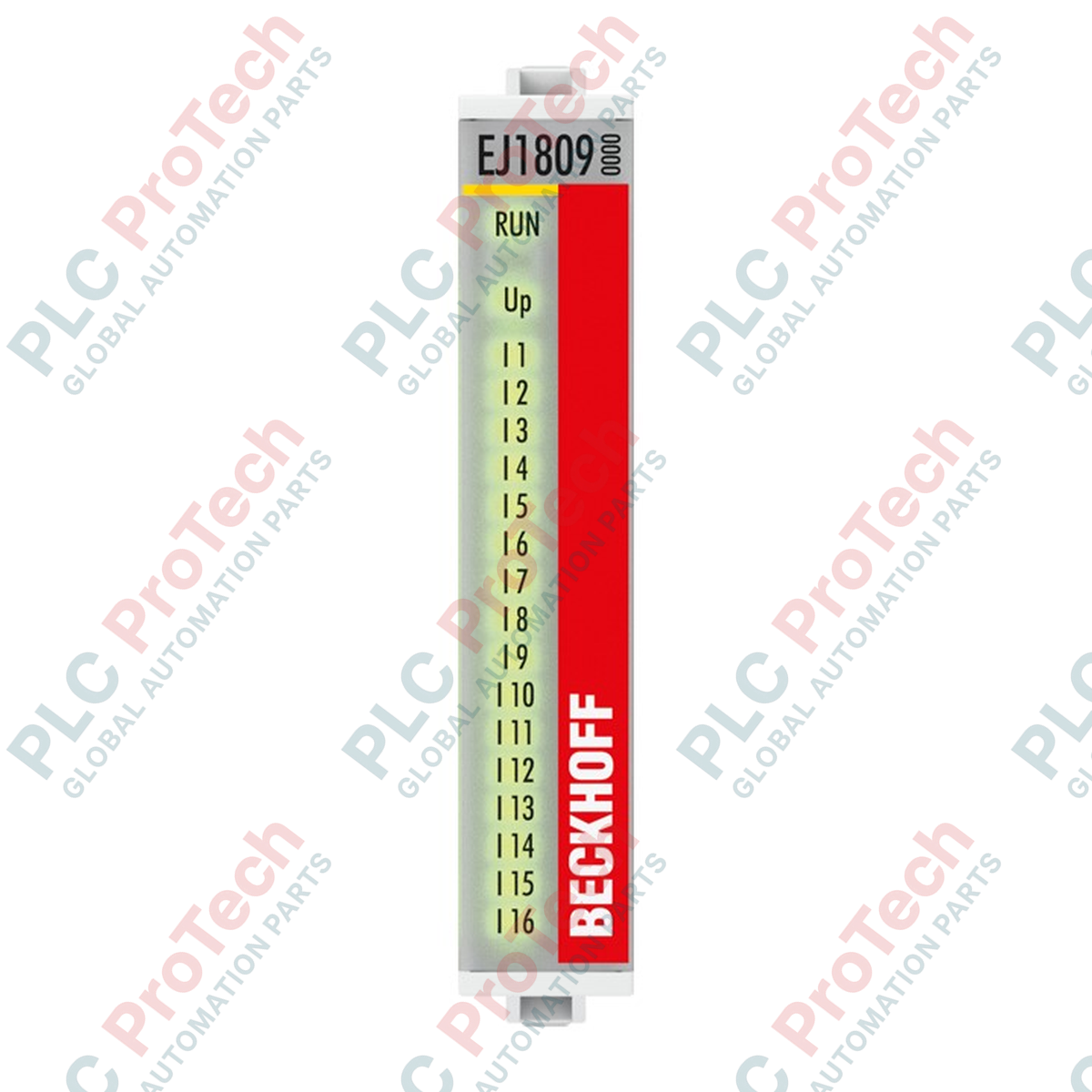

BECKHOFF EJ1809 Module enfichable EtherCAT d'entrée numérique 16 canaux

Product Overview

The EJ1809 (EJ1809) is a high-density, 16-channel digital input module engineered for integration into the Beckhoff plug-in module system. Designed for high-volume serial machine manufacturing, this component is ideal for assembly lines, packaging automation, and automated handling systems where space efficiency and cost-optimized wiring are critical. By enabling direct connection to application-specific PCBs, the EJ1809 eliminates traditional terminal block wiring, significantly accelerating cabinet assembly times and reducing overall machine footprint while maintaining reliable 24 VDC signal acquisition.

Technical Configuration

This module provides sixteen independent digital input channels conforming to EN 61131-2 Type 1/3 standards. Each channel is equipped with a 3.0 ms input filter to effectively suppress high-frequency noise and transient electrical interference common in industrial environments. The architecture features 500 V electrical isolation between the field potential and the E-bus, ensuring the protection of the EtherCAT communication backbone. With a low E-bus power consumption of 80 mA, the EJ1809 is optimized for integration into compact, multi-module systems, delivering consistent performance without overloading the local power distribution infrastructure.

Technical Specifications

FAQs

How is the EJ1809 mounted within the system?

The EJ1809 is a plug-in module designed to be mated directly to a custom-designed application PCB via its integrated pin headers, rather than being mounted on a standard DIN rail.

Is this module compatible with Type 3 sensors?

Yes, the EJ1809 inputs meet EN 61131-2 Type 1/3 requirements, ensuring full compatibility with a wide range of standard industrial 24 VDC proximity switches and sensors.

What are the benefits of the 3 ms filter?

The 3 ms input filter provides a robust barrier against contact bounce and electrical noise, preventing false signal triggers in standard automation applications.

Can multiple EJ1809 modules be used in a single system?

Yes, the EtherCAT protocol allows for the concatenation of multiple EJ-series modules to scale the total I/O count according to the requirements of the machine architecture.

Installation and Operational Guidelines

• PCB Design Integration: When designing the carrier PCB, ensure the signal traces are routed with adequate spacing from high-power circuits to minimize crosstalk. Follow the specific footprint documentation provided by the manufacturer to ensure secure electrical and mechanical engagement of the plug-in headers.

• Thermal Management: Despite its compact 30 g design, ensure the enclosure containing the application PCB allows for adequate airflow. Consistent operation at ambient temperatures up to 60 deg C is supported, provided that heat from adjacent high-power components is properly managed through the PCB layout.

• Safety and Handling: Use ESD-safe handling procedures when inserting the module into the carrier board to prevent damage to the E-bus communication circuitry. Once installed, confirm the module is seated fully to ensure all sixteen channels maintain proper contact.
