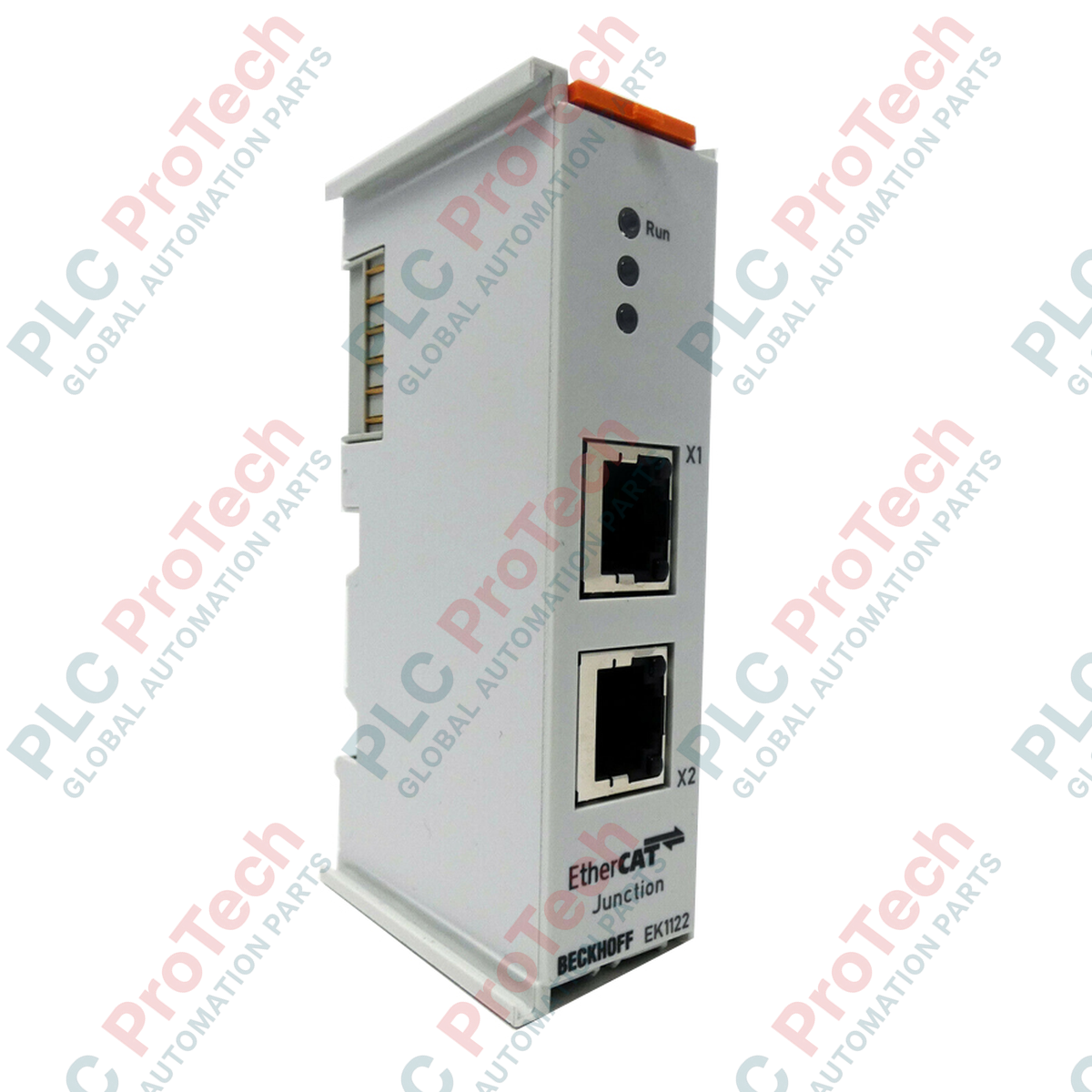

Jonction 2 ports BECKHOFF EK1122 EtherCAT

Description

Integrating physical segments within an industrial communication network requires robust hardware designed to handle high-speed data routing. The EK1122 2-port EtherCAT junction module enables flexible branching of EtherCAT topologies, allowing the deployment of star and tree networks directly within terminal blocks. This compact terminal interfaces seamlessly with standard EtherCAT Couplers and I/O segments, extending the physical reach and structural configuration of automated production systems.

Operating at a native communication rate of 100 Mbit/s, this junction terminal facilitates direct coupling between various EtherCAT stations using standard shielded Cat.5 Ethernet cables. Because the EK1122 routes standard EtherCAT frames dynamically, no complex configuration or manual IP addressing is required during setup. The module draws its operating power directly from the E-bus backplane, simplifying field wiring while maintaining low power consumption and microsecond-level signal propagation delay.

Features

• Supports the configuration of physical star topologies in industrial networks.
• Equipped with two RJ45 bus interfaces for secure connection of downstream stations.
• Requires zero software configuration, enabling true plug-and-play installation.
• Extends communication distances up to 100 meters per segment over Cat.5 shielded cable.
• Powered via internal E-bus connections to eliminate external power cables.
• Compact, DIN-rail-mountable polycarbonate housing designed for space-constrained panels.

Applications

• Distributed machinery control systems requiring modular station additions.
• Robotics and pick-and-place automation utilizing Hot Connect functions.
• Automotive assembly lines, packaging machinery, and material handling systems.
• Wind power and HVAC infrastructure demanding robust star network topologies.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Mount securely on standard 35 mm DIN rails conforming to EN 60715.
• Ensure double slot and key connection is fully engaged when mounting side-by-side with other terminals.
• Always use shielded Cat.5 or higher network cabling to maintain noise immunity in high-interference environments.
• Ensure clear ventilation space above and below the module to remain within recommended operating temperature parameters.

Compliance and Certifications

• CE
• UL
• ATEX
• IECEx
• cFMus
