BECKHOFF ZB7203-0100 Câble EtherCAT P 1 m

Product Overview

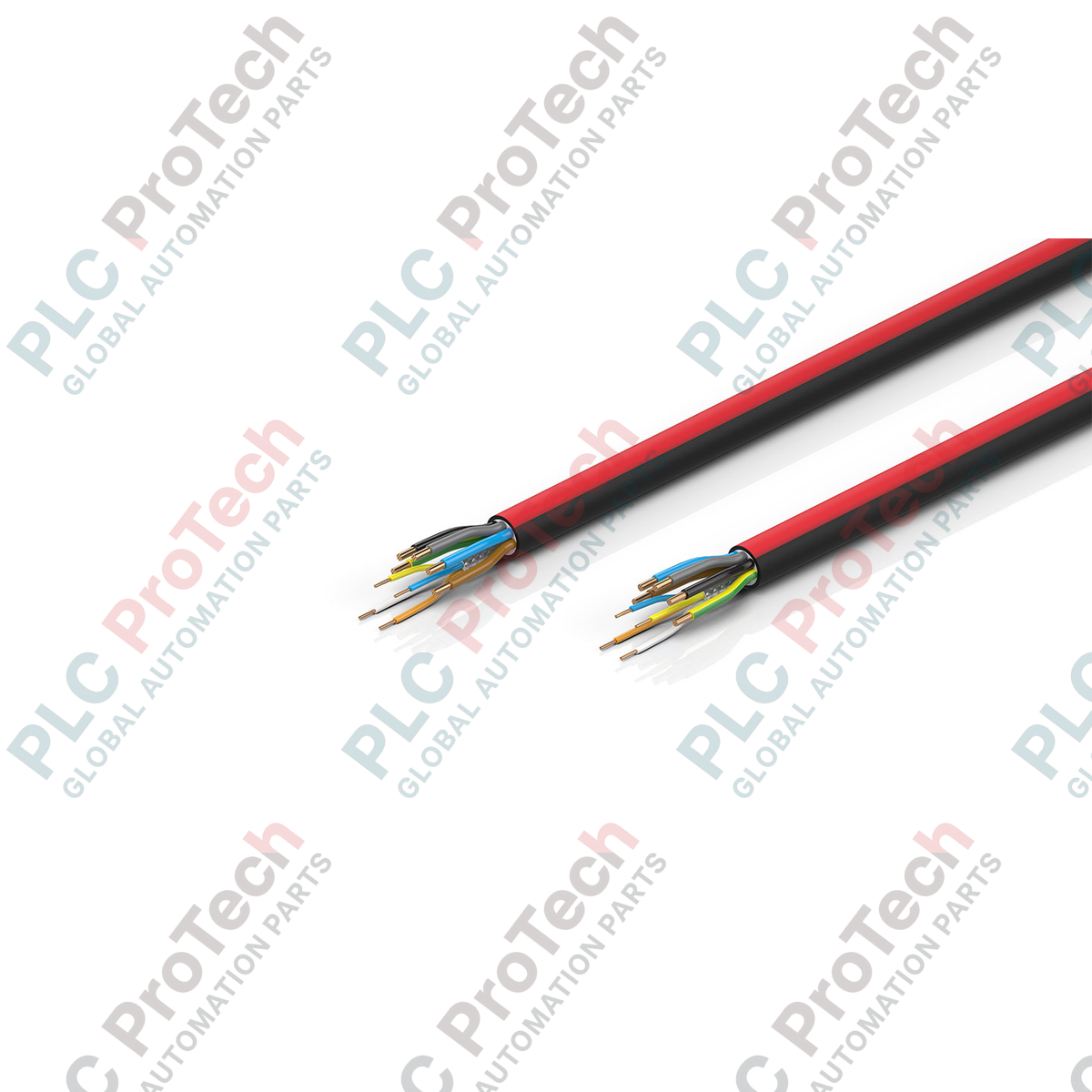

The ZB7203-0100 (ZB7203-0100) is a high-performance EtherCAT P cable engineered for industrial connectivity in demanding automation environments. Designed for applications where power and data must be transmitted over a single cable—such as high-speed robotics, motion control systems, and automated production cells—this cable ensures stable communication while supplying critical 24 VDC control power. The inclusion of drag-chain suitability makes it a reliable choice for dynamic movement scenarios, significantly reducing cable fatigue and preventing mechanical failure in continuous-cycle industrial machinery.

Technical Configuration

This cable features a sophisticated hybrid construction consisting of a 4-core Ethernet segment (0.34 mm²) and a 5-core power segment (1.5 mm²), enabling efficient distribution of EtherCAT signals and system power. The jacket is manufactured from high-grade polyurethane (PUR), providing exceptional resistance to abrasion, oils, and chemical exposure common in manufacturing settings. Despite its robust construction, the cable maintains a flexible profile with an outer diameter of 11.0 mm, facilitating easier routing through cable tracks and energy chains. The distinct black jacket with a yellow stripe allows for rapid identification in complex cable management systems.

Technical Specifications

FAQs

Is this cable suitable for fixed installations?

Yes, while it is designed for drag-chain (moving) applications, it is equally effective for fixed installations where high mechanical durability and resistance to harsh environmental factors are required.

Can this cable be used for standard Ethernet communication?

No, the ZB7203-0100 is specifically designed for the EtherCAT P standard, which integrates high-current power transmission alongside data; using it with standard Ethernet ports may result in hardware damage.

What is the minimum bend radius for this cable?

While dynamic constraints vary by application, the PUR jacket and drag-chain certification allow for tight bending within the typical limits specified for energy chain systems. Consult your specific energy chain documentation for radius calculations based on the 11 mm diameter.

Does this cable have an overall shield?

No, this specific model is an unshielded EtherCAT P cable. Please ensure that your installation environment meets the electromagnetic interference requirements for unshielded signaling or use this cable in zones with manageable electrical noise.

Installation and Operational Guidelines

• Cable Track Installation: When installing in drag chains, ensure that the cable is not pulled tight at either end. Cables should be laid loosely in the track to allow for natural movement, and a minimum clearance of 10% of the cable diameter should be maintained relative to the inner dimensions of the cable carrier to prevent excessive friction.

• Termination Quality: When stripping the PUR jacket, exercise caution to avoid nicking the underlying insulation of the internal Ethernet or power cores. Use professional-grade cable strippers to maintain the integrity of the individual conductor insulation.

• Environmental Considerations: The PUR jacket provides excellent resistance to mineral oils and lubricants. However, ensure that the cable is not exposed to concentrated solvents or aggressive cleaning chemicals that are outside the chemical compatibility range of polyurethane to prevent premature jacket degradation.
