Module CPU Delta AHCPU520-EN

Description

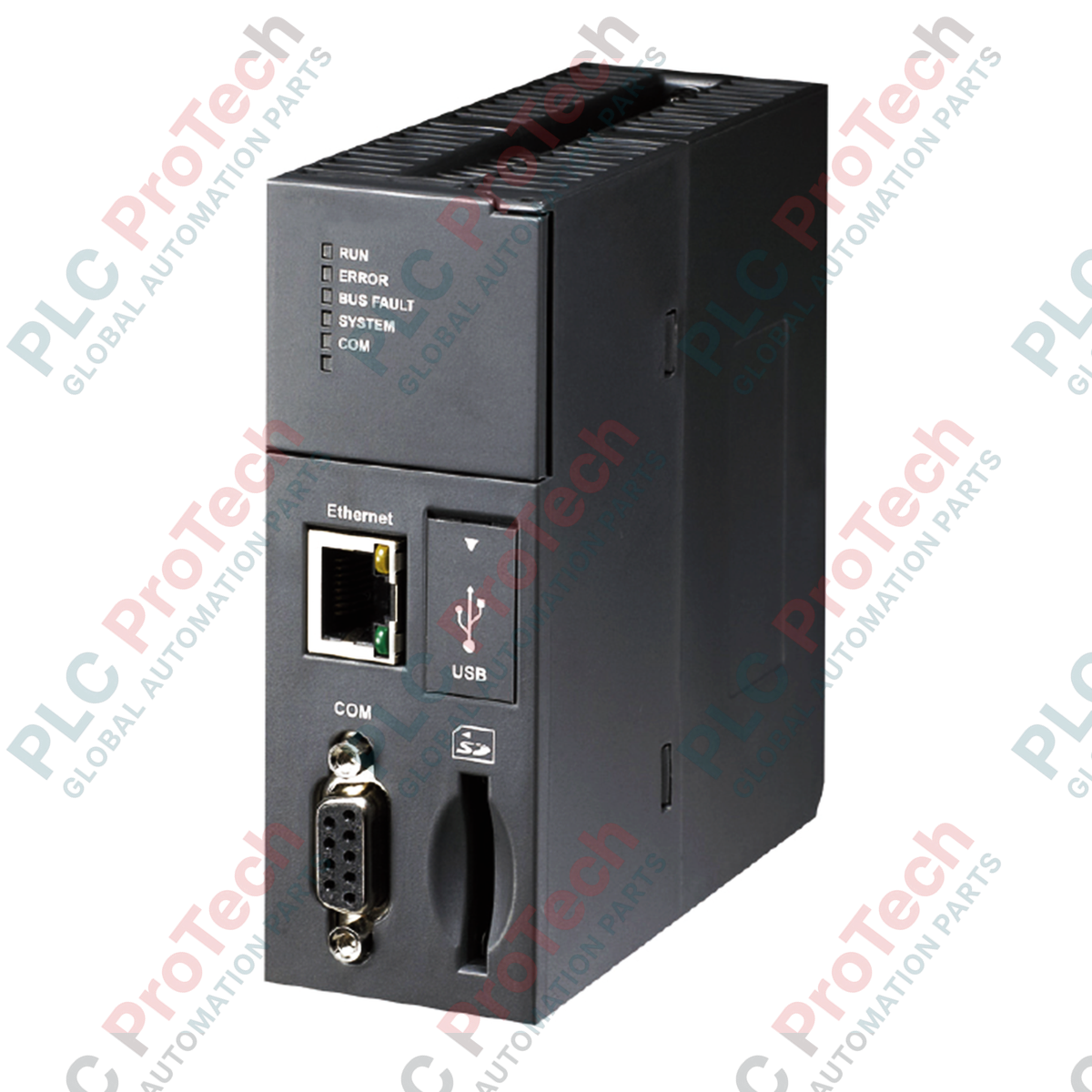

The Delta AHCPU520-EN is a high-performance CPU module belonging to the AH500 series, engineered to serve as the central processing unit for complex automation tasks. This CPU module offers a robust program capacity of 128K steps (512KB) and supports up to 2304 local I/O points, making it highly suitable for mid-to-large-scale industrial control systems.

Designed for modern industrial environments, the AHCPU520-EN features integrated Ethernet communication (100Mbps) for seamless network connectivity, alongside multi-mode RS-232/422/485 ports. It supports multiple programming languages including LD, SFC, FBD, IL, and ST, providing engineers with the flexibility to implement diverse control strategies. The unit also includes advanced diagnostic features, online editing, and debugging capabilities to minimize downtime. With built-in features like an SD card slot for data logging, NTP network time correction, and web/email functions, this module ensures efficient system management and communication.

Features

• Program Capacity: 128K steps (512KB)
• Local I/O Capacity: Up to 2304 points
• Communication: Built-in Ethernet (100Mbps), RS-232/422/485, and Mini-USB
• Programming Languages: LD, SFC, FBD, IL, ST
• Data Storage: SD card slot (supports up to 2GB)
• Performance: LD instruction at 0.1μs; 1K steps at 0.3ms
• Maintenance: No battery required; RTC with 30-day power-off retention
• Advanced Networking: NTP time correction, WEB/Email functions, and IP Filter
• Diagnostics: System diagnosis, status light, and online editing/debugging

Applications

• Large-scale factory automation systems
• High-speed motion control and process control
• Building automation and HVAC management
• Data acquisition and remote monitoring systems
• Industrial IoT (IIoT) infrastructure

Technical Specifications

Installation Guidelines

• Mounting: Ensure the AHCPU520-EN is mounted on a compatible AH500 backplane within a well-ventilated control cabinet.
• Grounding: Proper chassis grounding is essential to protect against electrical noise and ensure stable operation of the communication interfaces.
• Cabling: Use shielded cables for RS-485/422 communication to maintain signal integrity over long distances.
• Environment: Avoid installation in areas with high humidity, extreme temperatures, or excessive dust and metal particles.
• USB/Ethernet: Use standard, high-quality cables for programming and network connection to avoid communication interruptions.
