DOP-112WX | DELTA | Interface Homme-Machine | Type Cadre Étroit Avancé

Description

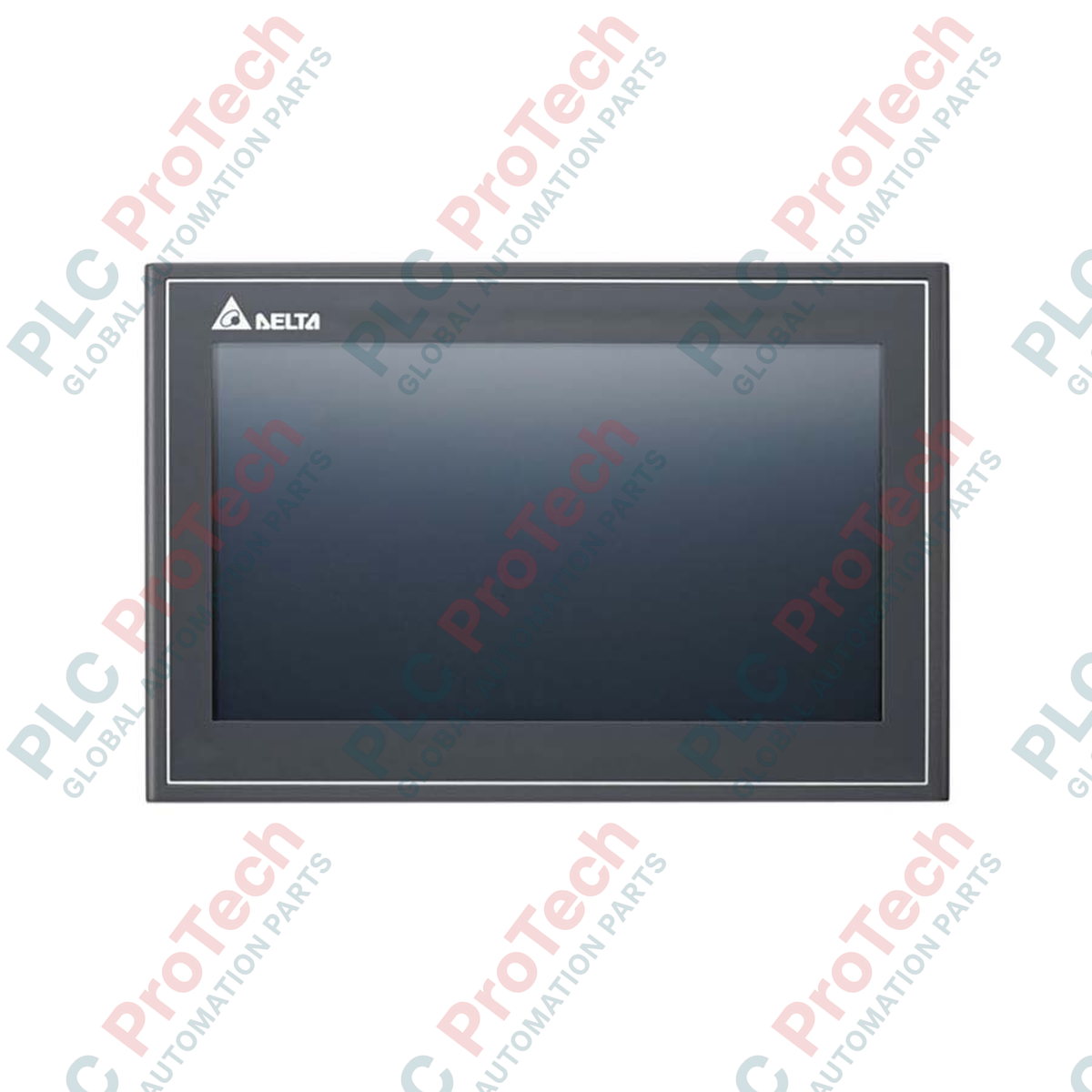

Designed for industrial visualization and monitoring, the DOP-112WX operator terminal provides a high-resolution human-machine interface for machine control and factory automation networks. This unit features a 12-inch TFT LCD display designed with a narrow frame profile to maximize active screen space within compact control panels. Equipped with a high-performance Dual Core 1GHz processor, 8GB of Flash ROM, and 1GB of DDR3 RAM, the hardware facilitates rapid graphic rendering, screen transition, and efficient alarm handling.

The interface supports diverse industrial connectivity protocols via dual 100 Mbps Ethernet ports and integrated USB host/slave ports, easing integration with external PLCs and enterprise systems. A robust four-wire resistive touch interface enables dependable input even in demanding factory floor environments where operators may be wearing gloves.

Features

• High-Resolution Display: 12-inch TFT LCD screen displaying 24-bit color at 1024 x 768 pixel resolution.
• High-Performance Processing: Integrated Dual Core 1GHz CPU paired with 8GB Flash ROM and 1GB DDR3 RAM.
• Dual Ethernet Ports: Two onboard 100 Mbps ports support concurrent network routing and control architectures.
• Heavy-Duty Touchscreen: 4-wire resistive touch screen rated for over 10,000,000 physical presses.
• Peripheral Expansion: Features one USB Host 2.0 port, one Mini USB Slave 2.0 port, and a dedicated SD card slot for expanded storage.

Applications

• Factory automation and process monitoring systems.
• Water treatment facilities and pumping stations.
• HVAC controls and centralized building management systems.
• Packaging, labeling, and material handling machinery.

Technical Specifications

Installation Guidelines

Ensure the terminal cutout dimensions match the specified 302.7 mm x 228.7 mm panel opening. Insert the HMI through the front of the panel cutout and secure it from the rear using the provided mounting brackets, tightening to the specified torque. Standard DC supply lines must be wired to the 24 VDC terminals, and the Frame Ground (FG) terminal must be directly bonded to the main system ground to prevent electromagnetic interference. Allow sufficient clearance around the back of the enclosure to support natural convective air cooling.
