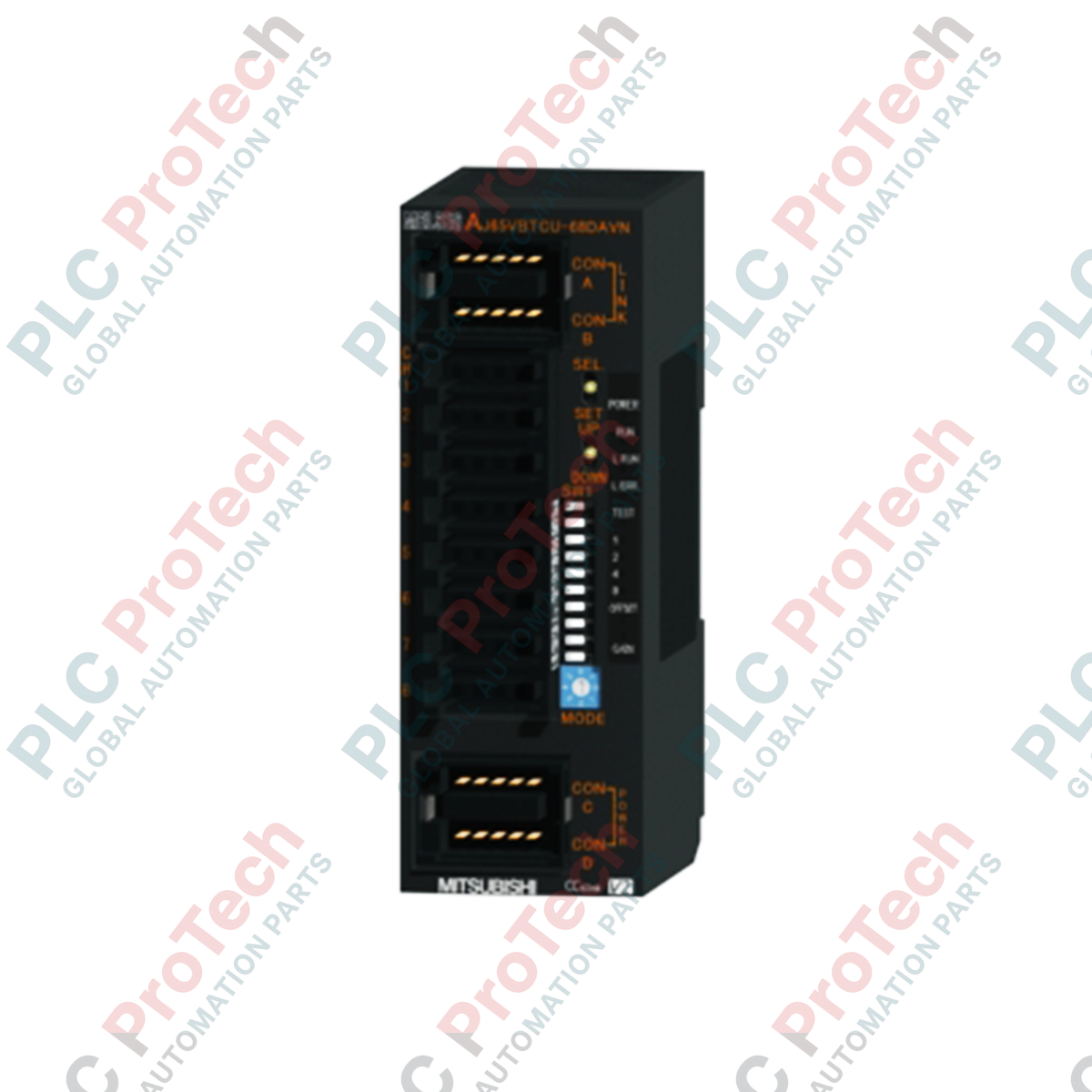

AJ65VBTCU-68DAVN | Mitsubishi Electric | CC-Link Unité de conversion numérique-analogique

Il ne reste que 10 article(s) en stock

Fabricant : Mitsubishi Electric
N° de produit : AJ65VBTCU-68DAVN
Pays d'origine :États-Unis
Type de produit : CC - Link Unité de conversion numérique-analogique
Paiement : Virement bancaire, Western Union
Poids : 160g
Dimensions : 115 mm x 41 mm x 67 mm
Port d'expédition : Xiamen
Garantie : 12 mois

Voir les détails complets

Description

Processing high-precision industrial signals within CC-Link network architectures, the AJ65VBTCU-68DAVN functions as a high-density digital-to-analog interface module. This remote device station converts digital inputs from the host controller into analog voltage signals across 8 independent channels. Engineered for installation within control panels, it delivers precise analog references to drive speed controllers, control valves, and actuator systems.

The AJ65VBTCU-68DAVN utilizes high-performance D/A conversion circuitry to complete signal processing at a rate of 1 ms per channel. The electrical design isolates communication lines and analog outputs through photocouplers, while the internal power supply system and analog circuits are isolated via transformer barriers. This high-isolation framework prevents ground loops and safeguards against industrial noise and transient surges in challenging electromagnetic environments.

Features

8 independent analog voltage output channels configured via CC-Link communication.
Flexible digital input processing ranges spanning -4096 to +4095.
Multiple analog output voltage ranges including 0 to 5 V, 1 to 5 V, -10 to 10 V, and user-defined configurations.
Fast conversion speed of 1 ms per channel for real-time control applications.
Galvanic isolation utilizing photocouplers and transformer barrier technology.
Built-in output short-circuit protection to prevent hardware failure from field wiring faults.
One-touch connector interface design for swift, solderless wiring terminations.
Highly reliable design conforming to IEC 61131-2 vibration and shock resistance benchmarks.

Applications

Speed reference control for variable frequency drives (VFDs) and servo systems.
Analog position control for proportional valves and pneumatic actuators.
Integration with remote distributed I/O panels in automotive assembly lines.
Parameter control in continuous process manufacturing and water treatment plants.

Technical Specifications

CategoryParameterSpecification

Administrative	Manufacturer	Mitsubishi Electric
	Model / Part Number	AJ65VBTCU-68DAVN
	Product Type	CC-Link Digital-Analog Conversion Unit
Output Characteristics	Analog Channels	8 outputs (8 channels)
	Output Voltage Range	DC -10 to +10 V (External load: 2 kOhm to 1 MOhm)
	Digital Input Range	-4096 to +4095
	D/A Conversion Speed	1 ms / channel
	Absolute Maximum Output	+/- 12 V
Resolution & Accuracy	Voltage Output 0 to 5 V	0 to 4000 (Resolution: 1.25 mV)
	Voltage Output -10 to 10 V	-4000 to 4000 (Resolution: 2.5 mV)
	Accuracy (Relative to Max Value)	+/- 0.2% (at 25 +/- 5 degC); +/- 0.3% (at 0 to 55 degC)
Electrical & Power	Unit Power Supply Voltage	DC 24 V (Allowable range: DC 20.4 to 26.4 V, ripple within 5%)
	Current Consumption	0.15 A (at 24 VDC)
	Inrush Current	4.3 A, 1.2 ms or less
Isolation & Protection	Circuit Isolation Method	Photocoupler isolation (Communication and analog output); Transformer isolation (Power supply and analog output); Non-isolated between output channels
	Withstand Voltage	500 V AC for 1 minute (Between power supply/communication block and analog outputs)
	Output Protection	Short-circuit protection included
Network Parameters	Station Type	Remote device station (Ver.1 or Ver.2 remote device station)
	Occupied Stations	Ver.1: 3 stations; Ver.2: 1 station (Extended cyclic setting: 4 times)
	Communication Cable Compatibility	Ver.1.10 compatible CC-Link dedicated cable (e.g., FANC-110SBH, FA-CBL200PSBH, CS-110)
	External Connections	One-touch connectors for communication, power/FG, and I/O (sold separately)
Mechanical & Environmental	Dimensions (H x W x D)	115 mm x 41 mm x 67 mm
	Weight / Shipping Weight	0.16 kg / 1.0 kg
	Operating Ambient Temperature	0 to 55 degC (Storage: -20 to 75 degC)
	Protection Rating	IP1XB

Installation Guidelines

Mount the unit within an enclosed control panel (minimum Pollution Degree 2 classification) to shield the device from conductive dust and moisture.
Ensure DIN rail alignment or secure panel mounting is applied. Apply mechanical fixings to limit physical displacement during operation.
Utilize specified CC-Link Ver.1.10 cables for network hookups to maintain communication line impedance and prevent signal degradation.
Always route high-voltage primary power lines and analog control signal cables in separate conduits to minimize inductive noise coupling.
Ensure functional ground (FG) terminals are connected to a low-resistance industrial grounding system.

Key Features:

#CC-Link Remote I/O Modules #MELSEC

What is the conversion rate of the AJ65VBTCU-68DAVN?

The AJ65VBTCU-68DAVN features a D/A conversion speed of 1 ms per channel, allowing for rapid output updates across all 8 channels.

Is there electrical isolation between individual analog channels?

No, while there is photocoupler and transformer isolation between the communication/power systems and the analog outputs, there is no electrical isolation between the individual analog channels themselves.

Does this module include physical connectors in the box?

No, the one-touch connectors required for communication, power supply, and I/O connection are sold separately and must be purchased based on your specific wiring requirements.
