CP1L-M30DT-A | Omron | Automate programmable performant avec Ethernet intégré

Description

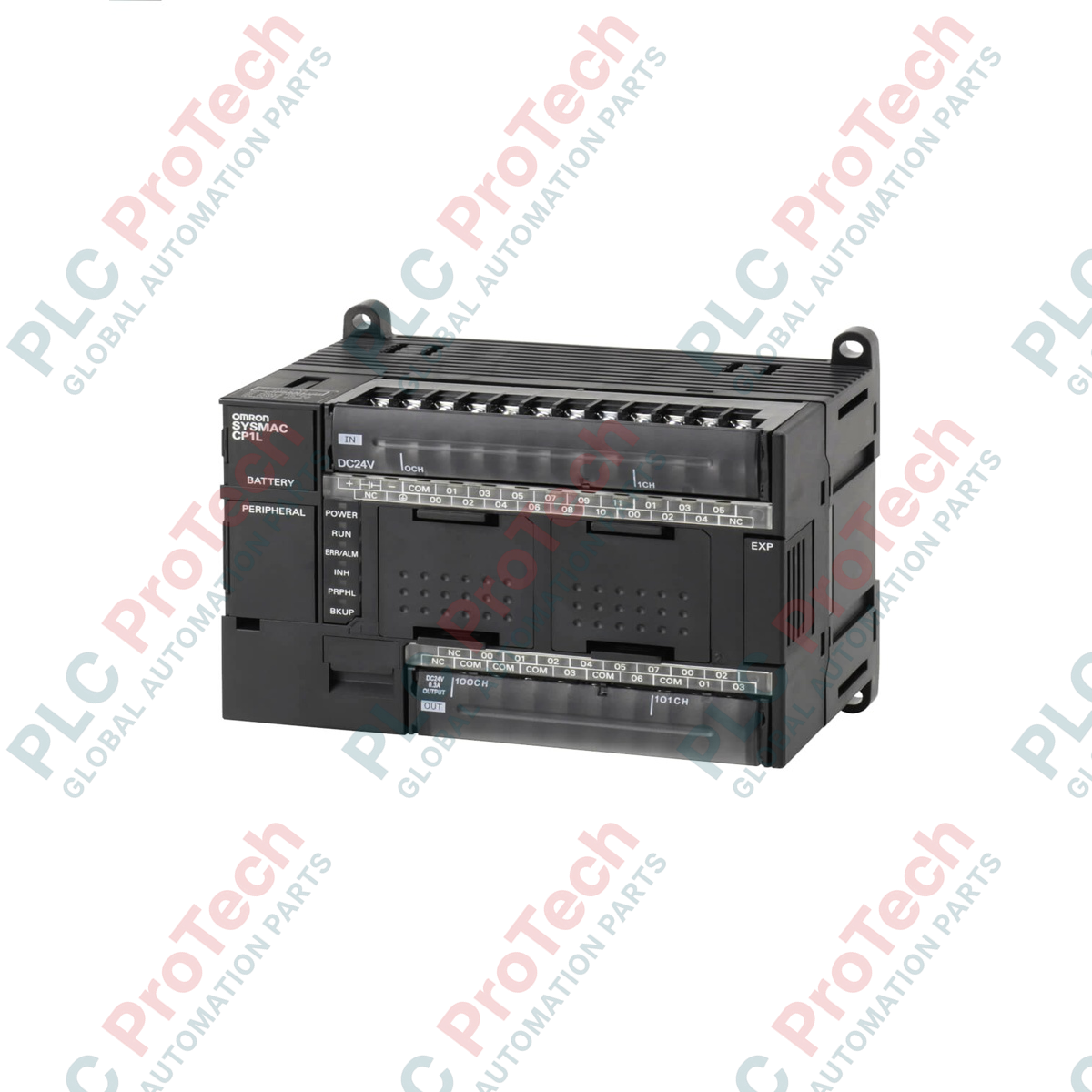

Providing robust control capabilities in a compact form factor, the CP1L-M30DT-A serves as a dependable programmable logic controller designed for versatile industrial automation tasks. This Omron CP1L series CPU module features integrated Ethernet communication, allowing for seamless networking, configuration, and diagnostics without the need for auxiliary option boards. Designed with a generous 10K step program capacity and high-speed execution performance, it easily coordinates complex processes, handles real-time machine sequences, and manages intermediate-level field instrumentation.

The unit supports standard programming interfaces including Ladder diagrams and Structured Text (ST) within function blocks, offering engineers flexibility in code development. With its on-board analog potentiometer and dedicated 0-10V analog input, this controller provides simplified adjustment and monitoring of operational parameters directly on the machine front.

Features

• Integrated Ethernet port supporting efficient fieldbus networking and configuration.
• Fast instruction execution speeds, with basic instructions processed in as little as 0.55 microseconds.
• Supports up to 128 function block definitions with a maximum of 256 instances.
• Dual programming language capability within function blocks (Ladder and Structured Text).
• On-board analog configuration consisting of 1 adjustment potentiometer and 1 voltage input (0 to 10 V).
• Expandable system design accommodating up to 3 CP-series expansion or expansion I/O units.

Applications

• Packaging and labeling machinery control
• Conveyor and material handling automation
• Small-to-medium municipal water treatment systems
• Environmental monitoring and HVAC pump stations
• Dedicated machine tool automation and positioning systems

Technical Specifications

Installation Guidelines

• Ensure the unit is securely mounted to a standard 35mm DIN rail or utilizing direct panel mounting screws.
• Maintain a vertical mounting orientation to facilitate passive convection cooling. Ensure clear space of at least 20mm above and below the unit.
• Connect the functional ground terminal to a dedicated ground of 100 ohms or less to limit electrical noise interference.
• Route all high-voltage power lines separate from low-voltage I/O and communication cabling.
