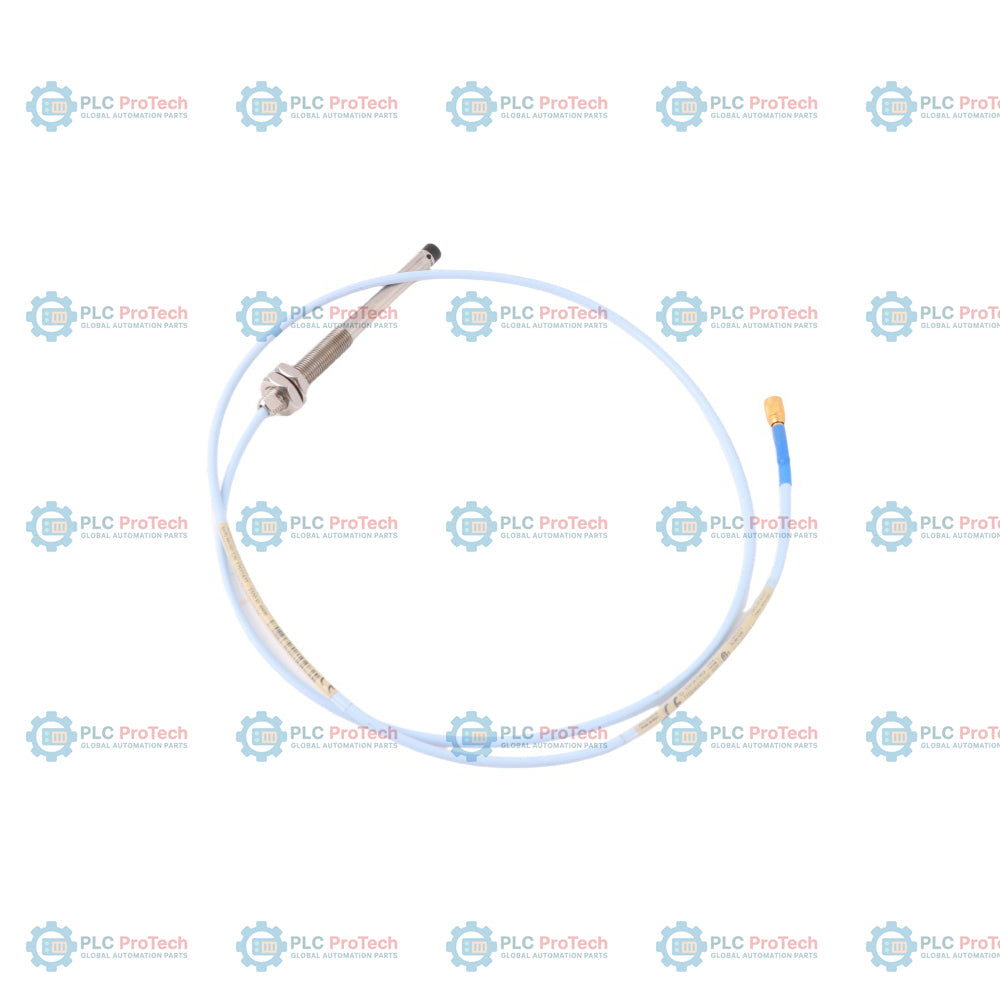

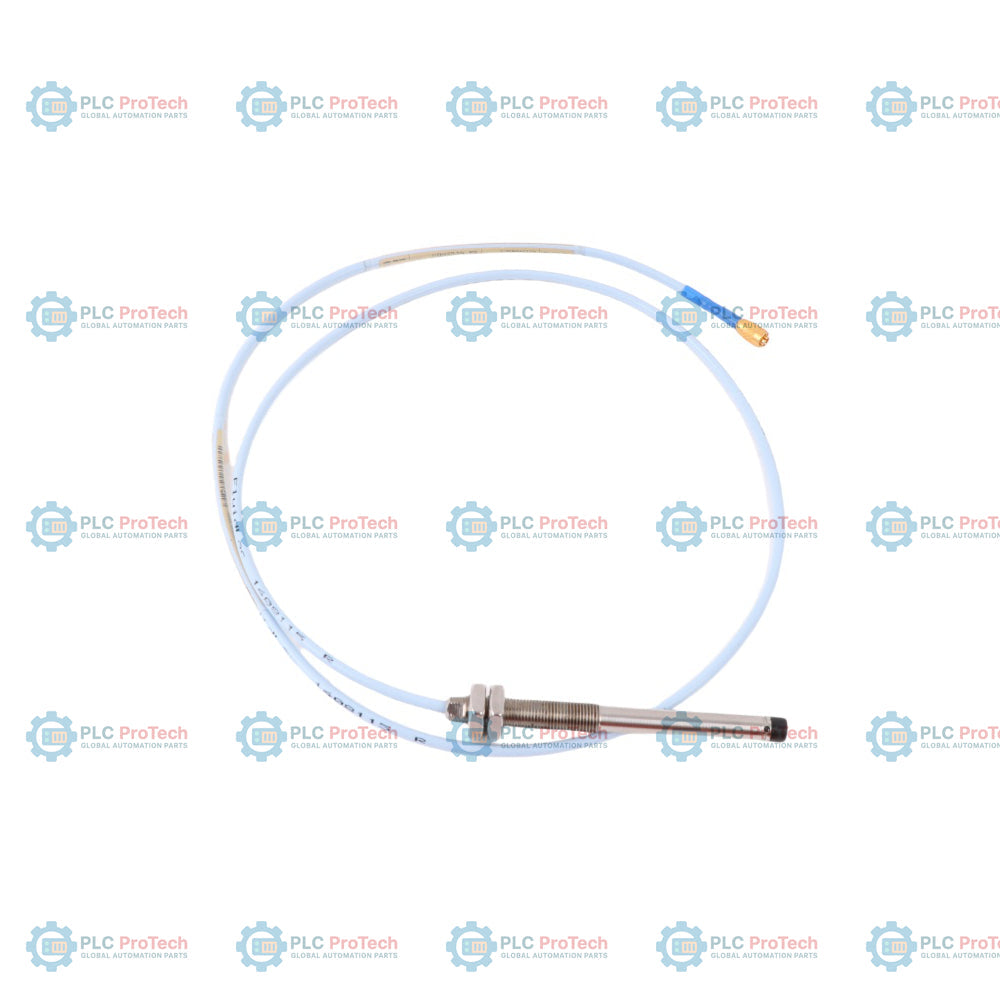

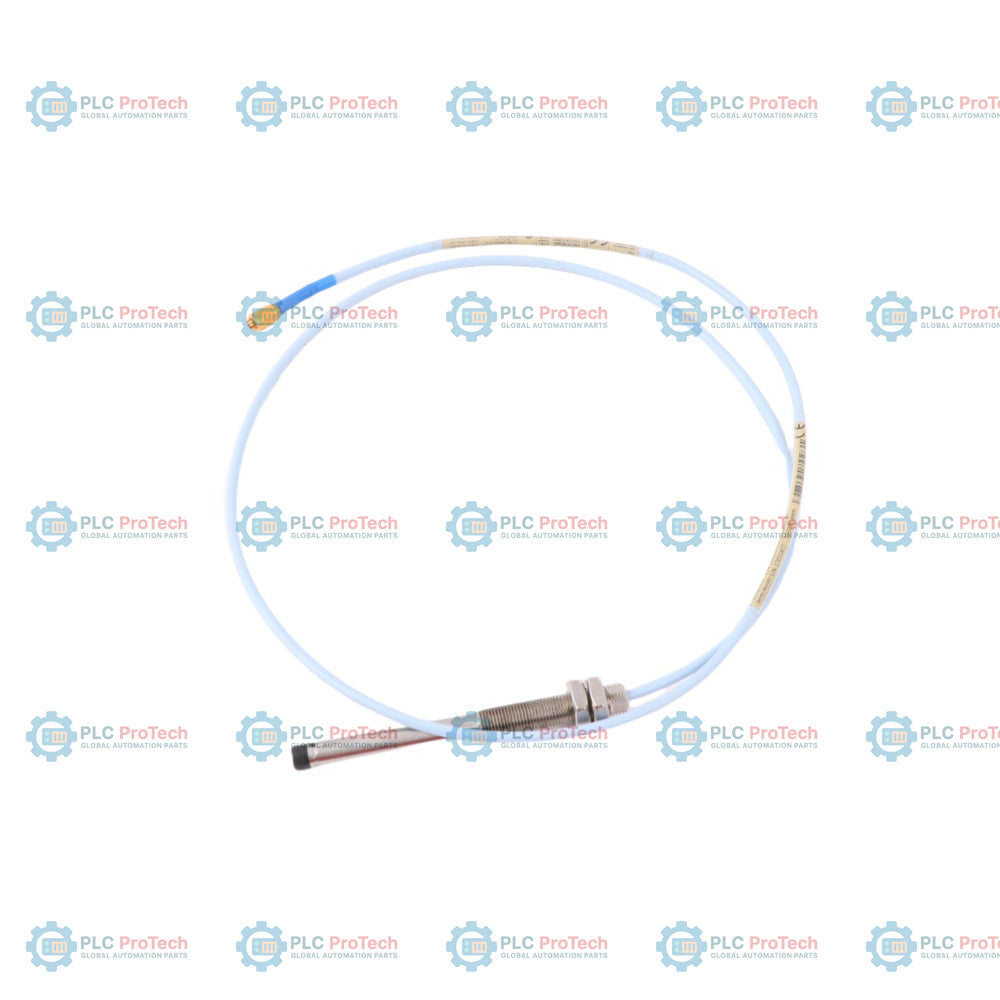

330103-05-10-10-12-05 specifies a 3300 XL 8 mm proximity probe configured with M10 x 1 metric thread, 50 mm unthreaded length, 100 mm overall case length, a 1.0-meter total length, and a FluidLoc cable with miniature ClickLoc connector and CSA/ATEX/IECEx hazardous area approvals. This configuration does not include a stainless steel protective armor jacket on the cable.
Unlike standard coaxial cables, the FluidLoc cable option (Option 12) features specialized construction to prevent oil, process liquids, or gases from leaking through the inner core of the cable if the primary probe seal fails. This specific configuration is suited for installations where the transducer must pass through pressurized or oil-filled barriers without introducing leakage paths. The unarmored design facilitates flexible routing within tight conduits or dry spaces. The probe operates as an eddy-current sensor, translating physical distance to a target into a proportional electrical signal when paired with a matching 3300 XL Proximitor sensor and extension cable.
| Option / Segment | Code on This SKU | Meaning / Configuration Detail |
|---|---|---|
| Base Model | 330103 | 3300 XL 8 mm Proximity Probe, M10 x 1 thread, without armor |
| A - Unthreaded Length Option | 05 | 50 mm unthreaded length |
| B - Overall Case Length Option | 10 | 100 mm overall case length |
| C - Total Length Option | 10 | 1.0 meter (3.3 feet) total probe length |
| D - Connector and Cable Option | 12 | Miniature coaxial ClickLoc connector, FluidLoc cable |
| E - Agency Approval Option | 05 | CSA, ATEX, IECEx hazardous area approvals |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 330103-05-10-10-12-05 |
| Sensor Tip Diameter | 8.0 mm (0.31 in) |
| Thread Size | M10 x 1 metric thread |
| Armor Option | Without armor |
| Unthreaded Length | 50 mm |
| Case Length | 100 mm |
| Cable Type | FluidLoc 75 Ohm triaxial, FEP insulated, liquid-blocking inner core |
| Total Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial male ClickLoc connector |
| Operating Temperature | -52 degC to +177 degC (-62 degF to +350 degF) |
| Pressure Sealing Limit | Designed to seal differential pressure between tip and case (Viton O-ring) |
| Tensile Strength | 330 N (75 lbf) probe case to lead maximum; 270 N (60 lbf) at lead to extension cable |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Dimensions | 150 mm x 150 mm x 30 mm (H x W x D) |
| Weight | 0.11 kg |
Ensure that the mounting bracket supports the M10 x 1 threaded body securely. Maintain an unthreaded probe length that avoids mechanical interference with the target material while providing proper support. The probe case thread has a maximum torque limit of 7.5 N-m (66 in-lbf). Verify that the minimum bend radius of 25.4 mm (1.0 in) is not breached when routing the FluidLoc cable. Do not overtighten coaxial connectors; finger-tighten the gold ClickLoc connectors until they lock into position.
