Manufacturer: Bently Nevada
Product No.: 330851-02-000-060-50-00-05
Country of origin:United States
Product Type: 3300 XL 25 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 350g
Dimensions: 70 mm x 120 mm x 120 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

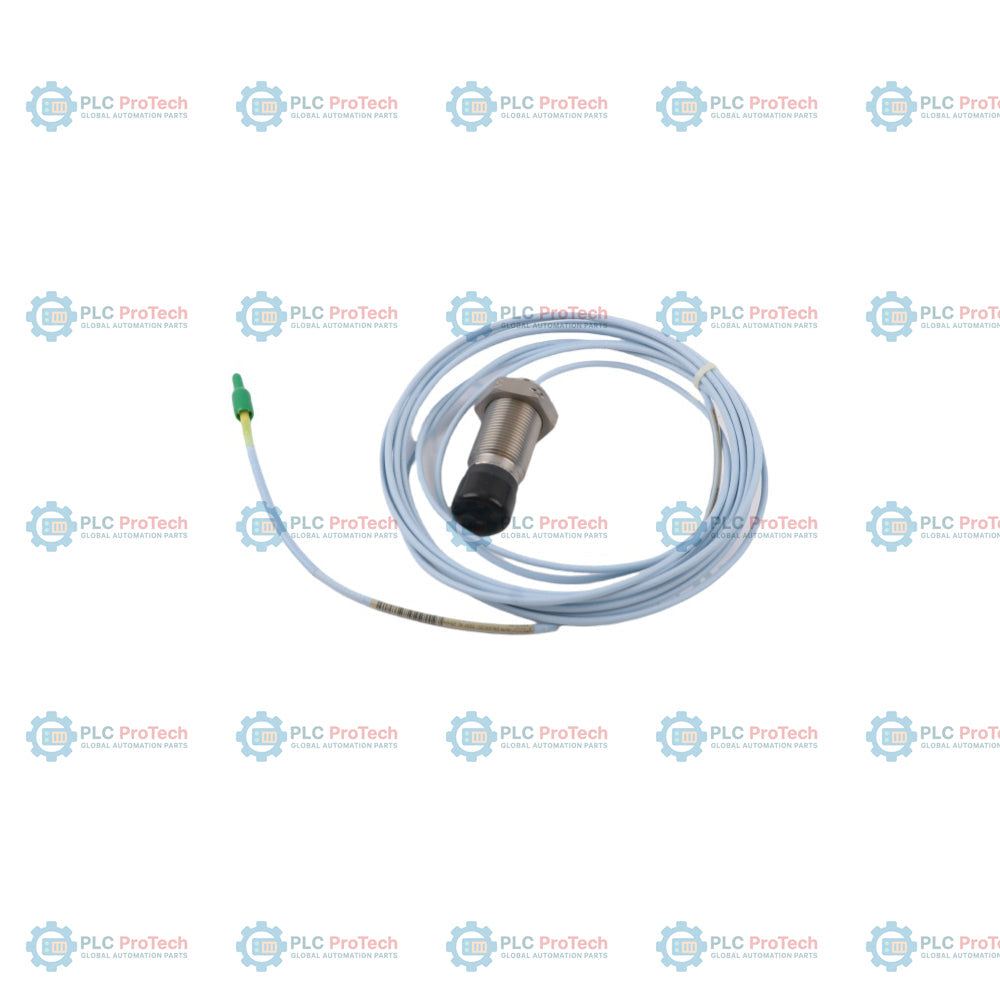

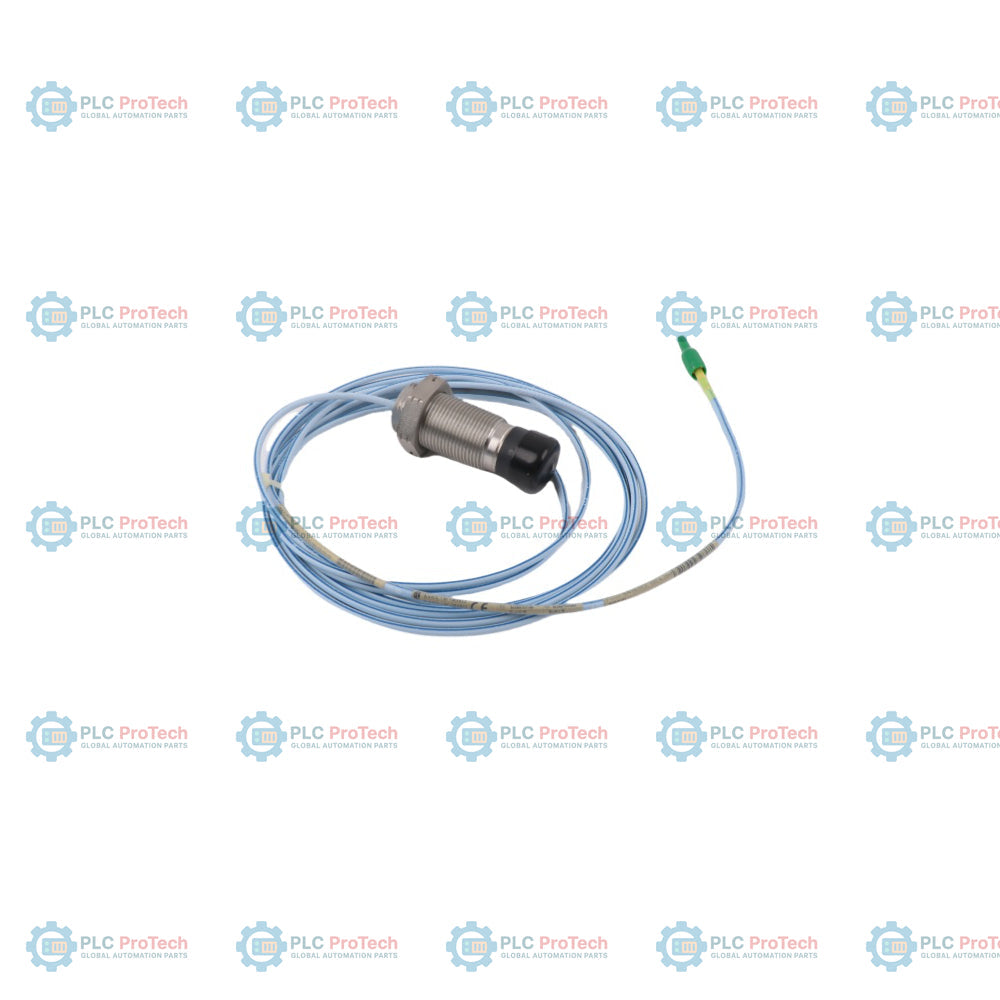

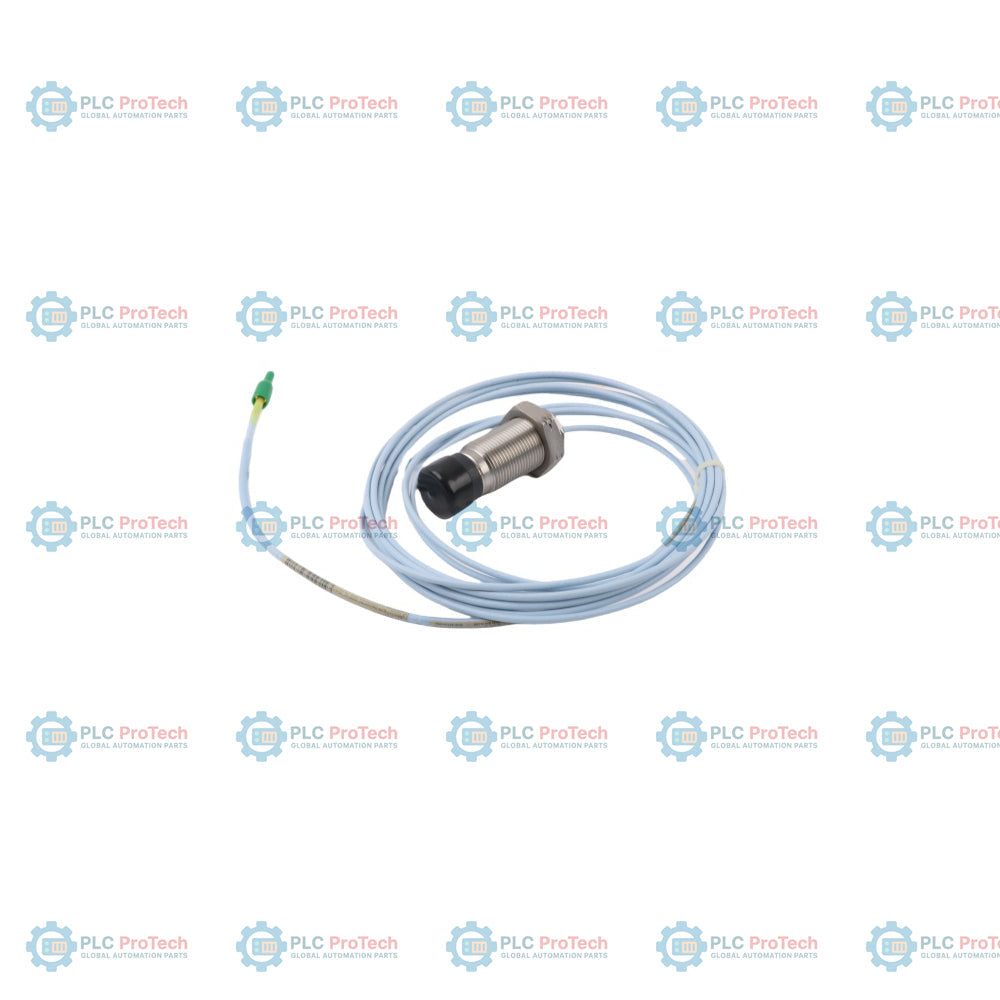

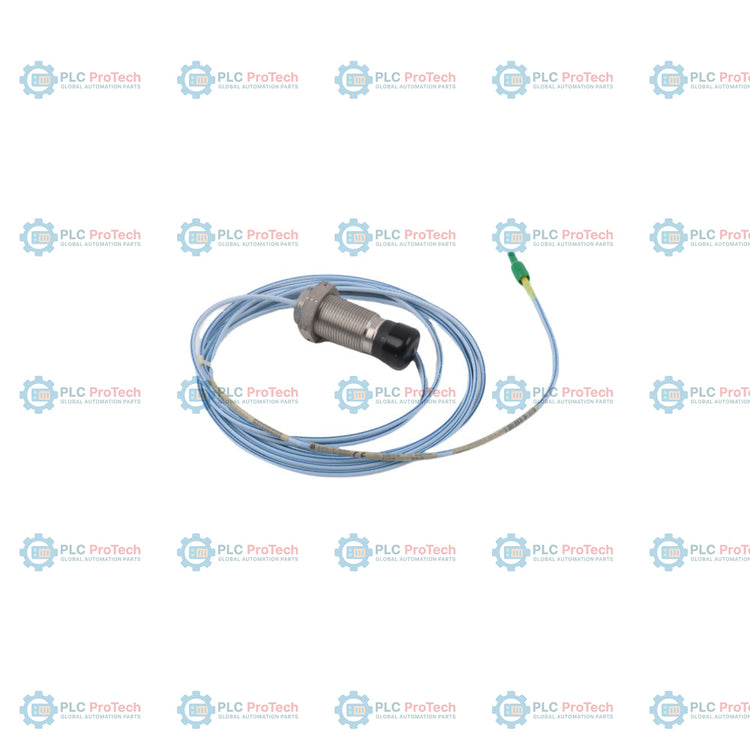

330851-02-000-060-50-00-05: 3300 XL 25 mm proximity probe with M30x2 metric thread (Option 02), 0.0 mm unthreaded length (Option 000), 60 mm overall case length (Option 060), 5.0 metres total length (Option 50), non-armored FluidLoc cable (Option 00), and multiple approvals (Option 05).
This metric threaded eddy-current sensor is part of the 3300 XL 25 mm Proximity Transducer System and measures large-target physical displacement on rotating machinery. Unlike English 1-1/2-12 thread variants (Option 01), this probe is configured with an M30x2 metric thread case for installation in metric threaded machinery ports. The 25 mm probe tip is double-sealed with both front and rear seals, working in tandem with the perfluoroalkoxyethylene (PFA) insulated FluidLoc coaxial cable to resist moisture, oil, and chemical intrusion. The 5.0-metre system length (Option 50) connects directly to a 5.0-metre Proximitor sensor, eliminating the requirement for an intermediate extension cable in standard installations.
Typical applications include differential expansion (DE) measurements on mid-size to large steam turbine generators, rotor axial position monitoring, thrust position tracking, large shaft target displacement analysis, and industrial machinery protection in hazardous power generation and petrochemical environments.
| Option | Code on This SKU | Description |
|---|---|---|
| Orderable Part Number | 330851-02-000-060-50-00-05 | 3300 XL 25 mm Proximity Probe, M30x2 thread case |
| A - Probe Case Type Option | 02 | M30x2 thread |
| B - Unthreaded Length Option | 000 | 0.0 mm (fully threaded case) |
| C - Overall Case Length Option | 060 | 60 mm overall case length |
| D - Total Length Option | 50 | 5.0 metres (16.4 feet) total system length |
| E - Armor Option | 00 | No Armor |
| F - Agency Approval Option | 05 | Multiple Approvals (including ATEX, IECEx, CSA, NEPSI) |
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 330851-02-000-060-50-00-05 |
| Transducer Type | 3300 XL 25 mm Proximity Probe |
| Linear Measurement Range | 12.7 mm (500 mils), beginning at approximately 0.63 mm (25 mils) from target |
| Nominal Output Sensitivity | 0.787 V/mm (20 mV/mil) Average Scale Factor (ASF) |
| Deviation from Best Fit Straight Line (DSL) | Less than +/-0.31 mm (+/-12 mils) under standard temperature range |
| Frequency Response | 0 to 2.7 kHz (+0, -3 dB typical) |
| Recommended Minimum Target Size | 61 mm (2.4 in) diameter flat target |
| Probe Tip Material | Polyetheretherketone (PEEK) |
| Probe Case Material | AISI 304 stainless steel (SST) |
| Locknut Hex Wrench Size | 27 mm wrench flats (supplied with M30x2 thread probe) |
| Cable Type | 75 ohm triaxial, PFA insulated FluidLoc cable |
| Connector Material | Gold-plated brass and gold-plated beryllium copper |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Tensile Strength (Maximum Rated) | 330 N (75 pounds) probe case to probe lead |
| Recommended Locknut Torque | 68 N-m (50 ft-lb) recommended; 163 N-m (120 ft-lb) maximum |
| Connector-to-Connector Torque | Finger tight recommended; 0.565 N-m (5 in-lb) maximum |
| Probe Temperature Range (Operating/Storage) | -35 degC to +200 degC (-31 degF to +392 degF) |
| Short Term Operating Temperature Limit | +250 degC (482 degF) maximum for less than 24 hours |
| Relative Humidity Limits | 100% condensing, non-submersible with protected connectors |
Maintain a minimum bend radius of 25.4 mm (1.0 in) along all sections of the triaxial coaxial cable to prevent electrical degradation. Tighten the metric M30x2 probe case nuts to the recommended installation torque of 68 N-m (50 ft-lb), not exceeding the maximum rated limit of 163 N-m (120 ft-lb). Secure the standard locknut using safety wire through the predrilled safety holes to mitigate loosening under heavy mechanical vibration. Always route the probe leads through dedicated conduits and avoid parallel proximity to high-voltage AC cabling to avoid electromagnetic noise. Apply the supplied fluorosilicone connector protectors during final assembly to shield the ClickLoc connections from process fluids, oil, and humidity.
| Certification Standard | Details and Ratings |
|---|---|
| CE Mark | Complies with European RFI/EMI immunity requirements |
| Intrinsically Safe (Option 05) | ATEX/IECEx Ex ia IIC T5...T1 Ga; Class I Zone 0 AEx/Ex ia IIC T5...T1 Ga |
| Non-Incendive / Division 2 | Class I Division 2 Groups A, B, C, D; Ex nA/ec IIC T5...T1 Gc |
| Regional Certifications | CSA, ATEX, IECEx, NEPSI |
