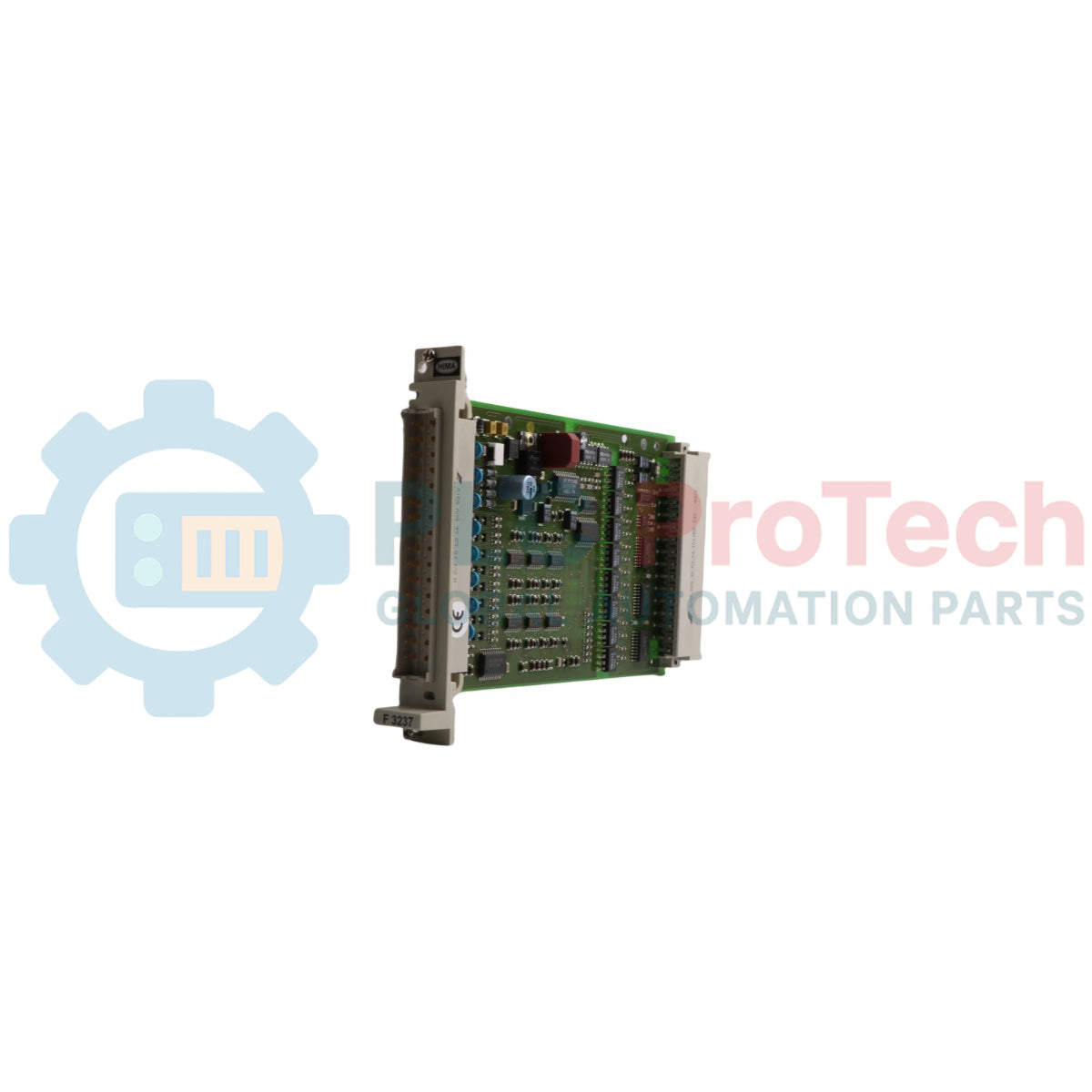

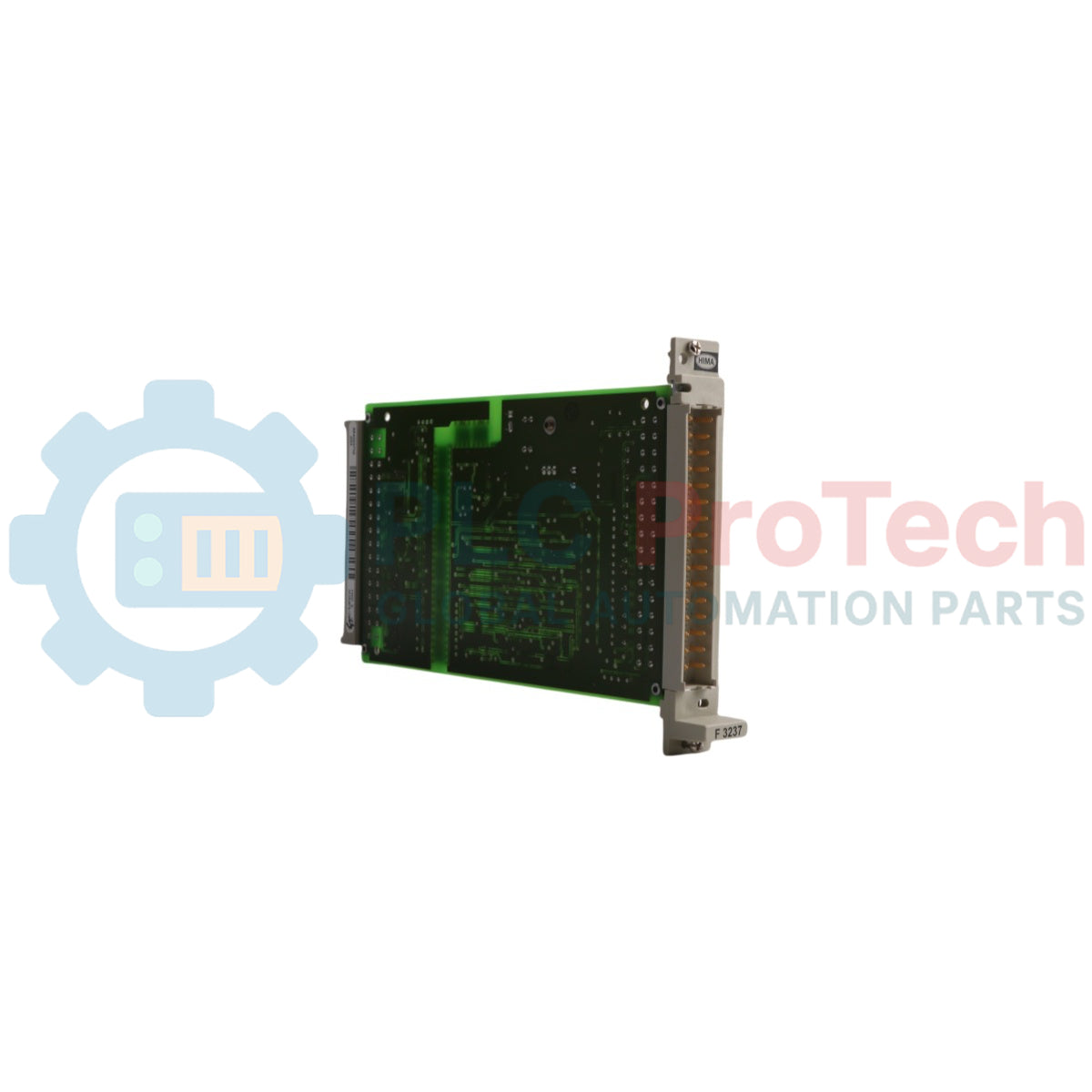

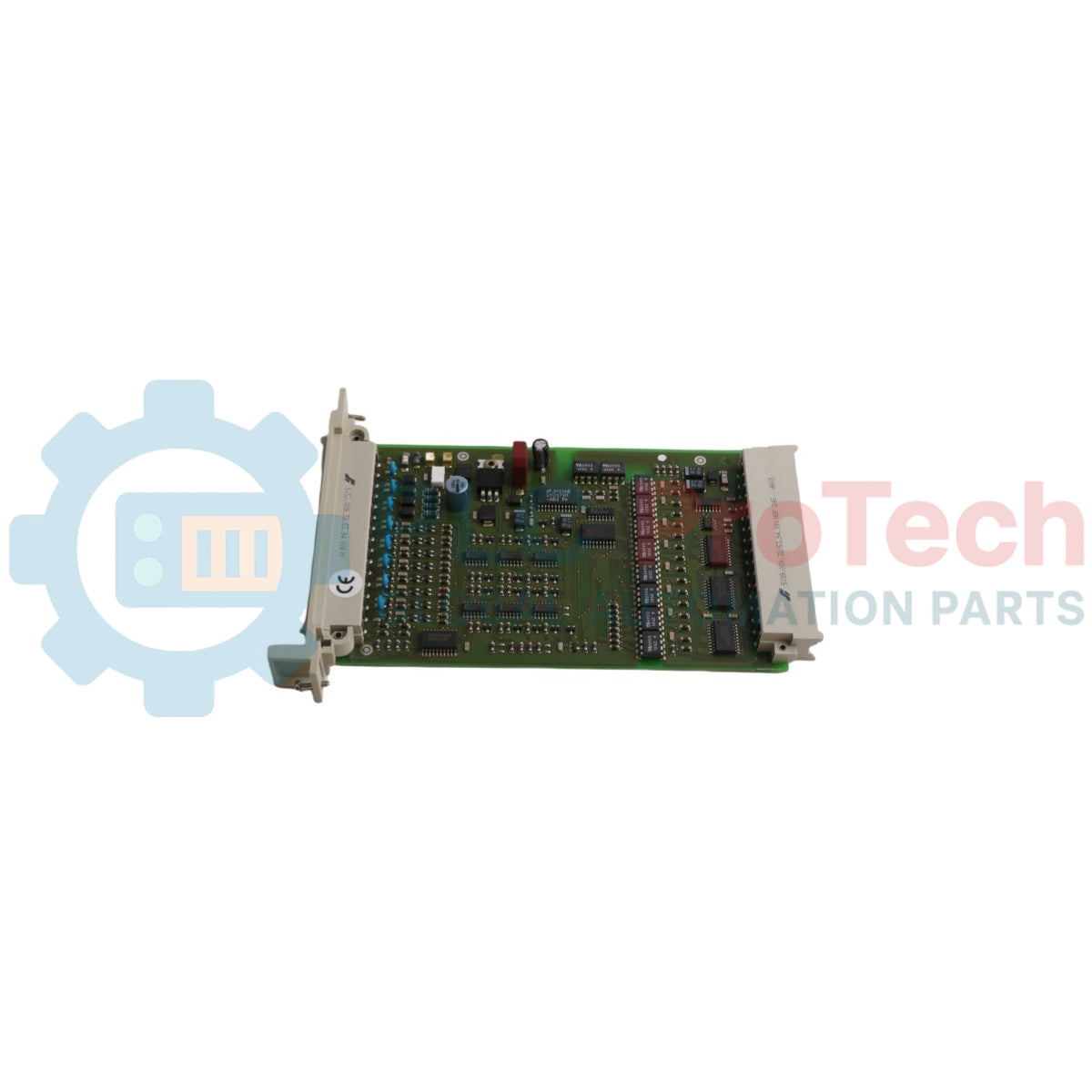

HIMA F 3237 Safety Related 8 Fold Input Module

Q: What parameters are automatically checked during operation for this module?

The module automatically tests its entire operation including switch-on and switch-off capability, crosstalk of input circuits via a walking 0 test, input filter functionality, correct general module operation, and sensor line short-circuits or wire breaks.

Q: How are non-standard proximity switches integrated into the line break supervision system?

For proximity switches outside the DIN 19234 standard that deliver low current in a non-damped state, a 47 kOhm parallel resistor can be switched into the circuit to raise the output current to 170 microamps, ensuring correct line break detection.

Q: What are the line length and impedance constraints for sensor connections?

The maximum permissible line length is 1000 meters for a cable cross-section of 0.5 square millimeters, and the maximum line impedance must be less than or equal to 50 Ohm in compliance with DIN 19234.

SKU F3237

In stock

12-month warranty
Free returns within 30 days

Manufacturer: HIMA
Product No.: F3237
Country of origin:Germany
Product Type: Safety-Related Input Module
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 350g
Dimensions: 20 mm x 130 mm x 250 mm
Shipping port: Xiamen
Warranty: 12 months

Description

The HIMA F 3237 is a safety-related 8-fold input module designed for the connection of safety-related proximity switches, proximity switches complying with DIN 19234 (NAMUR), and resistor-wired sensors. This module provides line monitoring capabilities to detect short-circuits and line breaks in the sensor lines, ensuring safe operation within requirement classes AK 1 to 6. The HIMA F 3237 executes completely automatic test routines during operation, checking parameters such as switch-on and switch-off capability, crosstalk via a walking 0 test, input filter functionality, and overall module operation.

Features

Supports 8 input channels for safety-related sensor applications.
Monitors connecting lines for short-circuit and line break conditions.
Fully automated self-test routines run continuously during operation.
Compatible with standard NAMUR proximity switches and non-standard switches, such as the P&F NJ 5-30GK-S1N, with a parallel resistor modification.
Enables redundant connections for proximity switch circuits.

Applications

Safety-instrumented systems (SIS) in industrial automation.
Proximity sensing and position monitoring in hazardous or critical environments.
Line-monitored sensor interfaces requiring requirement class AK 1 to 6 compliance.

Technical Specifications

Parameter	Value / Specification
Manufacturer	HIMA Paul Hildebrandt GmbH + Co KG
Module Type	8-fold input module, safety-related
Requirement Class	AK 1 ... 6
Switching Time	Approx. 10 ms
Operating Points (IE) – 0 Signal	0.35 <= IE <= 1.2 mA
Operating Points (IE) – 1 Signal	2.1 <= IE <= 6.0 mA
Operating Points (IE) – Wire Break	<= 0.28 mA
Operating Points (IE) – Short Circuit	>= 6.5 mA
Line Impedance	<= 50 Ohm, according to DIN 19234
Line Length	<= 1000 m (O = 0.5 mm2)
Supply Voltage (Us)	8.2 V
Shunt R*	681 Ohm; 1%; 0.25 W (R17 ... R24), part no. 00 0751681
Space Requirement	4 TE
Operating Data	5 V =: 90 mA; 24 V =: 170 mA

Connections and Interfaces

Lead Marking for Cable Plug Z 7108/3237/C..

Channel	Connection Pin	Wire Color
8	d2	WS (White)
7	d4 (x4)	br (Brown)
7	d6	gn (Green)
6	d8 (x8)	ge (Yellow)
5	d10	gr (Grey)
4	d12 (x12)	rs (Pink)
4	d14	bl (Blue)
3	d16 (x12)	rt (Red)
2	d18	SW (Black)
2	d20 (x20)	vio (Violet)
1	d22	ws-br (White-Brown)
1	d24 (x24)	ws-gn (White-Green)
7	d26	ws-ge (White-Yellow)
8	d28 (x28)	ws-gr (White-Grey)
8	d30	ws-rs (White-Pink)
8	d32 (x32)	ws-bl (White-Blue)

Installation Guidelines

Ensure the front cable plug Z 7108 is correctly connected to the module faceplate.
Follow the specified lead mappings and core color coding for the LiYY 16 x 0.25 mm2 cable.
When using proximity switches outside DIN 19234, such as the P&F NJ 5-30GK-S1N, connect a parallel resistor rated at 47 kOhm, 0.25 W, and 5%.
For redundant configurations, follow the specified dual-module channel wiring arrangement.

Compliance and Certifications

DIN 19234 (NAMUR)
TÜV
CE

FAQ

What parameters are automatically checked during operation for this module?

The module automatically tests its entire operation including switch-on and switch-off capability, crosstalk of input circuits via a walking 0 test, input filter functionality, correct general module operation, and sensor line short-circuits or wire breaks.

How are non-standard proximity switches integrated into the line break supervision system?

For proximity switches outside the DIN 19234 standard that deliver low current in a non-damped state, a 47 kOhm parallel resistor can be switched into the circuit to raise the output current to 170 microamps, ensuring correct line break detection.

What are the line length and impedance constraints for sensor connections?

The maximum permissible line length is 1000 meters for a cable cross-section of 0.5 square millimeters, and the maximum line impedance must be less than or equal to 50 Ohm in compliance with DIN 19234.
