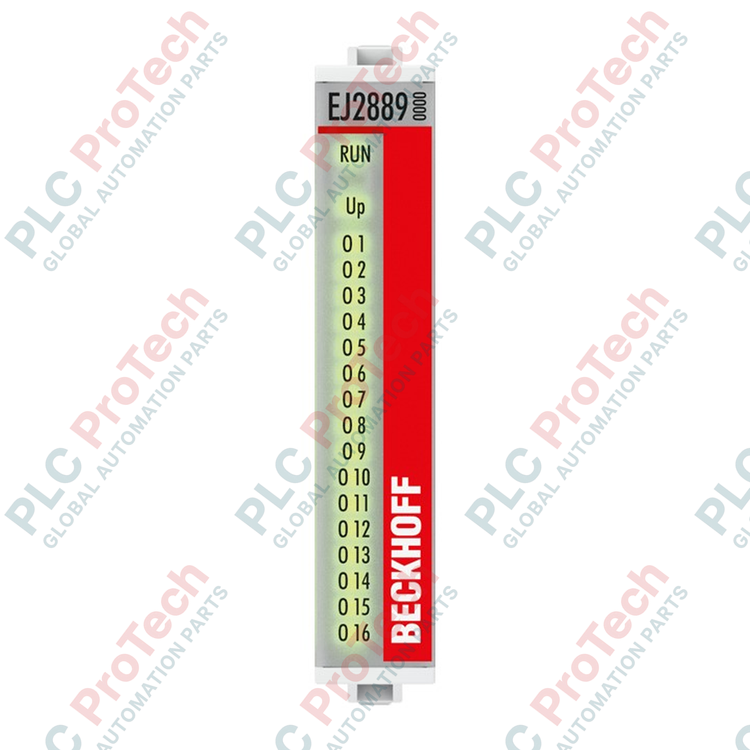

BECKHOFF EJ2889 Module enfichable EtherCAT sortie numérique 16 canaux

Product Overview

The EJ2889 (EJ2889) is a high-density EtherCAT plug-in module designed for large-scale industrial automation environments requiring precise ground-switching capabilities. As part of the Beckhoff EJ series, this 16-channel digital output module is engineered to bridge the gap between high-performance IPC control and modular signal distribution. By utilizing the EtherCAT protocol, it ensures microsecond-level synchronization, making it indispensable for high-speed packaging lines, semiconductor manufacturing, and complex assembly cells. Its compact form factor significantly reduces cabinet footprint while the short-circuit proof design ensures maximum system uptime in 24 VDC power distribution networks.

Hardware Architecture and Functional Logic

The EJ2889 distinguishes itself through its unique ground switching (0 V DC) logic, which is essential for specific electronic loads and sensor types that require a common return path to be toggled. Unlike standard sourcing outputs, the EJ2889 switches the negative potential, providing a robust solution for diverse load types including ohmic, inductive, and lamp loads.

The module is integrated into the E-bus communication segment, drawing a typical 130 mA for internal logic while maintaining 500 V electrical isolation between the field potential and the E-bus. This galvanic isolation protects sensitive upstream PLC components from field-side electrical interference. With switching times as fast as 50 microseconds (TON), it is optimized for high-frequency triggering applications where traditional relay-based systems would fail due to latency and mechanical wear.

Technical Specifications

Technical FAQs

How does ground switching in the EJ2889 differ from standard digital outputs?

Standard outputs (sourcing) switch the +24 VDC line to the load. The EJ2889 switches the 0 VDC (Ground) line. This is critical for controlling specific electronic circuits or legacy hardware that utilizes a constant positive rail and requires a switched ground to complete the circuit.

Is the EJ2889 compatible with inductive loads like solenoids?

Yes. The module is rated for inductive loads with an integrated breaking energy capacity of < 100 mJ per channel. However, for high-frequency inductive switching, ensure the flyback energy does not exceed this limit to prevent thermal stress.

What happens during an output short-circuit event?

The EJ2889 features built-in short-circuit protection. If a fault is detected, the current is limited (typically < 7 A) to prevent damage to the internal trace and the connected load, automatically recovering once the fault condition is cleared.

Installation & Wiring Guidelines

• Signal Integrity: To minimize Electromagnetic Interference (EMI), ensure that the 24 VDC field supply is adequately decoupled and that the signal cables are routed away from high-voltage AC motor leads.

• Thermal Management: When operating all 16 channels at the maximum 0.5 A load simultaneously, ensure sufficient airflow within the enclosure. The module is rated for -25 to +60 deg C, but maintaining a stable internal cabinet temperature of 40 deg C will significantly extend the component lifecycle.

• Pin Assignment: Double-check the signal mapping on the signal distribution board (Plug-in level). Incorrectly wiring a sourcing load to this ground-switching module will result in a "normally-on" state or potential circuit failure.

Industrial Durability & Performance

The EJ2889 is built for the rigors of the modern factory floor. It conforms to EN 60068-2-6 for vibration resistance and EN 60068-2-27 for shock resistance, making it suitable for mounting directly on moving machine parts or in high-vibration environments like mining crushers or vibrating feeders. Its IP20 rating requires installation in a protected control cabinet, where it leverages the EtherCAT backplane for seamless data cyclic exchange and diagnostic reporting.
