DELTA AHCPU510-EN Module CPU série AH

Product Overview

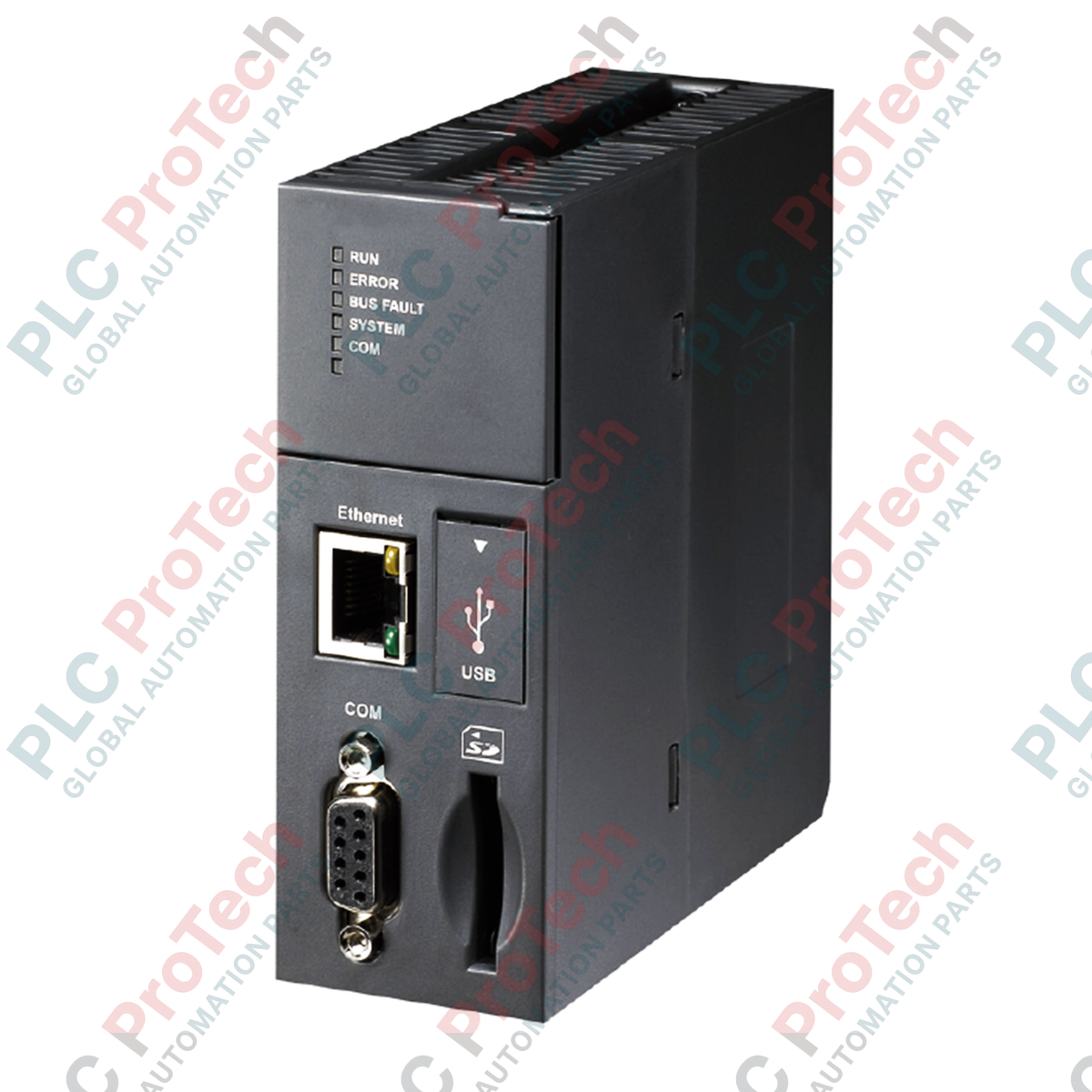

The AHCPU510-EN (AHCPU510EN) is a high-performance central processing unit (CPU) module from the Delta AH series, designed to serve as the brain of large-scale, mission-critical industrial automation systems. With a program capacity of 64K steps (256 KB) and an exceptionally fast execution speed (0.1 microseconds for LD instructions), this module is engineered for high-speed data processing and complex logic control in sectors such as automotive manufacturing, automated assembly lines, and water treatment plants. The AHCPU510-EN integrates seamlessly into the AH series backplane architecture, supporting up to 1,280 local I/O points to minimize system latency and maximize total factory output.

Technical Configuration

The hardware architecture of the AHCPU510-EN is built for maximum connectivity and diagnostic transparency. It features a robust suite of communication interfaces, including a multi-mode RS-232/422/485 port, a high-speed 100 Mbps Ethernet port, and a dedicated mini-USB programming interface. The module supports a variety of industrial programming languages—LD, SFC, FBD, IL, and ST—adhering to IEC 61131-3 standards. Notably, the AHCPU510-EN utilizes flash memory for program storage, eliminating the need for a battery for data retention, while its integrated SD card slot allows for easy data logging and program backups.

Technical Specifications

Frequently Asked Questions

Does the AHCPU510-EN require a battery to retain the program?

No, this module utilizes flash memory for program storage, which ensures the user program remains intact even without power. A real-time clock (RTC) is included, which maintains time for up to 30 days after power-off using built-in capacitors.

What is the benefit of the PLC Link function?

PLC Link allows for automatic data exchange between multiple Delta PLCs over the communication network without requiring explicit programming for each data packet, drastically simplifying the synchronization of multi-controller systems.

Can I monitor the PLC remotely?

Yes, the built-in Ethernet port supports WEB server functionality and E-mail alerts, allowing maintenance staff to monitor system status or receive fault notifications remotely via a standard web browser or e-mail client.

Installation and Engineering Recommendations

• Environment and Thermal Management: While the AHCPU510-EN has a very low power consumption of 2 W, it is crucial to ensure it is installed in a clean, dust-free enclosure to prevent conductive particles from settling on the exposed communication ports or backplane connectors.
• Network Security: Given the unit's built-in Ethernet functionality (WEB/E-mail), always utilize the IP Filter function to restrict access to trusted internal machine network devices only. This is a critical security step for any internet-connected industrial automation controller.
• Interrupt Optimization: The controller supports 256 interrupts. For high-speed applications (e.g., high-speed counting or critical external events), map these interrupts carefully to avoid "jitter" in the main scan cycle, which can occur if too many tasks are triggered simultaneously.
