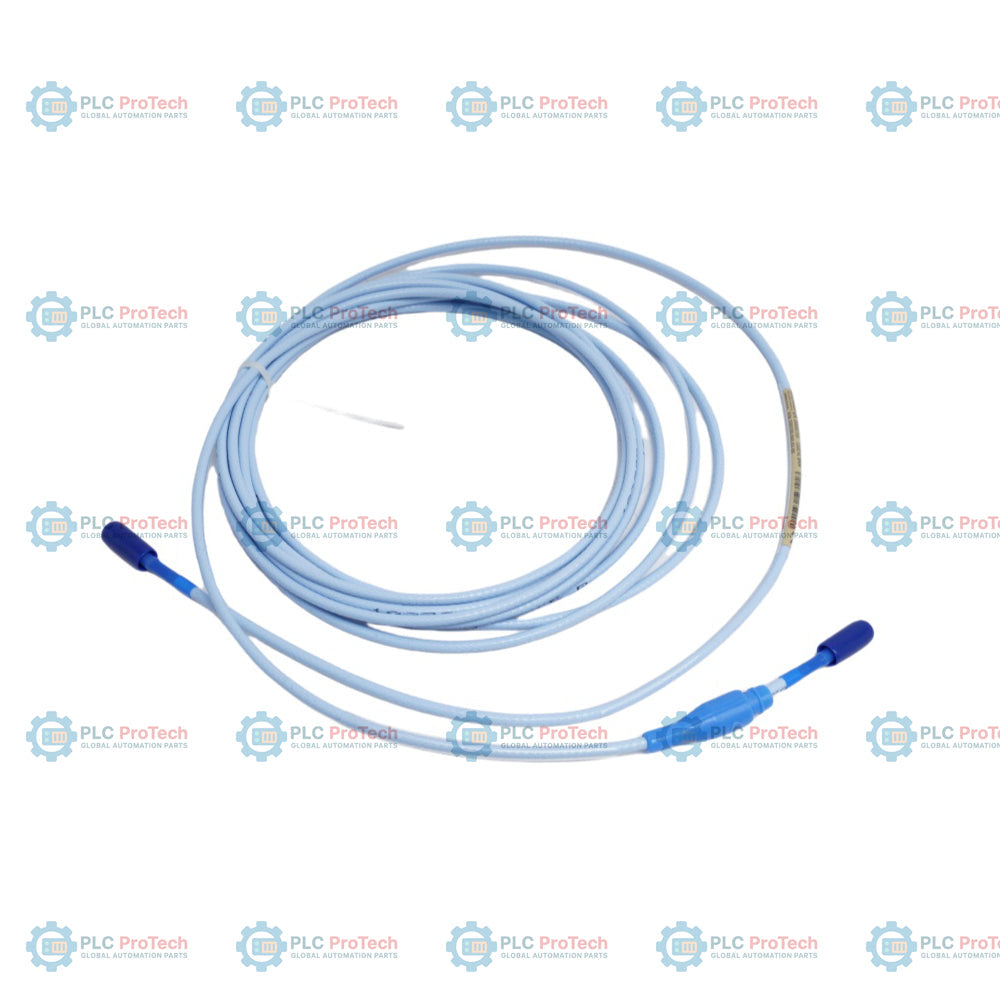

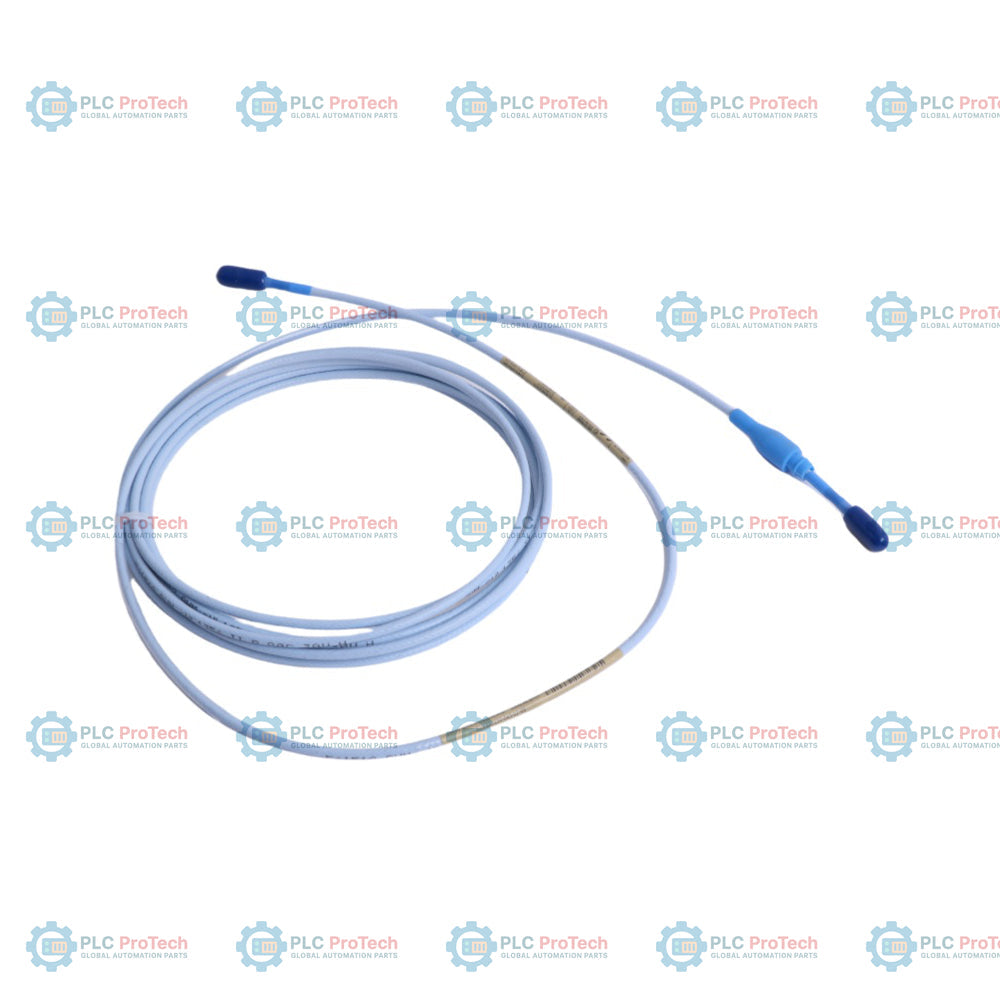

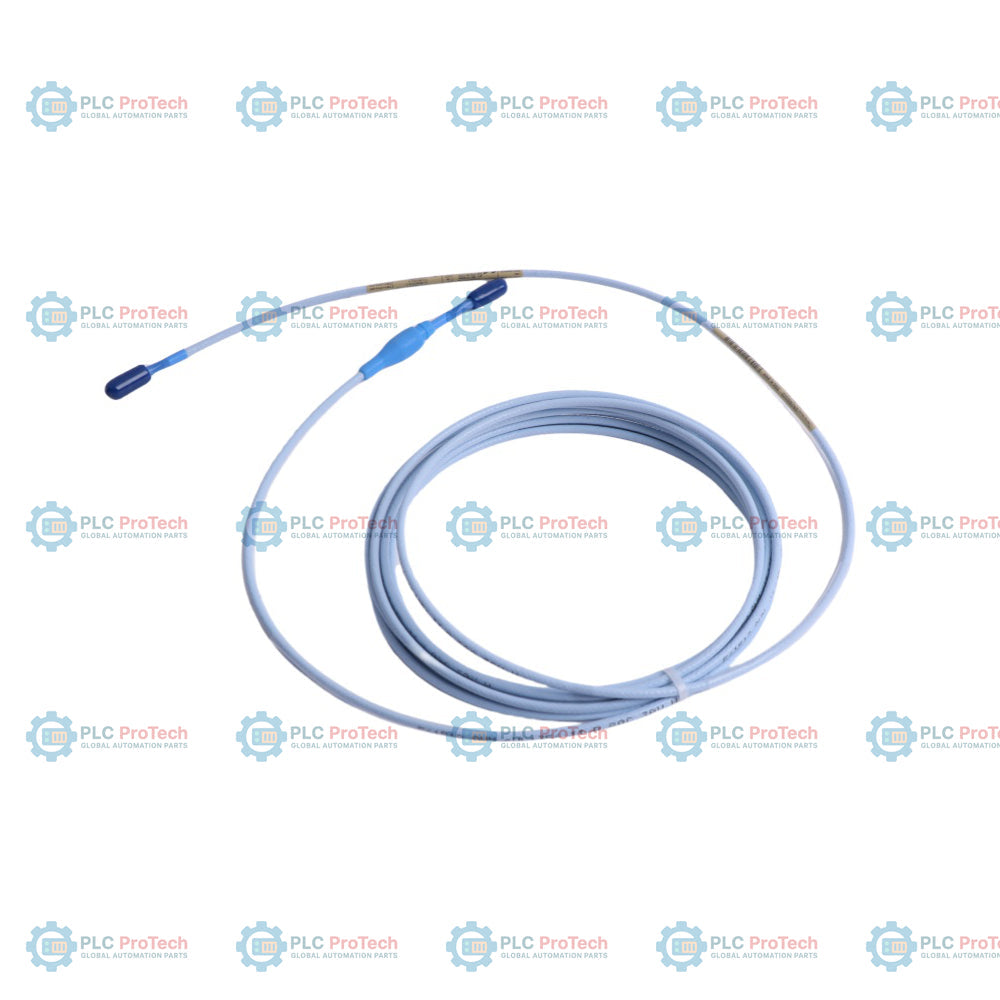

330130-045-02-CN specifies this 4.5-meter 3300 XL standard extension cable configuration, which features standard non-armored coaxial cable with an integrated connector protector and the -CN China hazardous area approval package.
This configuration utilizes Option 045 for a physical length of 4.5 meters (14.8 ft), which connects a 3300 XL 8 mm probe to a compatible Proximitor sensor. Unlike Option 00 (which lacks connector protection) or Option 01 (which features mechanical armor), this Option 02 variant includes a pre-installed coaxial connector protector sleeve to shield gold-plated ClickLoc connections from moisture, lubricants, and debris. The -CN suffix adds official CCC and NEPSI certifications, meeting local safety requirements for hazardous industrial locations in China.
This extension cable is used for machinery shaft vibration, eccentricity, and axial position measurements in Turbine Supervisory Instrumentation (TSI) systems. It connects 3300 XL 8 mm proximity probes to their companion Proximitor sensors on steam turbines, gas turbines, compressors, and high-speed pumps. It is utilized across petrochemical, power generation, and oil and gas industries where localized NEPSI and CCC certifications are mandated in hazardous industrial zones.
| Option / Segment | Code on This SKU | Description |
|---|---|---|
| Base Model | 330130 | 3300 XL Standard Extension Cable |
| A - Cable Length | 045 | 4.5 meters (14.8 feet) |
| B - Connector Protector & Cable | 02 | Standard cable with connector protector |
| Suffix -CN | -CN | China hazardous area approval package (NEPSI + CCC + applicable markings) |
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 330130-045-02-CN |
| System Compatibility | 3300 XL 8 mm Proximity Transducer System |
| Cable Length | 4.5 m (14.8 ft) |
| Cable Type | Standard, non-armored coaxial cable |
| Connector Option | Miniature coaxial ClickLoc connectors with pre-installed connector protector |
| Operating Temperature Range | -52 degC to +177 degC |
| Cable Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Environmental Protection | Connector protector sleeve shielding against moisture and oil contamination |
| Certifications | NEPSI, CCC, CE, RoHS |
| Weight | 0.17 kg |
| Dimensions (H x W x D) | 200 mm x 200 mm x 30 mm (H x W x D) |
Ensure the total physical length of the extension cable combined with the proximity probe matches the required total system length of the Proximitor sensor (e.g., a 0.5-meter probe plus a 4.5-meter extension cable for a 5.0-meter system). Connectors must be kept clean, dry, and free of oil or contaminants before assembly. Ensure the ClickLoc connectors are joined finger-tight; they will "click" to signify a secure connection. Do not use pliers or tools on gold ClickLoc connectors unless mating to a stainless-steel non-XL connector. The pre-installed connector protector sleeve must be slid over the mated connection to provide a proper environmental seal. Maintain the minimum bend radius of 25.4 mm (1.0 inch) during cable routing to prevent damage to the inner coaxial conductor.
This configuration complies with local and international standards for industrial machinery monitoring and explosive atmospheres.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330130-045-02-CN
Country of origin:United States
Product Type: 3300 XL Standard Extension Cable
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 170g
Dimensions: 200 mm x 200 mm x 30 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
